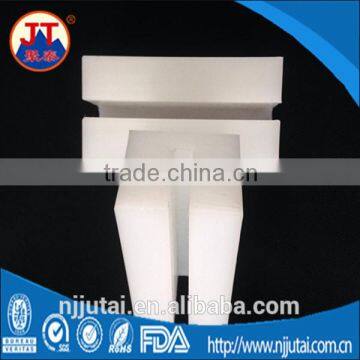

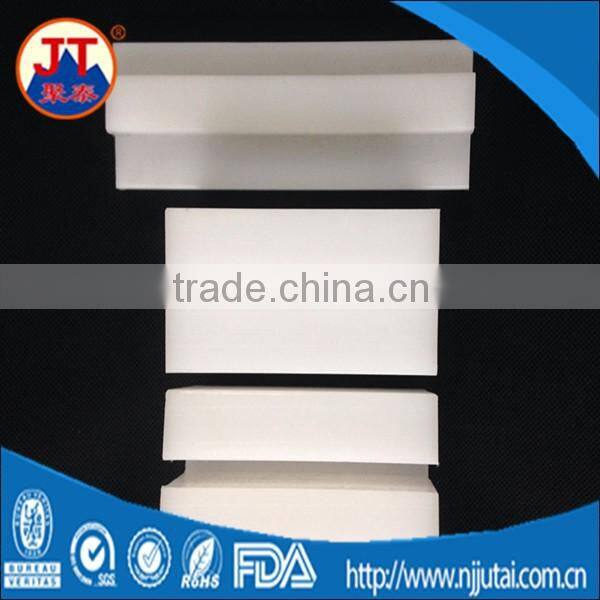

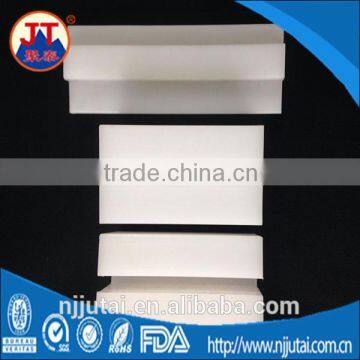

Wear resistant CNC Machining white UHMWPE blocks
Product Description
Features of UHMWPE pad
1.Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. Great liner material for industrial material handling applications
9. UV Resistant/ultraviolet-resistance sheet
10. High Operating Temperature
11. High Tensile Strength
12. High Viscosity
13. Flame Retardant
14. Reprocessed
Application of UHMWPE Pad:
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
rollers, guides, slide blocks, etc.
8. Some kind of rubber fender panels and front face of rubber fender
Standard Sheet Size
1.1020mm*4020mm*(100-250)mm
2.1300mm*6100mm*(8-150)mm
3.1500mm*7100mm*(8-150)mm
4.1220mm*2440mm*(8-150)mm
5.1500mm*6000mm*(8-200)mm
6.2000mm*6000mm*(8-200)mm
7.As per customer's requirements
Type of product molecular weight:
UHMWPE 2million molecule weight
UHMWPE 3million molecule weight
UHMWPE 5million molecule weight
UHMWPE 7million molecule weight
UHMWPE 9million molecule weight
Physical property
Property |
Standard |
Unit |
UHMWPE |
Physical Properties |
|
|
|
Density |
GB1033-86 |
g/cm3 |
0.98 |
Water Absorption |
GB1034-86 |
% |
< 0.01 |
Max Working Temperature |
- |
℃ |
90 |
Minimum Working Temperature |
- |
℃ |
-269 |
Mechanical Properties |
- |
- |
- |
Tensile Strength |
GB1040-79 |
MPa |
21 |
Ultimate Tensile Strength |
GB1040-79 |
MPa |
38 |
Elongation |
GB1040-79 |
% |
12 |
Break Elongation |
GB1040-79 |
% |
340 |
E-Modulus |
GB1040-79 |
MPa |
820 |
Notched Impact Strength |
GB1843-80 |
KJ/m2 |
ok |
Bending Strength |
GB9341-88 |
MPa |
26 |
Bending E-Modulus |
GB9341--88 |
MPa |
760 |
Compression Strength (deformation 10%) |
GB1041-79 |
MPa |
27 |
Compression E-Modulus |
GB1041-79 |
MPa |
550 |
Shear Strength |
GB1041-79 |
MPa |
33 |
Hadrness |
GB2411-80 |
Shore D |
65 |
Static Coefficient of Friction |
GB10006-88 |
- |
0.07-0.15 |
Dynamic Coefficient Friction |
GB10006-88 |
- |
0.07-0.11 |
Thermal Properties |
- |
- |
- |
Coefficient of Linear Expansion |
GB1036-89 |
℃-1 |
1.5×10-4 |
Coefficient of Heat Conductivity ( 23 ℃ ) |
GB3399-82 |
Cal/cm sec ℃ |
8.5×10-4 |
Special Heat ( 23 ℃) |
GB3399-82 |
Cal/g℃ |
0.44 |
Electrical Properties |
- |
- |
- |
Volume Resistivity |
GB1410-78 |
Ohm cm |
>1015 |
Surface Resistivity |
GB1410-78 |
Ohm |
>1015 |
Dielectric Constant ( 1MHZ ) |
GB1409-78 |
- |
3 |
Dielectric Strength |
GB1408-78 |
Kv/mm |
70 |
ISO9001 Quality Certificate
Other Certificates
Pallet Packing
Wooden box packing
1.We can provide free small sample or receive small quanty sample order.
2.We can produce OEM productions or according to customer's drawing.
3. Warranty is at least 10 -50 years.
Our Factory
Customers factory visiting and meeting
Part view of our various productions
Customer's good comments
Welcome to contact with me for any information.
