Specifications
UHMW PE coal board1.Inflame Retardant
2.Low coefficient of friction
3.impact resistant&water-repellent

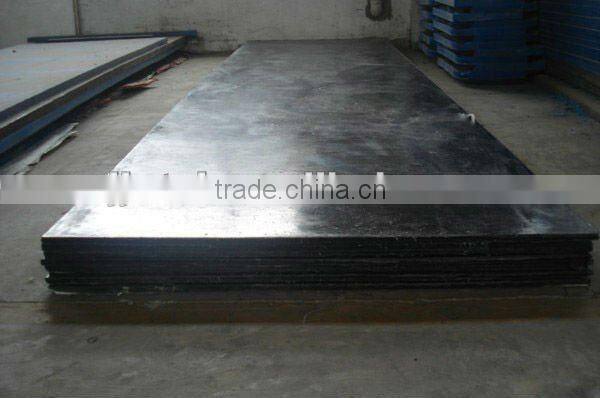

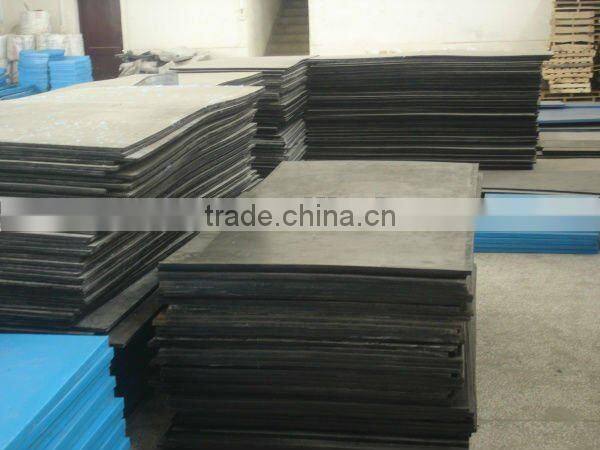

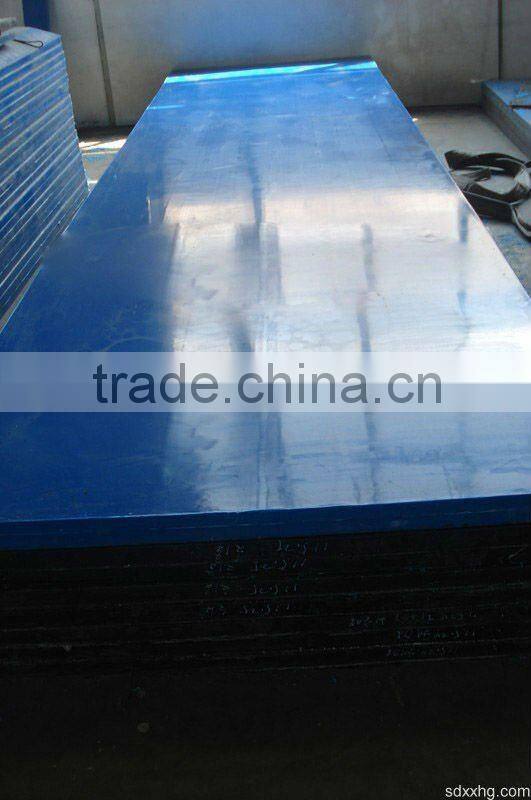

Flame Retardant high quality UHMW PE coal board
Description
UHMW(Ultra high molecular weight) is superior ultra high molecular weight sheet that is extremely tough as well as incredibly abrasion resistant. With very low co-efficient of friction, this material is best used in rough duty applications. As with most plastics, care must be taken when machining to ensure dimensional stability is maintained. Typical applications include; most wear applications, hopper liners, bearings, bushings, pipe saddles, conveyor guides and numerous others. Various modified forms are also used to broaden the scope of applications.
Products range:
UHMWPE plate, UHMWOE bar, UHMWPE PIPE,UHMWPE fender panels, UHMWPE wear resistance liner, UHMWPE special products, nylon, oil contained nylon, HDPE plate, LDPE plate, Engineering plastic alloy.
Benefits:
1. Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. Great liner material for industrial material handling applications
9. UV Resistant/ultraviolet-resistance sheet
10. High Operating Temperature
11. High Tensile Strength
12. High Viscosity
13. Flame Retardant
14. Reprocessed
UHMWPE Typical Properties
Specific Gravity, 73°F |
.944 |
|
Tensile Strength @ Yield, 73°F |
3250 |
psi |
Tensile Modulus of Elasticity, 73°F |
155,900 |
psi |
Tensile Elongation (at break), 73°F |
330 |
% |
Flexural Modulus of Elasticity |
107,900 |
psi |
Compresive Strength at 2% deformation |
400 |
psi |
Compressive Strength 10% Deformation |
1200 |
psi |
Deformation Under Load |
6-8 |
% |
Compressive Modulus of Elasticity, 73°F |
69,650 |
psi |
Hardness, Durometer (Shore "D" scale) |
69 |
|
Izod Impact, Notched @ 73°F |
30 |
ft.lbs./in. of notch |
Coefficient of Friction (Dry vs Steel) Static |
.17 |
|
Coefficient of Friction (Dry vs Steel) Dynamic |
.14 |
|
Sand Wheel Wear/Abrasion Test |
95 |
UHMW=100 |
Coefficient of Linear Thermal Expansion |
11.0 |
in/in/°F x 10-5 |
Melting Point (Crystaline Peak) |
279-289 |
°F |
Volume Resistivity |
>1015 |
ohm-cm |
Surface Resistivity |
>1015 |
ohm-cm |
Water Absorption, Immersion 24 Hours |
Nil |
% |
Water Absorption, Immersion Saturation |
Nil |
% |
Machinability Rating |
5 |
1 = easy, 10 = difficult |
Sheet Thickness Availability (Off the Shelf) |
