30w/40w/50w/60w LED Street Lamp

Name: 30w/40w/50w/60w LED Street Lamp
Brand: 30w/40w/50w/60w LED street lamp
SKU: 102332285

US$ 80 - 500 MOQ: 10 Packs

Key Specifications

LED Light Source:

30w/40w/50w/60w LED street lamp

Input Voltage(V):

30w/40w/50w/60w LED street lamp

Lamp Power(W):

Changzhou Jinuo New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source 30w/40w/50w/60w LED street lamp

Input Voltage(V) 30w/40w/50w/60w LED street lamp

Lamp Power(W) 30

Lamp Luminous Flux(lm) 3900

Lamp Luminous Efficiency(lm/w) 130

Color Temperature(CCT) Cool White

Working Temperature(℃) -45, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP65

Certification EMC, LVD, SASO

Warranty(Year) 3

Place of Origin Jiangsu, China

Brand Name 30w/40w/50w/60w LED street lamp

Model Number 30w/40w/50w/60w LED street lamp

Specifications

30w/40w/50w/60w LED street lamp
LED LAMP is DC output, used for solar, long life and good lum.

30w/40w/50w/60w LED street lamp

54W LED LAMP

Item	LED LAMP
Model No.	JNSL-54W
Input Voltage	12VDC
Power Factor(PF)	0.9
Total Harmonic Distortion ( THD)	20%
Power Efficiency	85%
Working Voltage	12VDC
LED Consumption	54 Watt
LED Luminous Efficiency	≥120-130 Lm/w
LED Initial Flux	2,500lm (Tj=25°C)
LED Maintain Flux	6400lm(Tj=60°C,Ta=25°C)
Lamp’s Flux	6000lm(Tj=60°C,Ta=25°C)
Lamp’s Efficiency (%)	90%

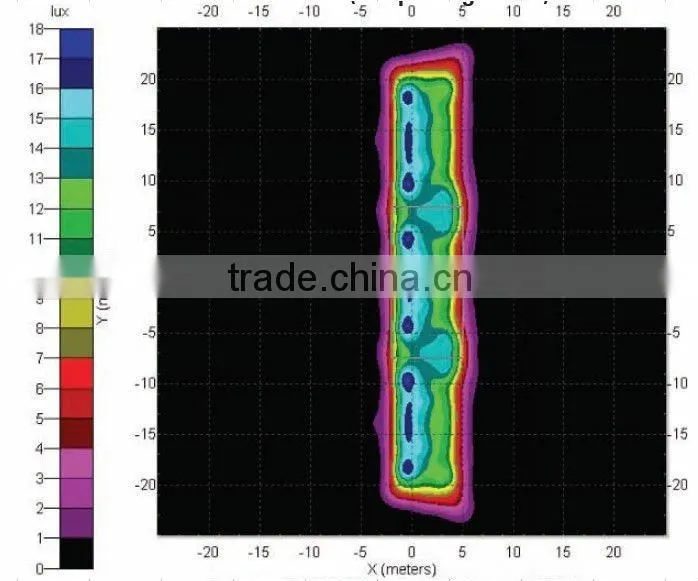

Illumination (E)	(Height=6 m )≥26 lux
Illumination (E)	(Height=8 m ) ≥18 lux
Effective Illuminated Area	20×8 m (Height=6 m )
Effective Illuminated Area	26×10 m (Height=8 m )
Color Temperature	Pure White: 5,000~7,000K; Warm White :3,000~4,000K
Light Source	LED Emitter (1Watt)

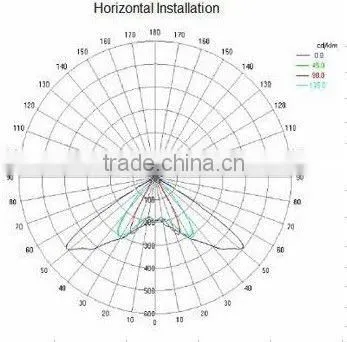

Light Distribution Curve/Beam Pattern	Asymmetric (Bat Wing)/ Rectangular Beam
The Highest Light Intensity Angle	120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, The Vertical Axis:45°
Beam Angle	120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, °The Vertical Axis:45°
Junction Temperature(Tj)	60 °C ±10 %( Ta=25°C)
System Resistance (Rja)	0.19°C/W
Working Temperature	-30 ~ 50
Working Humidity	10%~90%
Storage Temperature	10 ~85
Working Life	50,000 Hrs
Light Body& Lampshade	Aluminum Alloy and PC
The Dimensions(Units:mm)	57423755mm
Net Weight	8.5 Kg's
IP Rating	IP65
Packing	1 pc /Carton
