FEATURES
Low EMI Design: Decreased harmonic pollution to power grid largely, improved performance and stability of induction sealing machine itself and protected other equipments works well
Anti-Electrical-Surge Design: When machine power on, current will rise to rated value slowly, no hard shock to power grid, at the same time, to meet its high-power requirement
Anticorrosion Design of main machine: Stainless steel 304 cover, component circuit are isolated with cooling air passage (The upper layer is electric components circuit, it is hermetic, the lower layer is cooling air passage), effective on anticorrosion of electric components by corrosive gas, so it can increase machine’s reliability and working life, especially suitable for pesticide factory high corrosion area using.
Special Designed Heating Head: electromagnetism output stable and homogeneous, high efficiency. appearance and color is deep blue, any qualified heating head with deep blue color in future can work with main machine reliable, strong compatibility
Output voltage stable: When power supply fluctuate or load change strong, system will automatic stabilize output voltage of heating head, it won’t be too high and too low or suddenly high and suddenly low, ensure sealing results are uniform, avoid undesirable bottle sealing.
Stability and Reliability: It has special designed self-diagnostic and self-protection system, when over heat, over load, water shortage or power supply abnormal, it can self-protection timely, at the same time, offer sound-light alarm, so easy to know fault position accurately and help user check and trouble-shooting.
Human Operation Panel: Fully digital control, including memory function when power failed, digital display, light press operation panel, operation is simple and convenient
Water Tank: It is used to offer circulating cooling water, real-time monitoring water-flow and water temperature, digital display water flow capacity and water temperature alternatively and alarm on fault (Water shortage or over heat) and self-diagnostic, ensure main machine and heating head working secular stability.

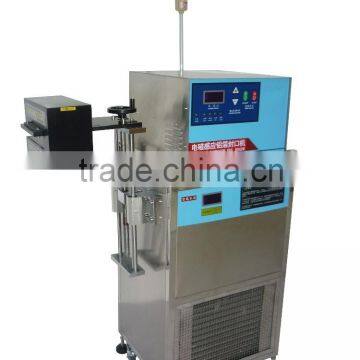

Newly designed the best combination property water cooling induction sealing machine in 2011, it overcome sealing bottle diameter problems, which small bottle mouth and big bottle mouth cannot be compatible in one machine, running stable and suitable sealing requirements in different sized enterprises.
SPECIFICATION
Model No.: ISM-1
Cooling Type: High speed water cooling
Power Supply: AC220V+/-10%; 50/60Hz; 1P
Output Power: Max. 4000W (Adjustable)
Sealing Bottle Mouth Diameter: Φ10mm~Φ60mm; Φ30mm~Φ75mm; Φ60mm~Φ140mm; withinΦ300mm custom made
Sealing Speed: 50-750bottles/min.
Height of Heating Head to floor: 760mm-1260mm
Net Weight: 76kg
APPLICATION
Used to seal bottle and suitable for complicated-shape bottle sealing too.
Woode Case, shipment by sea or by air
How to install new machine?
(a) Most of our machines don’t need our engineer to visit customer’s factor to install, under this circumstance, just refer our user manual to install machines; if you have any questions, you can consult with our professional engineer and they will give you instructions to guide you how to do via pictures, videos etc.
(b) For some complicated machinery, customer can arrange their engineer to come to our factory for training before we delivery machines; if do need, our engineer also can go to your factory to install it, but you have to bear all the travel costs including board and lodging costs , round-way air tickets and Daily labor costs
How to offer maintenance for old machine?
(a) If old machines have any problem, customer can describe this problem to us via email; In order to avoid false understanding problem, we advise you offer us pictures and videos to show us real problems occurred; under this circumstance, we can easy to judge the problem and advise you how to solve. If need replace parts, your engineer should obey our instruction to change it.
(b) If your engineer has no this ability to repair the machine, you can also delivery the machine back to us for repair or request our engineer go to your factory to solve it; All repair costs occur should be paid by buyer.
(c) Maybe in your regions, we have local agent who can offer service to you; we can introduce you to them, if you need this local service.
Shanghai HARVEST Electronics Co., LTD is a professional manufacturer and trading company of Metal Detector, Needle Detector, Check Weigher, Liquid Filling Machine, Screw Capping Machine, Vial Capping Machine, Electromagnetic Induction Sealing Machine, pharmaceutical machines, Separator, Conveyors etc. Our machines worked in more than 30 countries and regions till now and popular in the world on its high stability with super performance of machines. Our professional staff offers good and fast after sales service to ensure machines working well in customer’s factory.
1.How to choose suitable machine?
Considering that machinery are different base on different customer’s requirement, we advise you discuss with our sales engineer firstly, then confirm the order. Our engineer will advise you a suitable machine for your application to avoid wrong machine ordered. If current machine cannot meet your requirements, we will custom made machine for your application.
2. Quality
(a)We offer good quality machinery and it mainly shows in three aspects: (a) Working Life: about 7-8 years; (b) Good Stability: stability is basic and most important performance of machinery; (c) Lower Expenditure of machinery daily maintenance.
(b) All the machines before delivery, our QC will inspect it carefully to ensure good quality.
3. Price
Our machine prices are based on reasonable prices; because we should ensure machine has good quality firstly, so machine parts used are also should be good quality and also very different costs on design & manufacture costs.
4. Warranty Period
(a) 12 (Twelve) months dated from delivery (Consumable parts and man-made broken are not included); If need much longer warranty period, you need buy this extra service. During warranty period, we offer replaced new parts for free.
(b) Out of warranty period, we will offer spare parts and technical support too and help customer to solve problems; If need replace parts, we will charge parts costs
