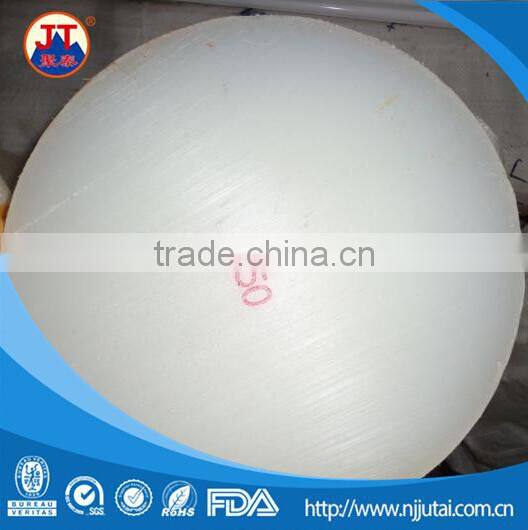

Virgin white 250mm diameter stock HDPE rod
Features of PE Rod
1.Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. Great liner material for industrial material handling applications
9. UV Resistant/ultraviolet-resistance sheet
10. High Operating Temperature
11. High Tensile Strength
12. High Viscosity
13. Flame Retardant
14. Reprocessed
Application of PE Rod
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
rollers, guides, slide blocks, etc.
8. Some kind of rubber fender panels and front face of rubber fender
Standard Rod Size
1.Dia 10-490mm* length 1000mm
5.As per customer's requirements
Physical property
Property |
Standard |
Unit |
HDPE |
Physical Property |
- |
- |
- |
Density |
GB1033-86 |
g/cm3 |
0.96 |
Water absorption |
GB1034-86 |
% |
< 0.01 |
Max temperature |
- |
- |
- |
Max temperature |
- |
℃ |
80 |
Minimum temperature |
- |
℃ |
-260 |
Mechanical capacity |
- |
- |
- |
Elongation |
GB1040-79 |
MPa |
18 |
Ultimate tensile strength |
GB1040-79 |
MPa |
18 |
Tensile elastic modulus |
GB1040-79 |
% |
8 |
Breaking elongation |
GB1040-79 |
% |
250 |
Tensile elastic modulus |
GB1040-79 |
MPa |
780 |
Impact strength |
GB1843-80 |
KJ/m2 |
Not broken |
Bending strength |
GB9341-88 |
MPa |
22 |
Bending elastic modulus |
GB9341--88 |
MPa |
720 |
Compression strength |
GB1041-79 |
MPa |
25 |
Compression elastic modulus |
GB1041-79 |
MPa |
500 |
Shear strength |
GB1041-79 |
MPa |
30 |
Hardness |
GB2411-80 |
D SHORE D |
34 |
Static coefficient of friction |
GB10006-88 |
- |
0.11-0.23 |
Dynamic coefficient of friction |
GB10006-88 |
- |
0.11-0.17 |
Thermal property |
- |
- |
- |
Coefficient of linear thermal expansion |
GB1036-89 |
℃-1 |
1.5×10-4 |
Thermal conductivity( 23 ℃) |
GB3399-82 |
Cal/cm sec ℃ |
8.5×10-4 |
Specific heat( 23 ℃) |
GB3399-82 |
Cal/g℃ |
0.40 |
ISO9001 Quality Certificate
Other Certificates
Pallet Packing
Wooden box packing
1.We can provide free small sample or receive small quanty sample order.
2.We can produce OEM productions or according to customer's drawing.
3. Warranty is at least 10 -50 years.
Our Factory
Customers factory visiting and meeting
Part view of our various productions
Customer's good comments
Welcome to contact with me for any information.
