Carton Steel AWS E71T-1 Flux Cored Welding Wire / Flux Cored Arc Welding / FCAW
E71T-1 is a kind of gas-shielded flux cored welding wire for low carbon steel and 490Mpa high strength steel. And it is a kind of titania type CO2 gas-shielded flux cored welding wire. Suitable for downland welding and horizontal welding. It has high welding efficiency. The weld metal has been given toughening treatment by microelements. So it has excellent low temperature toughness, good crack-resistance and stable and reliable inherent quality.
Application:
Used for welding structures made of carton steel and low-alloy structural steel with tensile strength higher than or equal to 490Mpa. Most widely used for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels, boilers, petroleum machinery, Chemical machinery, hoisting machinery, etc.
Chemical composition of deposited metal (Shield gas CO2):
C |
Mn |
Si |
P |
S |
0.03 |
1.26 |
0.51 |
0.010 |
0.011 |
Mechanical properties of deposited metal (Shield gas CO2):
Yield Strength Mpa |
Tensile Strength Mpa |
Elongation % |
Impact Value -20℃ |
545 |
572 |
28 |
70 |
E71T-11 is a self-shielding flux cored wire used for welding carbon steels. This product doesnot require a shielding gas and can be used in limited multi-pass welding operations. The bead appearance is not equal to a gas-shielded product, but the benefits of not having to use gas makes this product polular. E71T-11 operates on straight polarity only(DCEN).
Features:
Produce quality welds in moderate wind conditions without any shielding gas.
Fast, sure restarts
Application:
Lap and butt welds on galvanized sheet metal
Repair of automobile sheet metal
Joining of galvanized roofing sheet metal
Chemical Composition of Deposited Metal (%)
C |
Si |
Mn |
S |
P |
Cr |
Ni |
Cu |
Mo |
Al |
≤0.18 |
≤0.60 |
≤1.75 |
≤0.03 |
≤0.03 |
≤0.20 |
≤0.50 |
≤0.35 |
≤0.30 |
≤0.18 |
Mechanical Properties of Deposited Metal(%)
Tensile Strenghth (Mpa) |
Yield Strength (Mpa) |
Elongation Rate (%) |
≥480 |
≥400 |
≥20 |

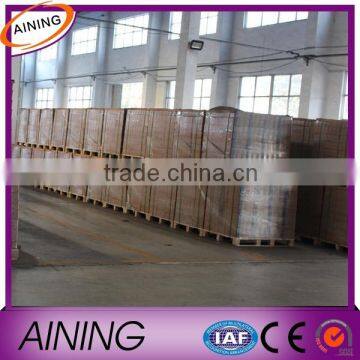

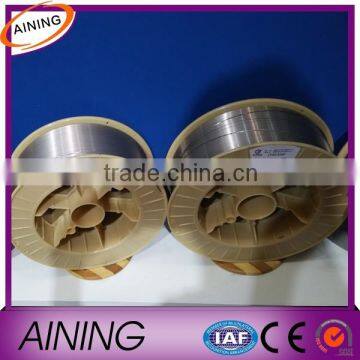

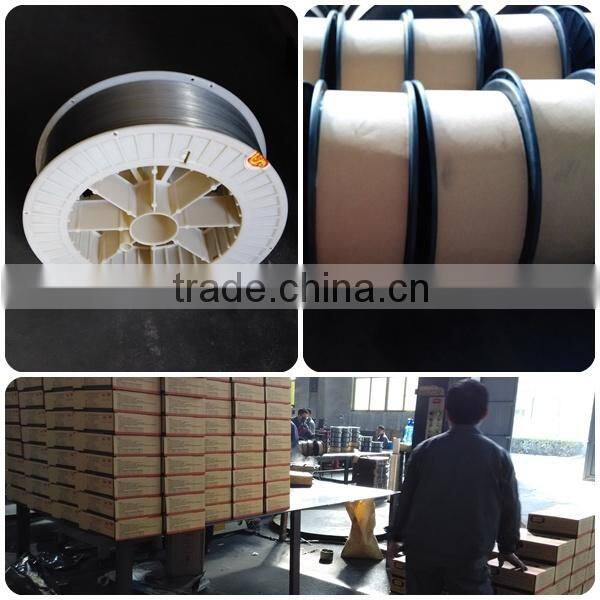

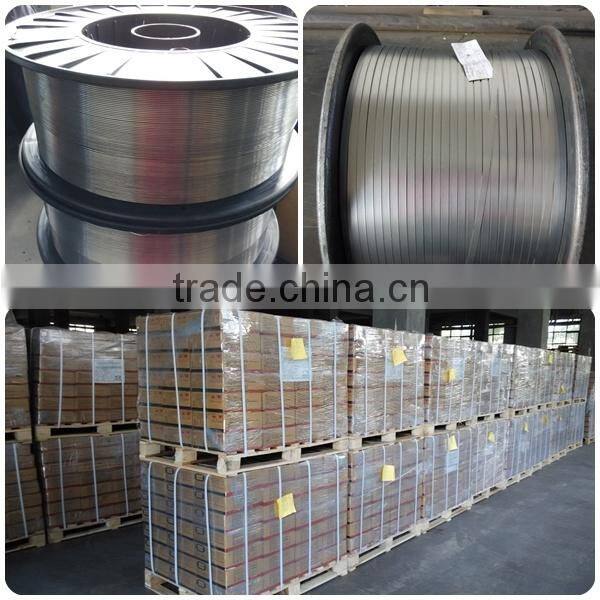

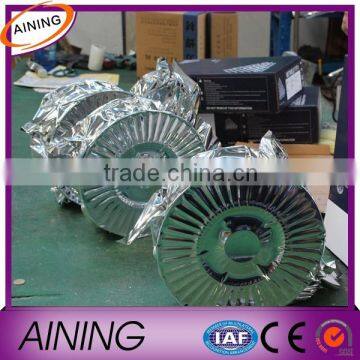

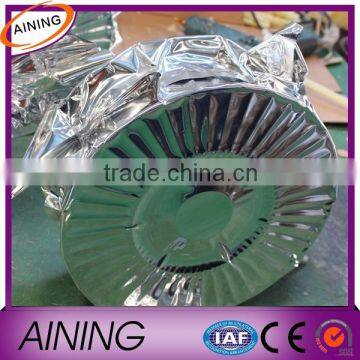

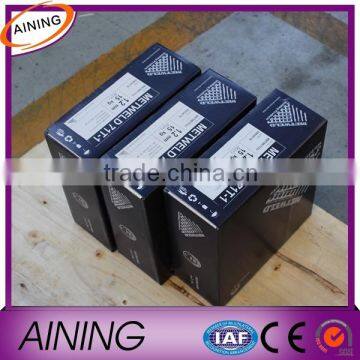

15kg per spool, precision layer wire on the black plastic spool, covered with the wax paper, each spool in ploy bag with silicon gel in the carton, then put on non-wooden pallets.
Shipped on board 20 days after receiving your payment.
1. Used for Welding Sheet Metal in all Positions
2. Used for High Efficiency Welding in all Positions
3. Used for High Efficiency Welding of Ships, Bridges, Vehicles and so on
4. Used in Flat position and Horizontal Fillet welding, it can continuously weld three layers before cleaning slag, it has good performance in anti-blowhole.
5. Used for welding very important low carbon steel and low alloy steel with corresponding strength grade.
Welcome to Visit us
We mainly produce and deal with the products as follows:
Carbon Steel Welding Electrode AWS E6010, E6011, E6012, E6013, E7014, E7015, E7016, E7018 and E7024, Stainless Steel Welding Electrode E308L-16, E309L-16, E316L-16, Cast Iron Electrode. We can satisfy the customers’ need according to each national electric voltage standard.
2.0*300mm, 2.5*300mm,
2.5*350mm, 3.2*350mm,
4.0*400mm, 5.0*400mm.
CO2 Gas Shielded Welding Wire
AWS ER70S-6 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm.
Submerged Arc Welding Wire
EL8, EL12, EM12, EM12K, EH14
Flux Cored Welding Wire:
Mild Steel Flux Cored Wire E71T-1, E71T-11
Low Alloy Steel Flux Cored Wire
Stainless Steel Flux Cored Wire
Hardfacing Flux Cored Wire
Argon Shielded Arc Welding Wire, TIG/MIG Stainless Steel Welding Wire
1. Are samples available?
Answer: We are happy to provide free samples to you after you accept our quotation and really want to cooperate with us.
2. Is OEM available?
Answer: Yes, because we usually do it like that.
3. What is your company normal payment terms?
Answer: Usually we accept T/T, 30% T/T prepaid before production, 70% T/T payment after you see the copy of B/L. If you are one real buyer, we also can accept L/C at sight.
4.What are your company normal export terms?
Answer: We normal export with CFR, CIF and FOB trade terms.
5.How many days it will take you to produce mass production for us?
Answer: Usually it takes about 7-15 days, it also depends on the quantity and production seasons.
Why choose us?
- Professional service for products
- Much more competitive price
- Honest and excellent supplier
- Delivery time is shorter than others.
- We believe the good quality is the basis for cooperation.
- We could provide free samples for test to you.
- Our company policy is Quality First, and to establish Long Time business, not just one time.
