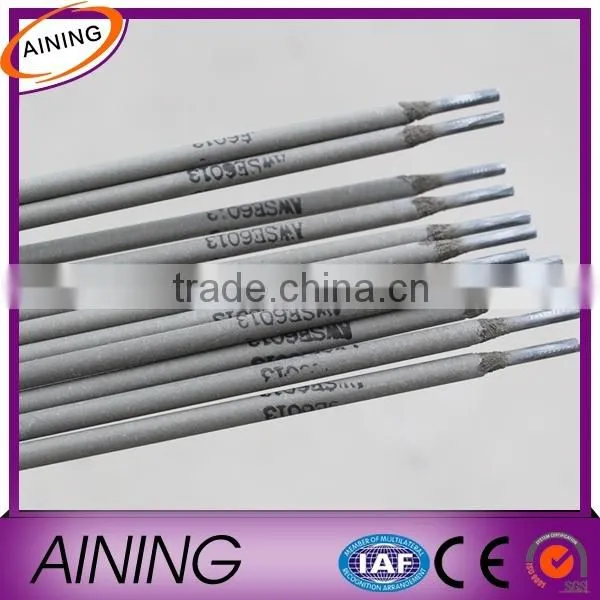

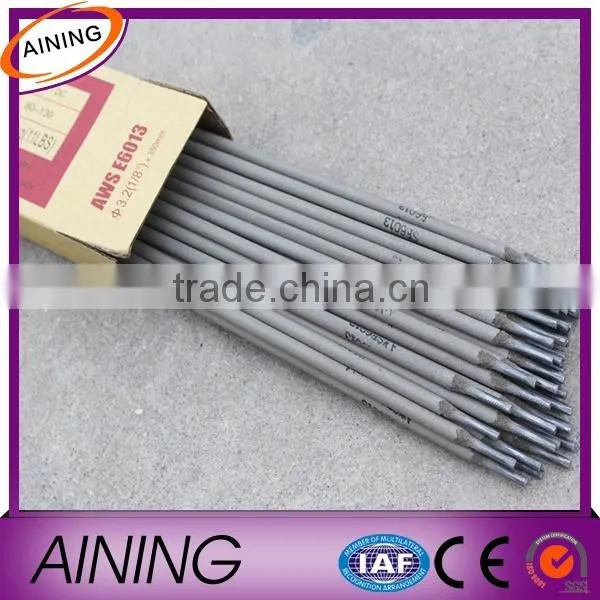

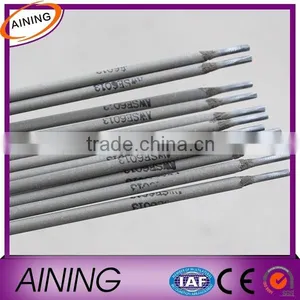

AWS E6013 Welding Electrodes with Carbon Steel Material
The normal sizes: 2.0*300mm, 2.5*300mm, 2.5*350mm, 3.2*350mm, 3.2*400mm, 3.2*450mm, 4.0*400mm, 4.0*450mm, 5.0*400mm, 5.0*450mm.
Welding Rod / Welding Electrode AWS E6013 is a low carton steel electrode with high titanium-potassium type coating, and suitable for both AC and DC. It is able to provide excellent welding technological performance, because the arc is extremely stable, and spatter loss is negligible. The slag has good fluid, and solidified slag is very easy to remove. The manipulate is free, and restrike is easy. It can give smooth and beautiful ripples.
Chemical Composition of Deposited Metal (%):
Chemical Composition |
C |
Mn |
Si |
S |
P |
Guarantee Value |
≤0.12 |
0.3-0.6 |
≤0.35 |
≤0.035 |
≤0.040 |
Mechanical Properties of Deposited Metal:
Test Item |
Rm(Mpa) |
Rel(Mpa) |
A(%) |
KV2(J) |
KV2(J) |
Guarantee Value |
≥420 |
≥330 |
≥17 |
-(normal temperature) |
-(0℃) |
Gegeral Result |
460-540 |
≥340 |
18-26 |
50-80 |
≥47 |
Recommended Welding Currents:
Specification(MM) |
Currents Range (A) |
||
Diameter |
Length |
Flat |
Vertical & Overhead |
2.0 |
300 |
40-60 |
30-55 |
2.5 |
300 |
60-90 |
60-80 |
3.2 |
350 |
90-130 |
80-100 |
4.0 |
400 |
150-200 |
140-170 |
5.0 |
400 |
160-230 |
150-210 |
Usually one 20ft container can load 1250 cartons, 25 MT. If the shipping line agrees, it can be loaded into 1350 cartons, 27 MT. One MT is about 0.6 CBM, one carton is 20kg.

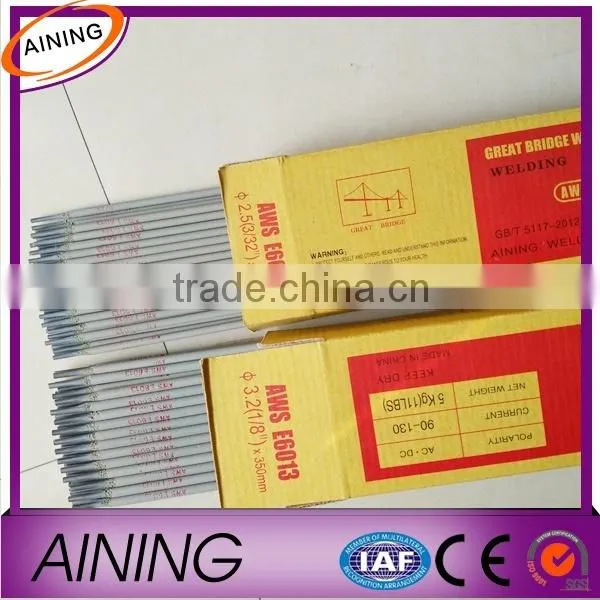

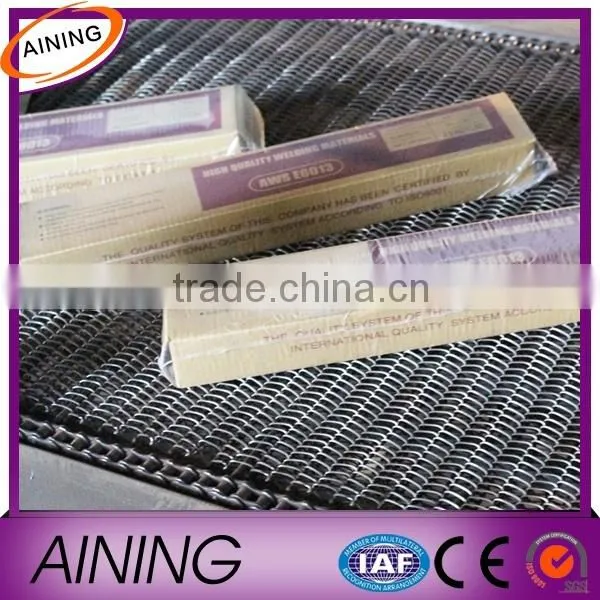

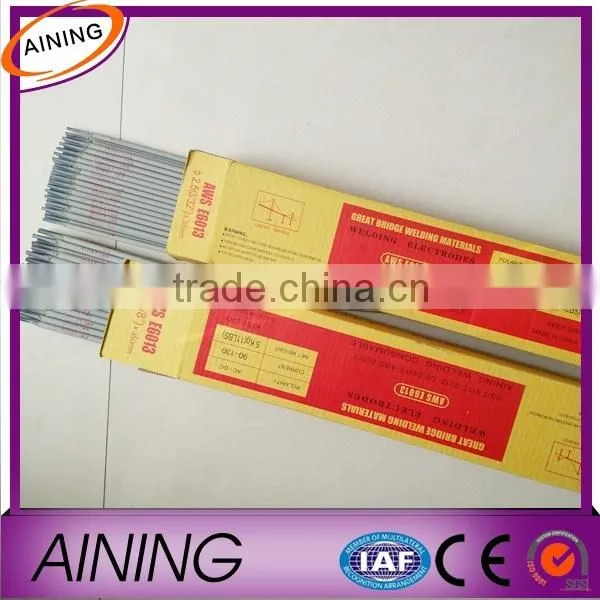

Usually the package is following:
Size: 2.5mm*300mm,
package: 2.5 kg/inner box, 8 boxes/ carton=20kg,
Size: 3.2mm*350mm,
package: 5.0 kg/inner box, 4 boxes/ carton=20kg,
Size: 4.0mm*400mm,
package:5.0 kg/inner box, 4 boxes/ carton=20kg.
Inner box is a shrink-wrapped cardboard box.
Moreover, we can do it on pallets as client’s request: 1MT/ Pallet or 2 MT/ Pallet.
Advantages:
1. Stable arc, less splash
2. Shaped good appearance
3. Easy for removal of slag layer
4. Easy for striking arc and restriking arc.
5. Operable with low amperages on sheet metal
6. Slag control accommodates vertical down welding

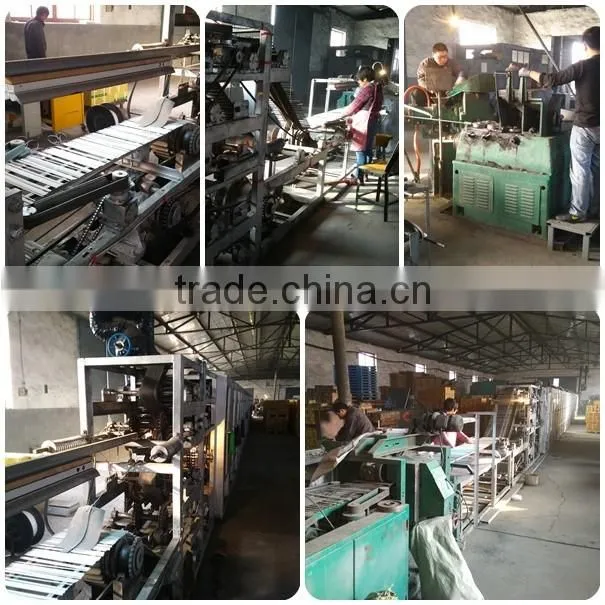

Welcome to Visit Our Factory
We mainly produce and deal with the products as follows:
Carbon Steel Welding Electrode AWS E6013, E7018, E7016, E6010, E6011, Stainless Steel Electrode, Cast Iron Electrode. We can satisfy the customers’ need according to each national electric voltage standard.
2.0*300mm, 2.5*300mm,
2.5*350mm, 3.2*350mm,
3.5*450mm, 4.0*450mm
4.0*400mm, 5.0*400mm.
1. Are samples available?
Answer: We are happy to provide free samples to you after you accept our quotation and really want to cooperate with us.
2. Is OEM available?
Answer: Yes, because we usually do it like that.
3. What is your company normal payment terms?
Answer: Usually we accept T/T, 30% T/T prepaid before production, 70% T/T payment after you see the copy of B/L. If you are one real buyer, we also can accept L/C at sight.
4.What are your company normal export terms?
Answer: We normal export with CFR, CIF and FOB trade terms.
5.How many days it will take you to produce mass production for us?
Answer: Usually it takes about 7-15 days, it also depends on the quantity and production seasons.
Why choose us?
- Professional service for products
- Much more competitive price
- Honest and excellent supplier
- Delivery time is shorter than others.
- We believe the good quality is the basis for cooperation.
- We could provide free samples for test to you.
- Our company policy is Quality First, and to establish Long Time business, not just one time.
