NEMA 1-15 Power Plug ul Cul Certification

NEMA 1-15 power plug ul cul certification

NEMA:  nema 1-15P plug
NEMA: 1-15P

Color: Black/White

Horsepower Rating: 2500W
Electrical Specifications
Grounding: Grounding
Amperage: 15Amp
Voltage: 125 Volt
NEMA:  1-15P
Pole: 2
Wire: 3
Dielectric Voltage: 2500V
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications
Flammability: Rated V-0 per UL94
Operating Temperature: -40C to 60C

Material Specifications
Face Material: Ultramid
Base Material: Valox
Line Contacts: Brass .040 Thick
Terminal Screws: Brass 10-32
Grounding Screw: Brass 8-32
Yoke: Nickel-Plated Brass .050 Thick
Strap Material: Nickel-Plated Brass
Color: Black

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 14-18 AWG
Product ID: Ratings and NEMA I.D. permanently marked on device
Termination: Back & Side
Standards and Certifications:UL498
ANSI:C-73

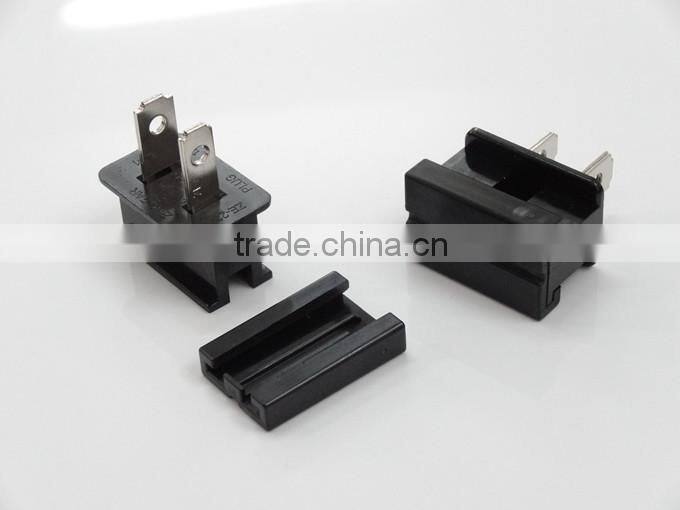

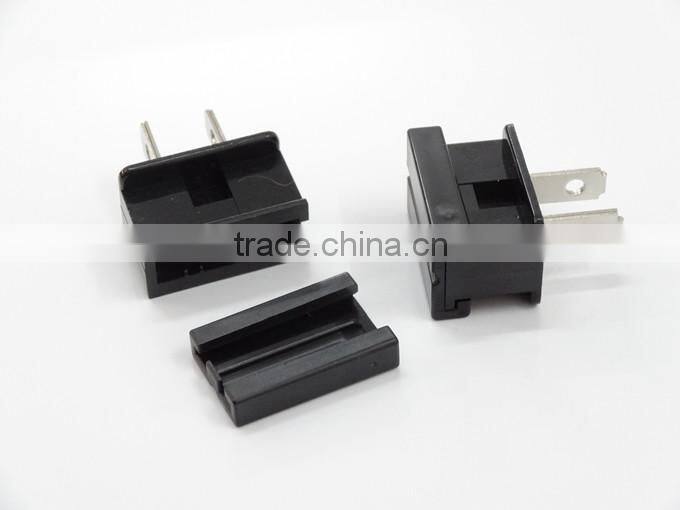

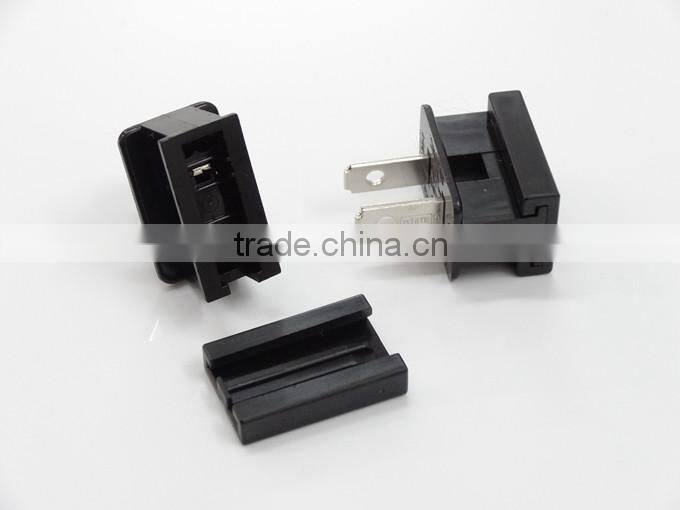

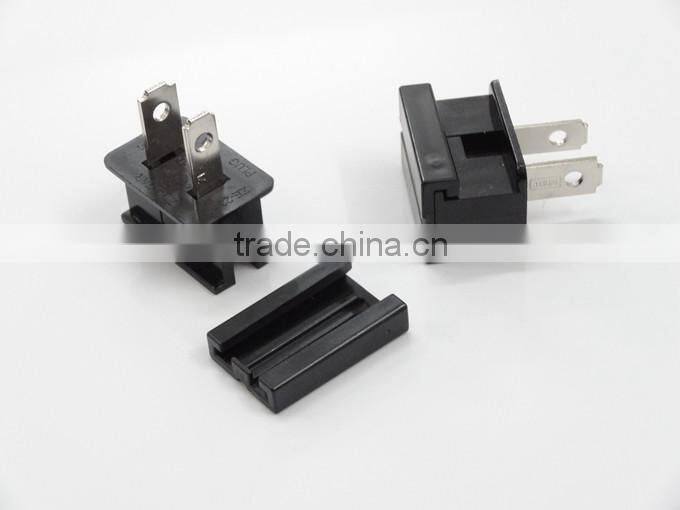

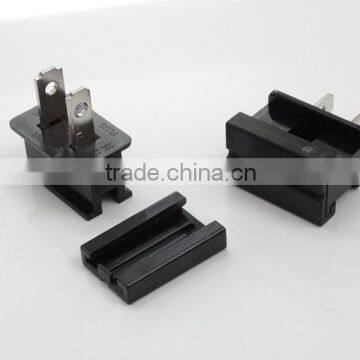

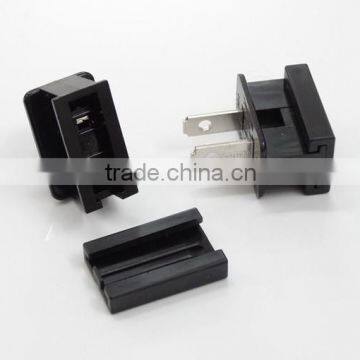

Pictures of nema 1-15P Plug :
