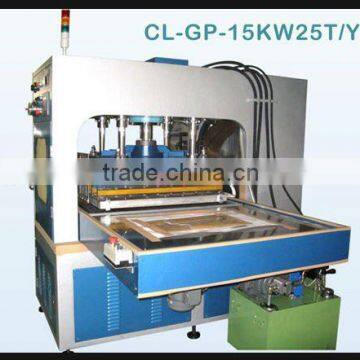

Help CenterAutomatic Sliding Table PVC, PET Plastic Welding Machine (Hydraulic)
Related Products
-
High Frequency PVC Box Automatic Making MachineUS$ 20,000 - 42,000MOQ: 1 Set -
High Frequency Reflection Material Sealing MachineUS$ 5,000 - 60,000MOQ: 1 Set
-
Rotary High Frequency PVC PET Plastic Welding MachineUS$ 50,000 - 78,000MOQ: 1 Set
-
Pvc High Frequency Welding MachineUS$ 25,000 - 50,000MOQ: 1 Set
-
PVC PET Large Power High Frequency Fusing MachineUS$ 22,000 - 42,000MOQ: 1 Set
Specifications
1.Bilateral pneumatic welding machine pvc2. For PVC,PET blister card sealing machine
3. Blister packing machines
High Frequency PVC, PET Toothbrush Welding Machine (Hydraulic)
Characteristics:
1. High speed mould /countermould ascent and descent
2. Hydraulic die-cutting by double action, high precision toggle Operation control of all working parameters by means of PLC
3. User friendly, sliding touch screen interface
4. Internal high speed communication Ethernet network
5. Sturdy and accessible frame which allows for easy and simple maintenance jobs
6. Differential heating system, by means of moving louvers (patented)
7. All sorts of thermoplastics acceptable (PVC, PET, APET, PETG, GAG etc.)
8. Ergonomic design, to minimize operator stress
9. On-line checking by modem (optional)
Parameters:
Model |
CL-GP-8KW15T-BM |
H.F. output power |
8KW |
Oscillation frequency |
27.12MHZ |
Input power |
16KVA |
Power supply |
3 phases 380/220VAC 50/60HZ |
Sparking tube |
PL5557 |
Oscillation tube |
7T69 |
Plate size |
500*600MM |
Pressure mode |
airdraulic pressure |
Temperature control system |
30-250 |
Dimension |
L2380mm×W1420mm×H2200mm |

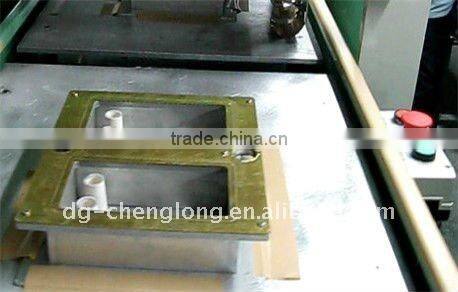

Details:
Workshop:

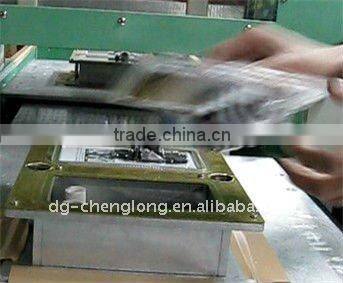

Usage:
Applicable to sucking and molding packaging( including heat sealing and trimming for upper and lower blister, heat sealing and triming for blister and cardboard)
Samples.
Terms and Conditions:
Packaging: Wooden Packaging
Payment: By TT with 50% deposit, 50% before delivery.
Delivery: Within 35 days upon receipt deposit.
Maintenance: One year's free maintenance, lifelong service.
Die: One requested die is offered for free.
Service: For overseas service, food, hotel and air tickets should be unsertaken by buyer.
A set of easy-to-break spare parts for free.
Advantages of us:
1. With our own research and development department.
2. With R&D, processing, assembling, commissioning and training all in one
3. Very quick delivery with READY stock for hot-selling models.
4. Excellent machine quality with favorable price
5. Offer a set of easy-to-break spare parts.
6. Provide overseas service.
7. Machine has been exported into Vietnam, Thailand, India, Indonesia, Pakistan and Chile.
