UL Listed Thermoplastic Nema 5-20P Plug/electrical Extension Plug/Nylon Plug

UL Listed Thermoplastic Nema 5-20P plug/electrical extension plug/Nylon plug

UL L6-20P plug

AC Horsepower Ratings
Horsepower Rating: 2 HP

Electrical Specifications
Grounding: Grounding
Amperage: 20 Amp
Voltage: 250 Volt
NEMA: L6-20P
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C

Material Specifications
Body Material: Super Tough Nylon
Back Cover: Thermoplastic
Wire Module: Nylon
Cord-Clamp: Nylon
Clamp Insert: Nylon
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black-White

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings are permanently marked on device
Cord Range: .385 - .780
Wire Gauge: 16-10 AWG
Standards and Certifications: UL498

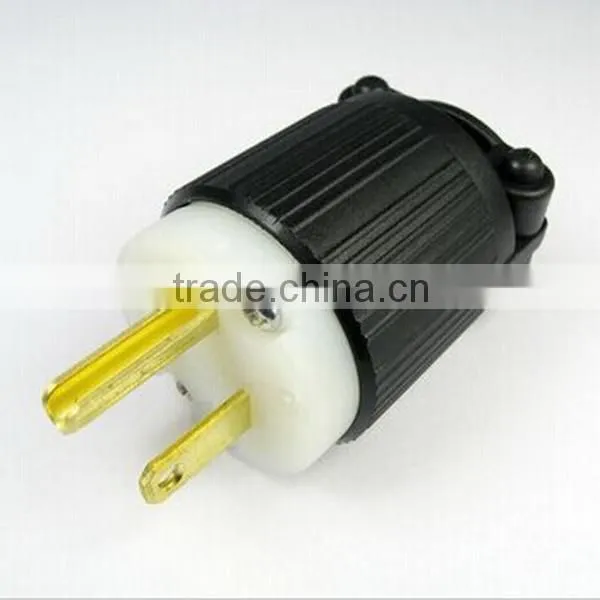

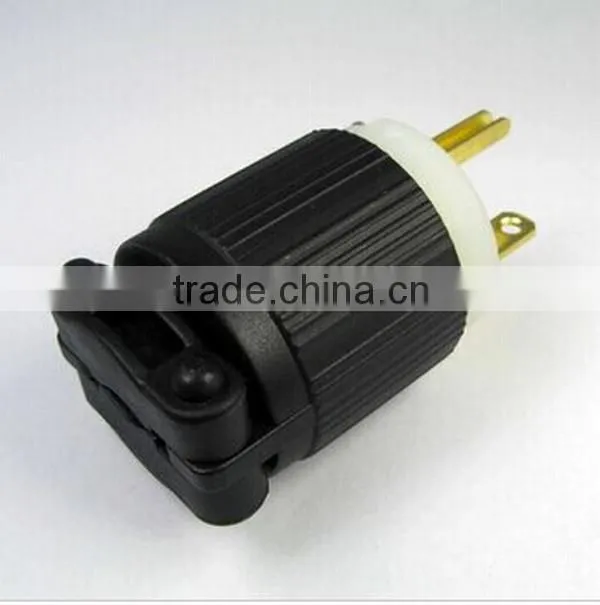

Pictures of Nema 5-20P plug:

 Why Choose Us?

1. 7 years experience, has strong and professional R&D team;

2. 7 professional sales online to provide best solutions;

3. OEM/ODM is available;

4. 50 workers,boast a monthly capacity of 20,000pieces;

5. Strict quality control, defective rate within 0.08%.

1. Logo printing:Can do LOGO on this socket and plug,just contact me if you have quantity.

2.Package design:Our Normal pack  Of Universal Adapter Is PP Bag + Small White Box .

Gift Box , nylon Bag , Blister Card

Bosslyn Eletric Factory Is a professional manufacturer and designer

of universal travel adapters,NEMA twist Lock Plug,car charger,travel charger and power cord.

We have 15 top sales and 13hours online,very fast reply.

We have 7years OEM experience!

Our Energy :

We have 10 sales working from Chinese time 9:00AM to 18:30PM (7.5hours),and another 5 sales working from 19:30PM to 24:00PM(4.5hours).

Our worker welfare :

1.We buy 5 insurancefor each worker,including :Pension insurance, Medical insurance, Unemployment insurance, Industrial injury insurance and Maternity insurance, and Housing Provident Fund.

2.One month have 1time traveling,1time dinner party.1 year have 13months

salarly and Year-end awards.

3.We have 4 production line,each one have one air coditioning.

4.Our worker 2people in one room,air conditioning with each room.

We not just a working factory !!!

Pay more attention to our workers same as to our customer!

Bosslyn,your choice!
