UL Listed PC Material Residential Grade Straight Blade Duplex Receptacle/NEMA 5-20r Receptacle/NEMA 5-15r Receptacle

UL Listed PC Material Residential Grade Straight Blade Duplex Receptacle/NEMA 5-20r Receptacle/NEMA 5-15r receptacle

UL 5-20R plug

AC Horsepower Ratings
Horsepower Rating: 2 HP

Electrical Specifications
Grounding: Grounding
Amperage: 20 Amp
Voltage: 125 Volt
NEMA: 5-20R
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C

Material Specifications
Body Material: Super Tough Nylon
Back Cover: Thermoplastic
Wire Module: Nylon
Cord-Clamp: Nylon
Clamp Insert: Nylon
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black-White

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings are permanently marked on device
Cord Range: .385 - .780
Wire Gauge: 16-10 AWG
Standards and Certifications: UL498

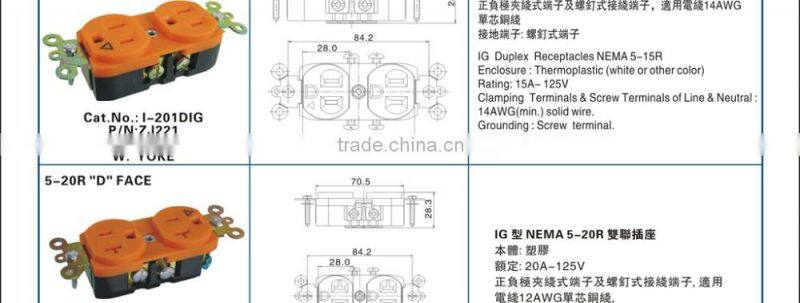

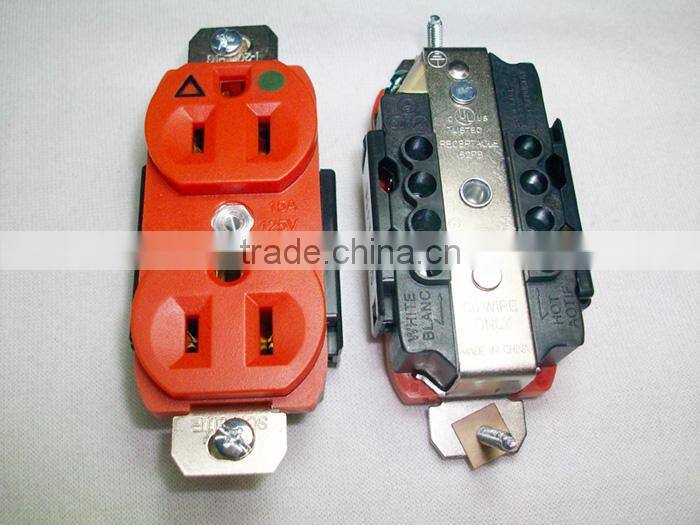

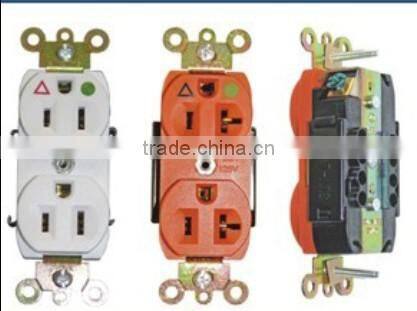

Pictures of Straight Blade Duplex Receptacle:

 Why Choose Us?

1. 7 years experience, has strong and professional R&D team;

2. 7 professional sales online to provide best solutions;

3. OEM/ODM is available;

4. 50 workers,boast a monthly capacity of 20,000pieces;

5. Strict quality control, defective rate within 0.08%.

1. Logo printing:Can do LOGO on this socket and plug,just contact me if you have quantity.

2.Package design:Our Normal pack  Of Universal Adapter Is PP Bag + Small White Box .

Gift Box , nylon Bag , Blister Card
