Filtration Safety Acid Cabinets Eliminate Noxious Vapors and Protect Against Chemical Inhalation
SAFOO Ductless Vented / filtered flammable storage cabinet series is a total new product with a patent design for world laboratory safety storage,which eliminates noxious vapors generated by chemicals stored in the safety cabinet.high efficiently stopping flammable vapors contacting with flame source.
This series will double protect the hazardous flammable chemical in the cabinet.
1.Ductless technology
The ductless technology allows the cabinet to move freely,easy to replace and save space of the working room,ductless filter system can filtered 99.995% fume from the cabinet,much safer for operator and also good for environment protection.
2.Intelligent control

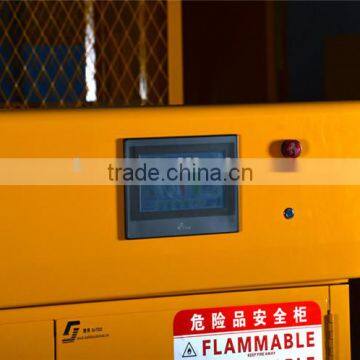

The vented and filtered system are all controlled by one resistive touch LCD screen,much easier to operate,after setting a standard value,once the detect the pollution the fan system will automatically work,keep it working in 24hrs.
3.Filter
High effective active carbon filter,HEPA filter.
Various type of filter,which realize high efficiency filtration.
4.Body
The body of safety cabinet are made of all welded double wall 1.2mm (16guage) high quality steel plates,paint with yellow colour and epoxy resin powder coated,with anti-fire,anti-explosion,and corrosive resistance performance.
Specification and Modle:
Model | SF-Z030 | SF-Z045 |
External Dimension (mm) | 1090*460*1400 (W*D*H) | 1090*460*1930 (W*D*H) |
Air Capacity(m³/h) | 220 | 220 |
Air Velocity Setting (m³/h) | 0~220 | 0~220 |
Lifespan of Fans (h) | ≥60000 | ≥60000 |
Fan Power (W) | 40 | 40 |
Fan Noise (dBA) | ≤40 | ≤40 |
Door | 2 | 2 |
Locks | 3-point lock+padlock | 3-point lock+padlock |
Galvanized Shelf(pcs) | 1 | 2 |
Single shelf load bearing | 50kgs | 50kgs |
Filters (pcs) | 4 | 8 |
Fans (pcs) | 2 | 3 |
LCD Touch screen | 7"x1 | 7"x1 |
Rated Voltage (V) | 220 | 220 |
Rated Current (A) | ≤2 | ≤2 |
Frequency(HZ) | 50 | 50 |
Control system(sets) | 1 | 1 |
Light | LED | LED |
Alarm | Yes | Yes |
Capacity | 30Gallon/114L | 40Gallon /117L |
Power wire(pcs) | 1 | |
UV Light | Optional | |
HEPA Filter | Optional | |
Movable Cart | Optional | |
Acid base saturation alarm | Optional | |
Acid base storage box | Optional | |
Electronic lock | Optional | |
