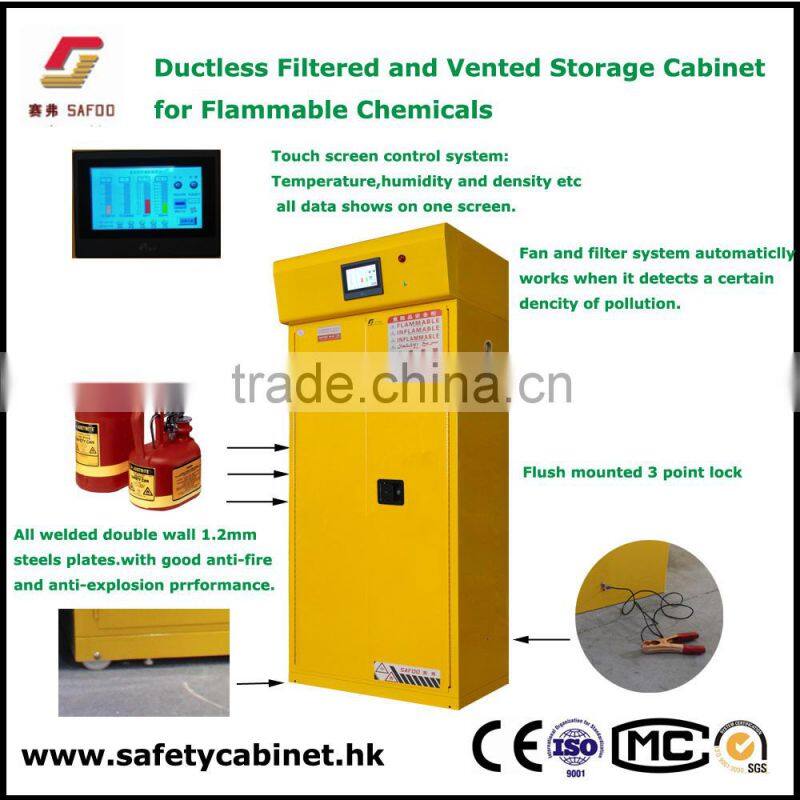

New Ductless Vented Filtered Storage Cabinet for Flammable Chemicals
SAFOO Ductless Vented / filtered flammable storage cabinet series is a total new product with a patent design for the world laboratory safety storage solution.
This filtered products series will double protect from the hazardous flammable chemicals in the cabinet.
1.Ductless technology
The ductless technology allows the cabinet to be moved freely,easy to reloacated anywhere and save space of the working room,and ductless filtration system can filtered 99.995% hazardous fume from the cabinet,that is much safer for operators and also better for environment protection.

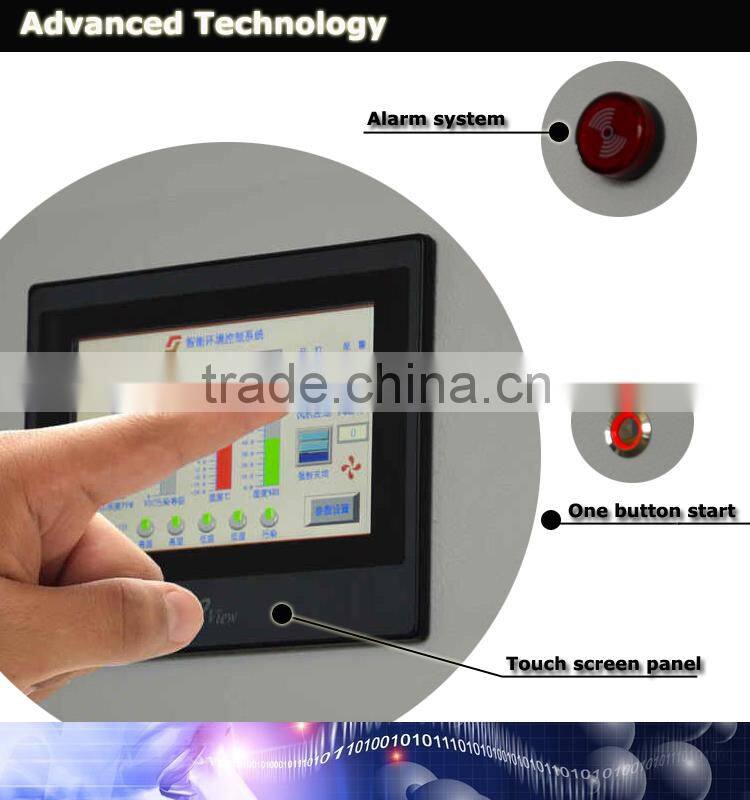

2.Intelligent control
The vented and filtered system are all controlled by one resistive touch LCD screen,much easier to operate,after setting a standard value, the fan system will automatically work once the detector found the pollution,keep it working in 24hrs.
3.Filter
High effective active carbon filter or add a HEPA filter.
Various type of filter,which realize high efficiency filtration for different chemcials.
4.Body
The body of safety cabinet are made of all welded double wall 1.2mm (16guage) high quality steel plates, yellow colour finish and epoxy resin powder coated,with very good anti-fire,anti-explosion and corrosive resistance performance.
Speicification and Modle
Model | SF-Z030 | SF-Z045 |
External Dimension (mm) | 1090*460*1400 (W*D*H) | 1090*460*1930 (W*D*H) |
Air Capacity(m³/h) | 220 | 220 |
Air Velocity Setting (m³/h) | 0~220 | 0~220 |
Lifespan of Fans (h) | ≥60000 | ≥60000 |
Fan Power (W) | 40 | 40 |
Fan Noise (dBA) | ≤40 | ≤40 |
Door | 2 | 2 |
Locks | 3-point lock+padlock | 3-point lock+padlock |
Galvanized Shelf(pcs) | 1 | 2 |
Single shelf load bearing | 50kgs | 50kgs |
Filters (pcs) | 4 | 8 |
Fans (pcs) | 2 | 3 |
LCD Touch screen | 7"x1 | 7"x1 |
Rated Voltage (V) | 220 | 220 |
Rated Current (A) | ≤2 | ≤2 |
Frequency(HZ) | 50 | 50 |
Control system(sets) | 1 | 1 |
Light | LED | LED |
Alarm | Yes | Yes |
Capacity | 30Gallon/114L | 40Gallon /117L |
Power wire(pcs) | 1 | |
UV Light | Optional | |
HEPA Filter | Optional | |
Movable Cart | Optional | |
Acid base saturation alarm | Optional | |
Acid base storage box | Optional | |
Electronic lock | Optional | |
