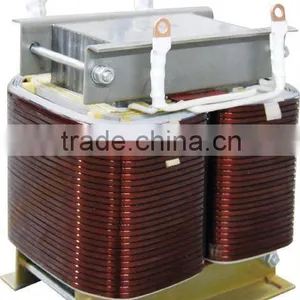

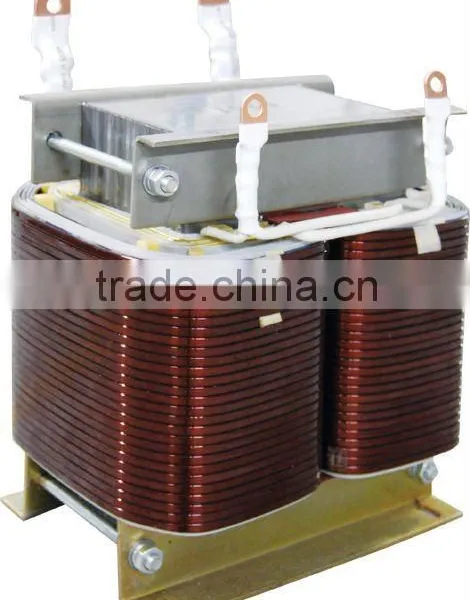

Help CenterAutotransformer Transformer
Related Products
-
LED Three Phase Contact Voltage RegulatorUS$ 50 - 3,000MOQ: 1 Piece -
Step Down Voltage Transformer 1600KVAUS$ 75 - 750MOQ: 1 Piece
-
Power Socket Surge Protector for AppliancesUS$ 5 - 15MOQ: 1 Piece
-
Distribution Transformer 100KVAUS$ 50 - 3,000MOQ: 1 Piece
-
Tiga Fase Daya Tinggi Otomatis Kompensasi-jenis Power RegulatorUS$ 50 - 500MOQ: 1 Piece
Detailed discription :
1) core
Imported from Taiwan with high quality silicon steel sheet, the main material for the 0.35 thick H18, -quality silicon sH14, H12, Z11's highteel, our guest rooms according to the requirements and conditions of use, choose the most suitable material, so that the transformer design to achieve the best performance. (Conventional material for Taiwan's strong piece of steel H18 0.35 thick)
2) Wire
By, EIW, PEW, UEW SEIW, FEAI enameled wire, and glass envelope, the temperature rating for the F-level (155 °C), H-level (180 °C), HC-level (200 °C), C-level (220 °C). (Class B rating for general temperature 135 °C)
3) insulating material
DMS with high-quality environmentally friendly materials, with high temperature insulation, fire-retardant and moisture-resistant multiple properties; also available upon request NOMES selection of imported paper.
4) terminal blocks
Low-power terminal blocks used in Taiwan Mark, good looks, has excellent pressure, temperature, fire-retardant properties. High-power high-quality copper.
5) iron pin
Mainly CNC bending cold rolled plate, plated multicolored (yellow), blue zinc (silver), zinc white (ivory), surface anodized (black) and other environmental plating available.
https://img13.fr-trading.com/?refresh=all
Transformer parameters
Phase |
Single-phase |
three-phase |
Specifications |
0.5KVA-300KVA |
10KVA-2000KVA |
Input Voltage |
Customized according to user needs all kinds of voltage |
|
Output Voltage |
Customized according to user needs all kinds of voltage |
|
Frequency |
50/60Hz |
|
Connection |
Arbitrary voltage conversion |
|
Efficiency |
≥99% |
|
Class |
F grade, H grade, HC-level options |
|
Overload |
Allow more than 1.2 times the rated load of work 4 hours |
|
Cooling |
Lack of natural cooling |
|
Noise |
≤35dB(Within one meter) |
|
Temperature rise |
≤65°C |
|
