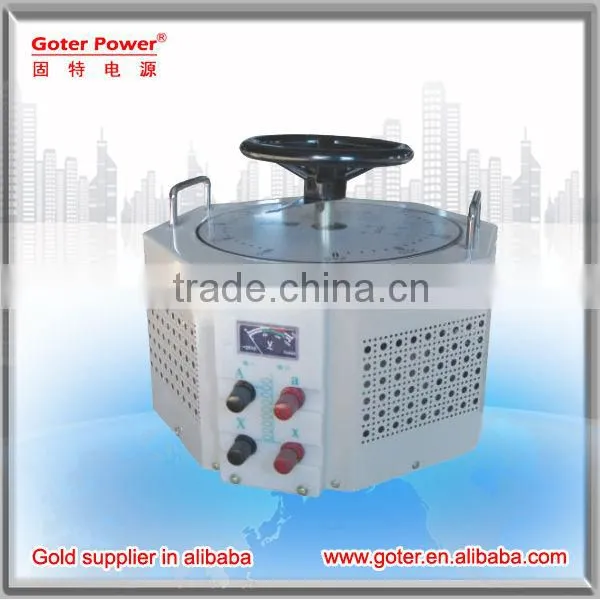

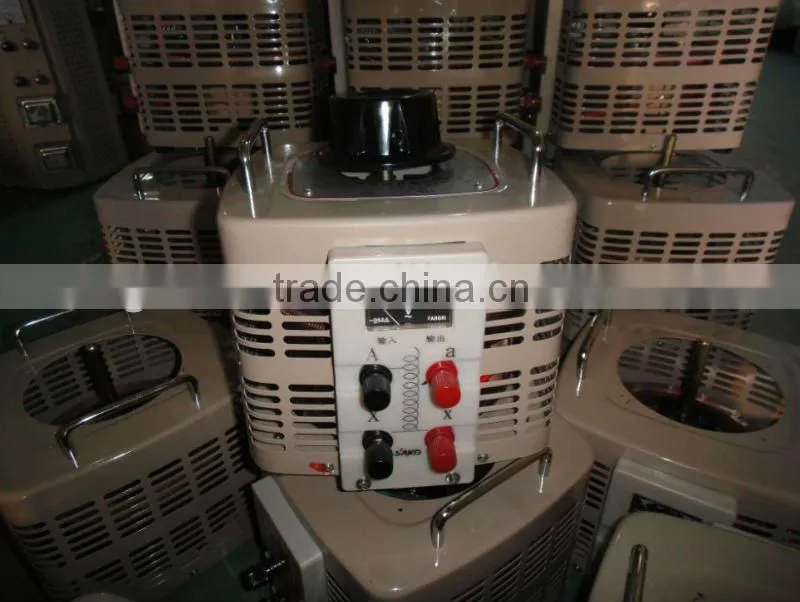

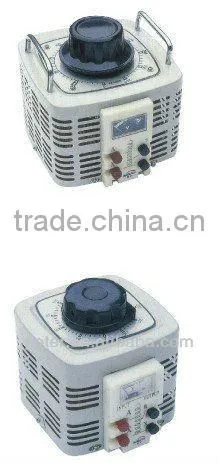

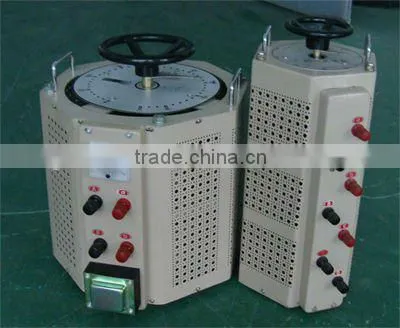

TSGC2J VOLTAGE REGULATOR
Specifications
TDGC2,TSGC2 Series of Contacts voltage regulator (Variac)
1.Phase no.:1P/3P
2.CE CCC
3.Transformer MCB ELCB MCCB etc
4. OEM
TDGC2J,TSGC2J Series of Contacts voltage regulatorFeautre
is series energy-saving voltage regulator are made of imported silicon steel,it can successively adjust the output voltage(single-phase 0~250V),three-phase(0~430V),with the features of no waveform distortion,small volume,light weight,high efficiency,convenient use,reliable performance and so on
car voltage regulator, valeo voltage regulator, voltage regulator circuit, automatic voltage regulator, voltage stabilizer, regulator, medium voltage, battery charger, ac automatic voltage regulator, mitsubishi alternator voltage regulator, auto alternator voltage regulator, 12v dc voltage regulator, 48v dc voltage regulator, gas regulator, oxygen regulator, nitrogen regulators, pressure regulator, window regulator, argon regulator, transformer voltage transformer
Main Technical Data
Phase no.: Single-phase,three-phase voltage regulator
Input voltage: Single-phase 220V, three-phase 380V
Output voltage : Single-phase 0~250V, three- phase 0~430V
Frequency: 50Hz
Model means
TDGC2J,TSGC2J
T: Regulator
D: Single phase
S: Three phase
D: dry self-cooled
C: Contact
2: Economic design serial number. according to china standard since 1982 after unified national design
J: Economic type
Application
This kind regulator can be applied in industry,scientific experiment,public facilities and domestic appliances to achieve the goal of voltage regulating,temperature controlling,light regulating,power controlling and so on voltage regulator
Detail Specification
Model |
Rating Power (kVA) |
Phase No. |
Frequency (Hz) |
Input volt. (V) |
Output volt (V) |
Output current(A) |
TDGC2J-0.5 |
0.5 |
1 |
50 |
220 |
0~250 |
2 |
TDGC2J-1 |
1 |
1 |
50 |
220 |
0~250 |
4 |
TDGC2J-2 |
2 |
1 |
50 |
220 |
0~250 |
8 |
TDGC2J-3 |
3 |
1 |
50 |
220 |
0~250 |
12 |
TDGC2J-5 |
5 |
1 |
50 |
220 |
0~250 |
20 |
TDGC2J-7 |
5 |
1 |
50 |
220 |
0~250 |
28 |
TDGC2J-10 |
10 |
1 |
50 |
220 |
0~250 |
40 |
TDGC2J-15 |
15 |
1 |
50 |
220 |
0~250 |
60 |
TDGC2J-20 |
20 |
1 |
50 |
220 |
0~250 |
80 |
TDGC2J-30 |
30 |
1 |
50 |
220 |
0~250 |
120 |
TDGC2J-40 |
40 |
1 |
50 |
220 |
0~250 |
160 |
TDGC2J-50 |
50 |
1 |
50 |
220 |
0~250 |
200 |
TDGC2J-60 |
60 |
1 |
50 |
220 |
0~250 |
240 |
TSGC2J-3 |
3 |
3 |
50 |
380 |
0~430 |
4 |
TSGC2J-6 |
6 |
3 |
50 |
380 |
0~430 |
8 |
TSGC2J-9 |
9 |
3 |
50 |
380 |
0~430 |
12 |
TSGC2J-15 |
15 |
3 |
50 |
380 |
0~430 |
20 |
TSGC2J-30 |
30 |
3 |
50 |
380 |
0~430 |
40 |
TSGC2J-40 |
40 |
3 |
50 |
380 |
0~430 |
54 |
TSGC2J-50 |
50 |
3 |
50 |
380 |
0~430 |
64 |
TSGC2J-60 |
60 |
3 |
50 |
380 |
0~430 |
80 |
