Three in single out power frequency UPS
1. Product presentation:
HR8315series three in single out UPS is the excellent performance sine wave UPS which is special for data centers, network computer room, intelligent and precision devices. Its high reliability is a very important protection to UPS for financial, telecommunications, insurance, transportation, taxation, military, securities, energy, education, government, manufacturing, enterprises and other industries.
HR8315 Series products are true double conversion online UPS which adopts advanced IGBT power devices, superior performance SPWM inverter and multi-mode intelligent international advanced battery management technology. It also has a plenty of power management software, base on the excellent performance-to-price ratio and users, can provide users with the isolation transformer, external charger and SNMP adapter as optional components.
2. Technical characteristics:
With Chinese grid environment design concept, improve system usability.
High reliable design concept, ensure network system to run steadily.
ABM Intelligent battery management technology, to effectively extend the battery life.
Perfect protection function and guarantee the system stability and reliability
Human-based machine operation interface and net work management function which make operation more easily
3. Technical data:
Input voltage |
Three phases 380VAC±20% |
Input frequency |
50(60) Hz ±5% |
Output voltage |
Single phase 220VAC |
Output frequency |
50(60) Hz |
Voltage stability |
±1% |
Frequency stability |
±0.5% (mains power failure) |
Power factor |
0.8 (lag) |
Wave form |
SPWM sine wave |
Distortion |
<3% (linear load) |
Transient response |
Voltage change ≤4%(100% load on or take off) |
Output current crest value |
3:1 (Max.) |
Overload |
Overload ((120—150%)automatically turn to bypass after 60s, resume after load is normal. |
Over temperature |
When UPS inner temperature >85°C, automatically turn to bypass. |
Output short circuit |
Limit current, automatically turn off, miniature circuit breaker protection |
LCS screen |
Display UPS running status, input/ output voltage, input/output frequency, output power(%)l inverter temperature |
Environment temp. |
0~40°C |
Environment humidity |
20~90% no condensation |
Frequency |
>87% |
Communication interface |
RS232 interface, can external build SNMP card; optional RS485,DB9 stem nodes |
Max. elevation |
Less than 1000m, (when the elevation increases 500m, UPS output will reduce 5%) |
Noise |
<58dB (1m to cabinet) |
4. Model:
Models |
Capacity |
Dimension L*W*H (mm) |
Weight |
Max. output current (A) |
HR8306 |
6KVA |
250×580×700(standard) |
85 |
10 |
HR8310 |
10KVA |
310×590×850 |
130 |
16 |
HR8312 |
12KVA |
140 |
20 |
|
HR8315 |
15KVA |
410×680×1020 |
220 |
24 |
HR8320 |
20KVA |
260 |
32 |
|
HR8325 |
25KVA |
320 |
46 |
|
HR8330 |
30KVA |
350 |
56 |
|
HR8340 |
40KVA |
450×800×1150 |
440 |
76 |
HR8120 |
20KVA |
230 |
112 |

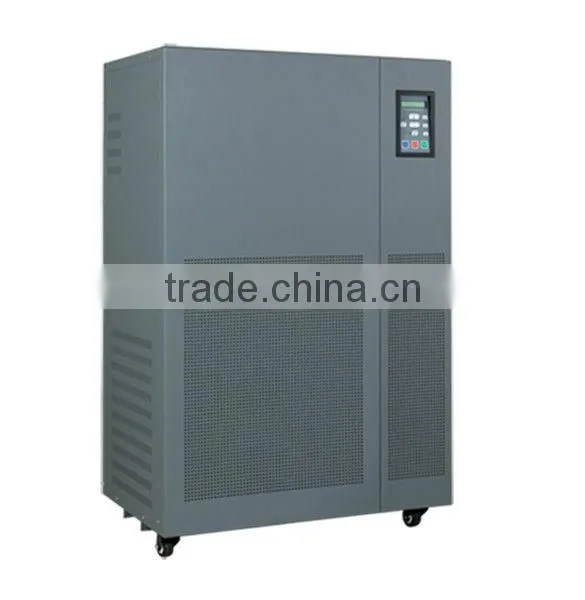

5. Pictures of Three in single out
