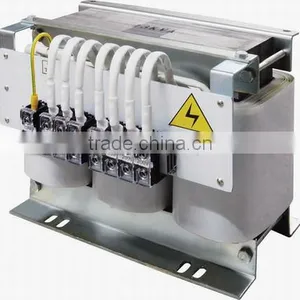

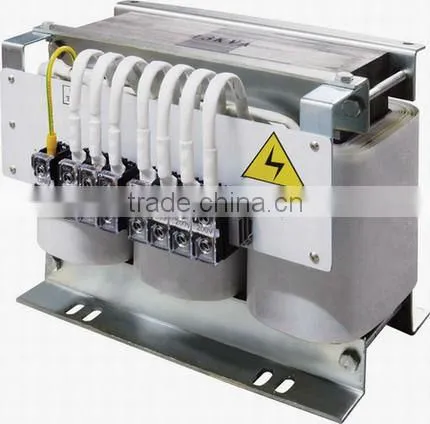

Help CenterThree Phase LCD Inverter Transformer
Related Products
1.Sphere of application
1.CNC Machining Centers 2.SMT 3.Printer 4.EDM
5.High way/railway system 6.Medical facilities
7.Laser cutting machine 8.Circuit board drilling machine
9. Automatic insertion machine 10.CNC punch press
11. Net communication basic system 12.Petrochemical/Oil/Power system
13 Broadcast/Television/Bank system 14 Plastic Injection Molding Machines
15 Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed.
2. Features:
Function of voltage transformation(For example:Y/ Y or Y/triangleConnection) Have Anti-interference function with the filter(For example: Can remove the third harmonicwith heat resistance, moisture resistance, stability, Chemical compatibility, temperature resistance, environmental protection, radiation and toxic properties.
3. Technical Parameter:
Phase |
One-phase |
three phase |
specifications |
50VA-300KVA |
10KVA-2000KVA |
Input voltage |
110V-240V AC |
380V AC |
Output voltage |
Different configurations are possible, depending on the user's needs and requirements |
|
frequency |
50/60Hz |
|
Link way |
Y/ Y or Y/triangle combination |
|
efficiency |
≥98% |
|
Insulation class |
F,H,HC ,C |
|
Overload |
Allow more than 1.2 times rated load work continuously 4 hours |
|
Cooling way |
Natural cooling |
|
Noise |
≤35dB(in one meter) |
|
Temperature |
≤65°C |
|
Insulation resistance |
≥150MΩ |
|
Electric strength |
3000VAC/1min |
|
Life |
20 years |
|
Work environment |
temperature:-20~+40°C humidity:≤93%RH (No condensation) |
|
Workplace |
No corrosive gas and electric dust |
|
Standard |
Products meet VDE0550,IEC439,JB5555,GB226 standards and other international national |
|
Transformer:
Factory:
Cetificate:
