Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > 60KVA Three Phase Isolation Transformer

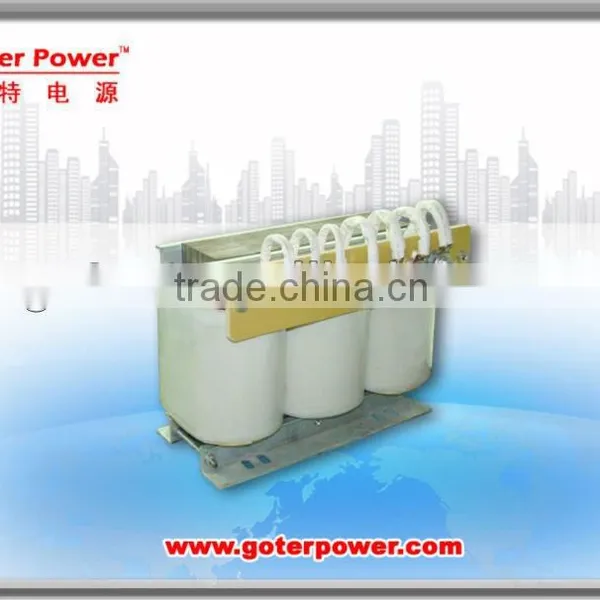

60KVA Three Phase Isolation Transformer

Name: 60KVA Three Phase Isolation Transformer
Brand: GOTER POWER
SKU: 102289007
Availability: InStock

60KVA Three Phase Isolation Transformer thumbnail-1

60KVA Three Phase Isolation Transformer photo-1

US$ 50 - 3,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

GOTER POWER

Model Number:

GTAF-S60KVA

Contact Supplier Request Quote Chat Now

Shenzhen Goter Power Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GOTER POWER

Model Number GTAF-S60KVA

Usage Power

Phase Three

Coil Structure Other, Toroidal, Toroidal

Coil Number Autotransformer

1. General introduction:

Transformer is made by high quality of material and advanced workmanship of technology.

This series of transformer not only have the ability to adjust the pressure, but also can isolate the three times of harmonic produced by power grid to equipment and protect to reduce the fever produced by machine and the lifetime of Insulation materials. They can be equipped and used directly on load of different natures and can be used in the work sites that Utility the voltage needs to be change or isolated safely.

These parameters or parts of transformer including input and output voltage (Single-phase, three-phase, more ways of input and output etc),the distribution of volume of Quad tap, outside case (equipped or not) can be designed and produced elaborately according to the requests of clients.

2. Features:

Function of voltage transformation(For example:Y/ Y or Y/triangleConnection) Have Anti-interference function with the filter(For example: Can remove the third harmonicwith heat resistance, moisture resistance, stability, Chemical compatibility, temperature resistance, environmental protection, radiation and toxic properties.

3.Connection:

4. Technical Parameter:

Phase	One-phase	three phase
specifications	50VA-300KVA	10KVA-2000KVA
Input voltage	110V-240V AC	380V AC
Output voltage	Different configurations are possible, depending on the user's needs and requirements
frequency	50/60Hz
Link way	Y/ Y or Y/triangle combination
efficiency	≥98%
Insulation class	F,H,HC ,C
Overload	Allow more than 1.2 times rated load work continuously 4 hours
Cooling way	Natural cooling
Noise	≤35dB(in one meter)
Temperature	≤65°C
Insulation resistance	≥150MΩ
Electric strength	3000VAC/1min
Life	20 years
Work environment	temperature:-20~+40°C humidity:≤93%RH (No condensation)
Workplace	No corrosive gas and electric dust
Standard	Products meet VDE0550,IEC439,JB5555,GB226 standards and other international national

Detailed description :

Description of the transformer material
1) core
Imported from Taiwan with high quality silicon steel sheet, the main material for the 0.35 thick H18, H14, H12, Z11's high-quality silicon steel, our guest rooms according to the requirements and conditions of use, choose the most suitable material, so that the transformer design to achieve the best performance.

(Conventional material for Taiwan's strong piece of steel H18 0.35 thick)

2) Wire
By PEW, UEW, EIW, SEIW, FEAI enameled wire, and glass envelope, the temperature rating for the F-level (155 °C), H-level (180 °C), HC-level (200 °C), C-level (220 °C). (Class B rating for general temperature 135 °C)

3) insulating material
DMS with high-quality environmentally friendly materials, with high temperature insulation, fire-retardant and moisture-resistant multiple properties; also available upon request NOMES selection of imported paper.

4) terminal blocks
Low-power terminal blocks used in Taiwan Mark, good looks, has excellent pressure, temperature, fire-retardant properties. High-power high-quality copper.

5) iron pin
Mainly CNC bending cold rolled plate, plated multicolored (yellow), blue zinc (silver), zinc white (ivory), surface anodized (black) and other environmental plating available.
