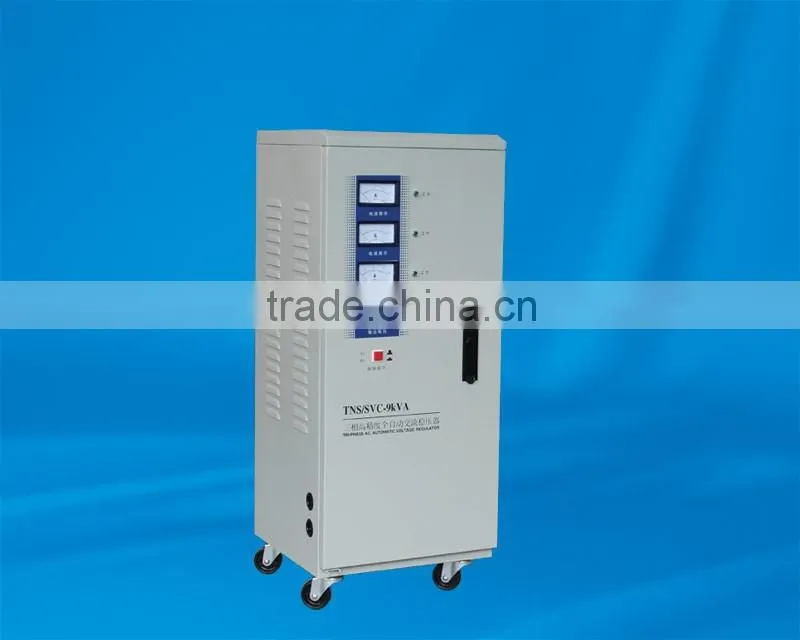

TNS-9KVA three phase servo motor type AVR
What is the main function of our products?
To stabilize your input voltage, and to bring you an adjustable stabilized output voltage.
Product Features
Product Features:
1) Full copper coil and imported carbon brush.
2) Import servo motor control.
3) With bypass system.
4) Compensated voltage technology.
5) Wide input voltage range (Customizable):230V-430V
6) High efficiency: Not less than 90%.
7) High output deviance: 3%, adjustable.
8) Short adjust/response time: not more than 1S (When input voltage has a change of ±10%).
9) Protections (Customizable): Over Voltage, Under Voltage, Short Circuit, Over Load, Time Delay, Over Temperature, etc.
Brief parameters
Brief parameters:
Item Name: |
Automatic Voltage Regulator / Stabilizer / AVR |
Item Code: |
TNS-9 KVA |
Phase: |
Three phases |
Capacity: |
9 KVA |
Input voltage: |
230~430V |
Output voltage: |
380V±3% |
Precision/Accuracy: |
± 3%(Adjustable) |
Frequency: |
50/60Hz |
Efficiency: |
More than 90% |
Adjust time: |
Not more than 1 S (When input voltage has a change of ±10%) |
Ambient temperature: |
-10℃~+40℃ |
Insulation resistance: |
Normally more than 5MΩ |
Relative humidity: |
Less than 90% |
Acoustic Noise: |
Less than 40dB |
Waveform distortion: |
No additional waveform distortion |
Control type: |
Servo motor |
Protection: |
Over voltage/under voltage/over load/short circuit/time delay/over temperature/etc. |
Warranty period: |
One years (for free) Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period. |
Capacity, Size and N.W.
Item Code |
Capacity (KVA) |
Size (L*W*H, CM) |
N.W. (KG) |
TNS-1.5 K |
1.5 |
48.5*22.5*17 |
20.00 |
TNS-3 K |
3 |
48.5*22.5*17 |
24.00 |
TNS-4.5 K |
4.5 |
48.5*22.5*17 |
28.00 |
TNS-6 K |
6 |
36*28*68 |
34.00 |
TNS-9 K |
9 |
38*32*78 |
43.00 |
TNS-15 K |
15 |
44*36*78 |
68.00 |
TNS-20 K |
20 |
52*40*86 |
85.00 |
TNS-30 K |
30 |
49*46*97 |
91.00 |
TNS-40 K |
40 |
64*57*118 |
175.00 |
TNS-50 K |
50 |
64*57*118 |
185.00 |
TNS-60 K |
60 |
64*57*118 |
196.00 |
TNS-80 K |
80 |
67*55*132 |
233.00 |
TNS-100 K |
100 |
81*70*147 |
257.00 |
