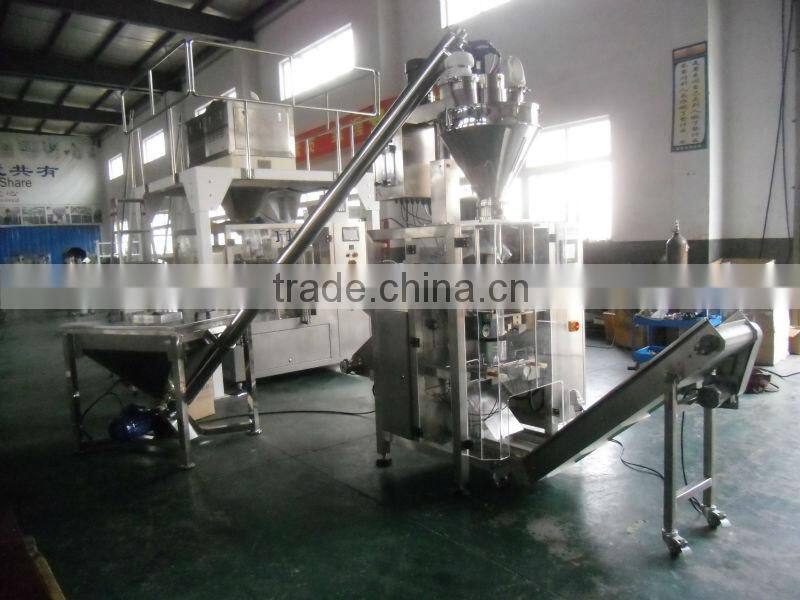

XFF-L vertical powder filling packaging machine
I. Application:
This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
II. Main performance and functional characteristics:
1. Equipped with safety protection, comply with firms safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machines control precision ,reliability and intelligentized level.
4 Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers different requirements.
III. Technical Parameter
| Measure method | Auger dosing |
weighing feedback tracking |
Bag-making size |
(W)70-200mm (L)100-300mm |
(W)100-250mm (L)100-350mm |
Filling weight |
10-5000g |
10-5000g |
Packaging precision |
≤1% |
|
Packaging speed |
25-60bag /min |
|
Power supply |
Three phase 380/220V 50-60 Hz |
|
Power |
6 kw |
|
Pressure |
6-8 kg/c |
|
Use tolerance |
0.2m3/min |
|
Weight |
700kg |
950Kg |
Dimension |
1300×1500×2600mm |
|

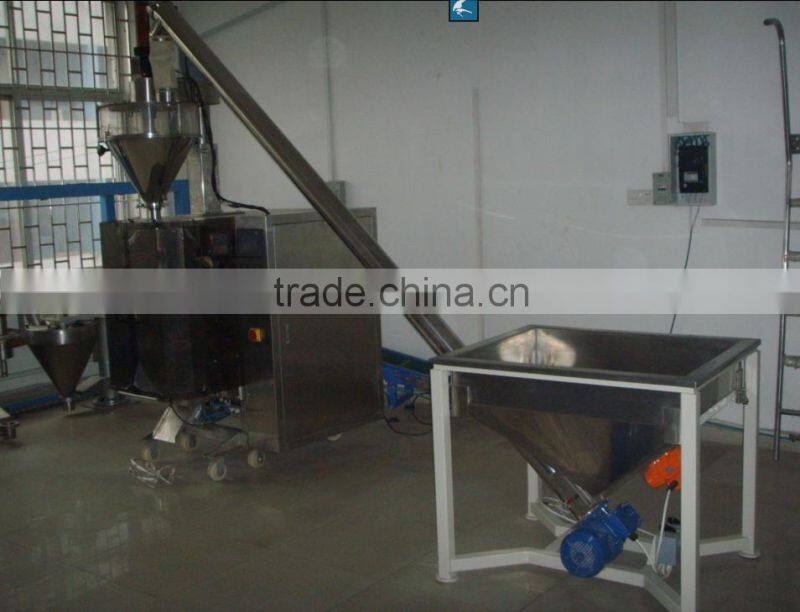

XF -S Auger Conveyorsquare hopper
I. ApplicationThe machine can lift and feed several kinds of powder and granule type material. The machine can combine with our packaging machine to feed the material automatically; it also can be used separately. Except the motor and the bearing, other parts are made of stainless steel.
II. Technical Parameter
Lifting Capacity |
3m3/h, 5m3/h |
Volume of the hopper |
230 L |
Power Supply |
3 phase 380V/220V,50-60 Hz |
Power |
930W, 1700W |
Weight |
130 kg, 160 kg |
Dimension |
860×900×1100 mm |
Lifting height |
1800mm above the floor ( it also can customized ) |
