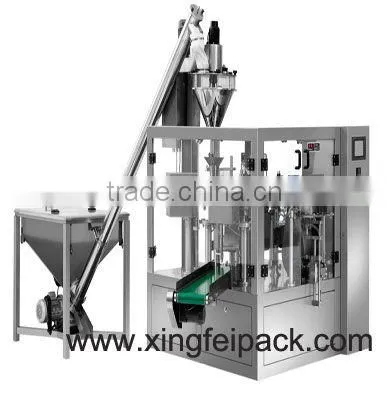

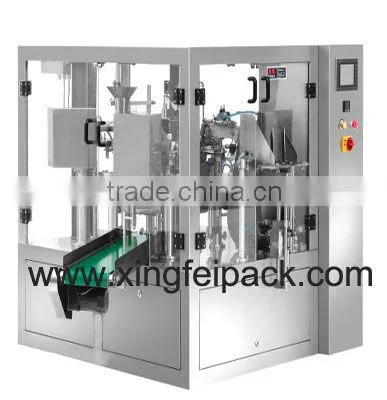

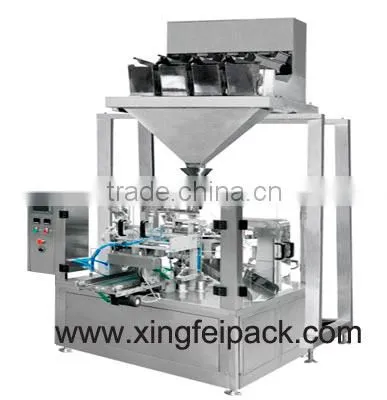

XFG premade pouch packing machine
I),Character:
1. This machine neither fills in the damaged bag nor defective bags
2. The machine doesnt seal the empty bags for the case of material saving.
3.The superior cleaning device, dust removing device and intensified sealing technique ensures the dustless working environment.
4. This unit can fill and seal various flat bags automatically. Simple operation of changing different bags sizes, which only need 2-5min.
5. This unit can also do the standing pouches. Zipper bags and special style bags with the XFG -8ST automatic bag filling and sealing machine.
II),Technical Parameter:
Automatic Bag filling and sealing Machine
Capacity |
30-50 bag/min, According to product type and characteristics |
Bag Size |
(L)100-300mm (W)100-200 mm |
Filling weight |
Up to1000 g/bag (max) |
Bag sealing |
Sealing by heat and pressure |
Power supply |
AC380V±10%,3-phase 50Hz |
Power Consumption |
2.0KW |
Air Consumption |
0.2m³/min at 5-8 kgf/cm², Air compressor is supplied by customer |
Machine Weight |
1200kg |
Dimension |
W×L×H 1140×1500×1560mm |
Electronic Automatic Weighing (With 6 Units Load cell
Wight limits |
20-200g, 50-500g, 100-1000g |
Deviation |
±1-3g |
Weigh and Packaging Capacity |
1500-2700bags/hour |
Application |
Granules: Chemicals, seasonings, natural flavoring, fertilizer, feed, granulated sugar, salt and etc. |
