XFL Automatic Packing Machine

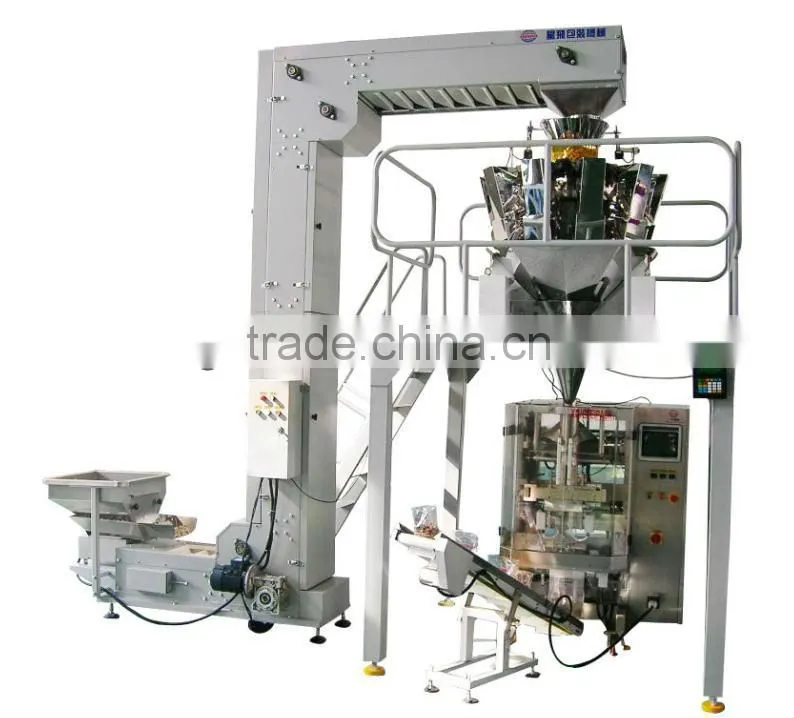

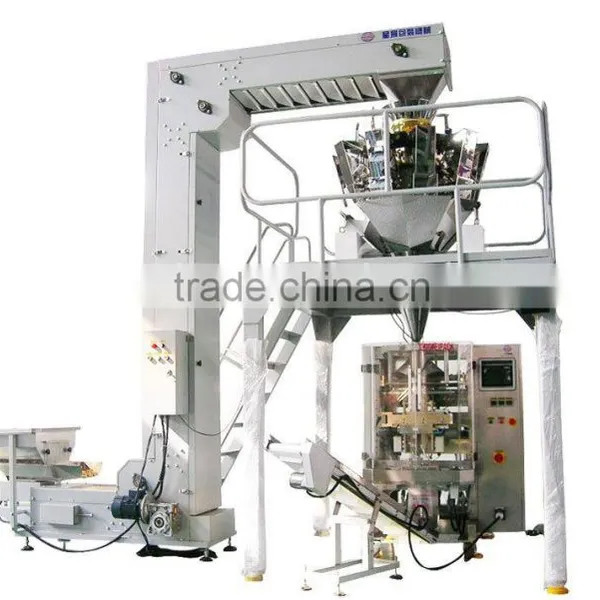

I. Machine list in this system
---Vibrating feeder and Z type lifter

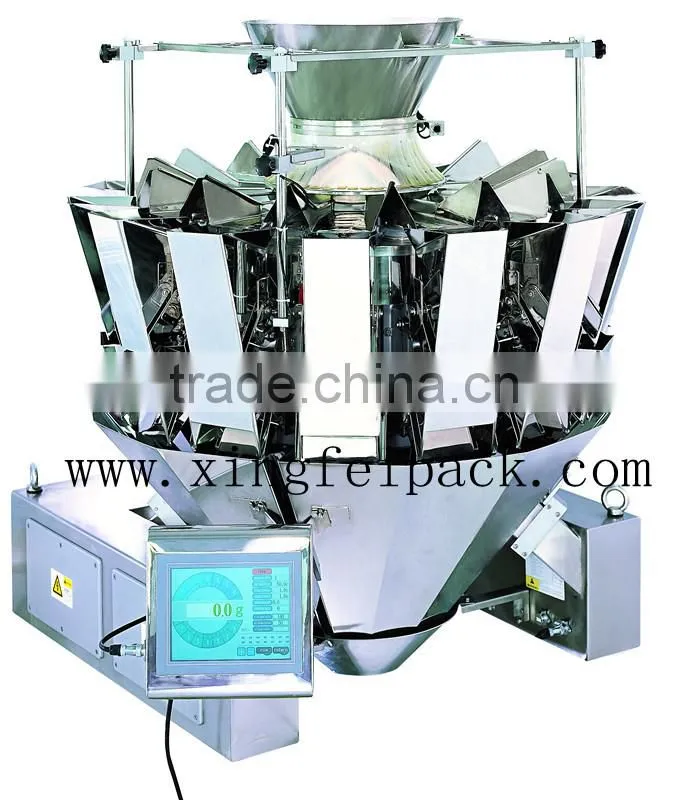

---10/14 head weigher
--Main packaging machine
--platform
--- finish product conveyor
II. Feature: The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.

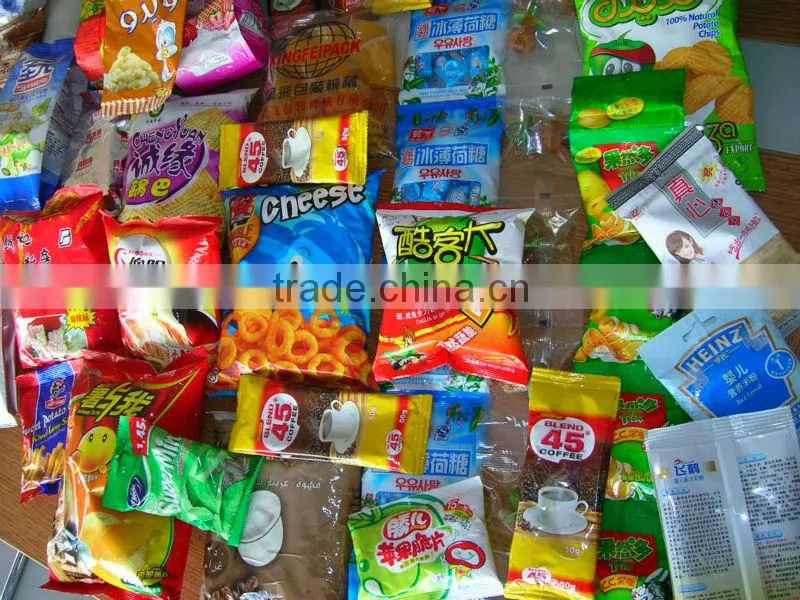

III. Range:The machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.
XFL-200 Automatic packing machine
I. Technical Para:
|
Model
|
XFL-200 |
XFL-250 |
XFL-300 |
XFL-350 |
Bag-making Size |
(L)80-300mm, (W)80-200mm |
(L)100-330mm, (W)100-250mm |
(L)100-400mm, (W)100-300mm |
(L)100-450mm, (W)100-350mm |
Packing Speed |
25-75 Bags/Min |
25-65 Bags/Min |
25-65 Bags/Min |
25-60 Bags/Min |
|
Power Supply |
220V, 50-60Hz, 3.0 Kw |
380-220V, 50-60Hz, 3.6Kw |
220V, 50-60Hz, 4.0 Kw |
380-220V, 50-60Hz, 4.75 KW |
Compressed air consumption |
6-8 kg/m2 0.15 m3/min |
6-8 kg/m2, 0.15 m3/min |
6-8 kg/m2, 0.15 m3/min |
6-8 kg/m2, 0.15 m3/min |
Weight |
500 Kg |
700 kg |
800 Kg |
850 kg |
Dimension(mm) |
1450×1000×1700 |
1200×1450×1800 |
1200×1500×1950 |
1250×1500×2000 |
