auto transformer 0-250v single phase
- Shanghai/Ningbo/Guangzhou or other main ports in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Linglam | |
| Model Number | TDGC2 | Usage | Other, TDGC2 | |
| Phase | Single Phase | Current Type | AC |
Product Description

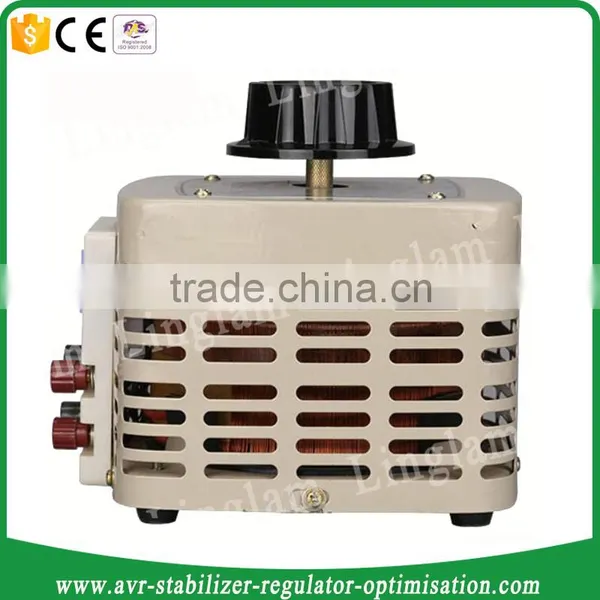

auto transformer 0-250v single phase
TDGC2 Series Contact Type Voltage Regulator belongs to the Adjustable Variac/Autotransformer structure. The coil wound evenly on the toroidal core, the carbon brush holder installed in the spindle, under the pressure of spring, the carbon brush contacts the coil surface closely. Adjusting the spindle to drive the carbon brush holder to make the carbon brush move on the coil surface and change the carbon brush contact position, that is to say, changing the variac primary and secondary winding/turns ratio, which make the output voltage smoothly adjust with the adjustable range.
Capacity/Power | 500VA-30KVA (Other power can be customized) |
Input Voltage | 220VAC (Other voltage can be customized) |
Output Voltage | 0-250VAC (Other range can be customized) |
Max. Output Current | Power in KVA*1000/Max. Output Voltage |
Working Frequency | 50Hz/60Hz±5% |
Efficiency | ≥98% |
Waveform Distortion | Nil |
Ambient Temperature | -15°C to +45°C |
Altitude | ≤1000m |
Relative Humidity | ≤95% |
Insulation Class | A |
Temperature Rise | <60℃ |
Dielectric Strength | No damage at 2000V for 1 minute |
Insulation Resistance | ≥5MΩ |
Display | Analogue Meter (Optional: LED or LCD Screen) |
Installation | Indoor and floor mounted |
Protection Degree (IP Rating) | IP20 |
Cooling | Dry type air cooled |
1. Manual Adjust Knob

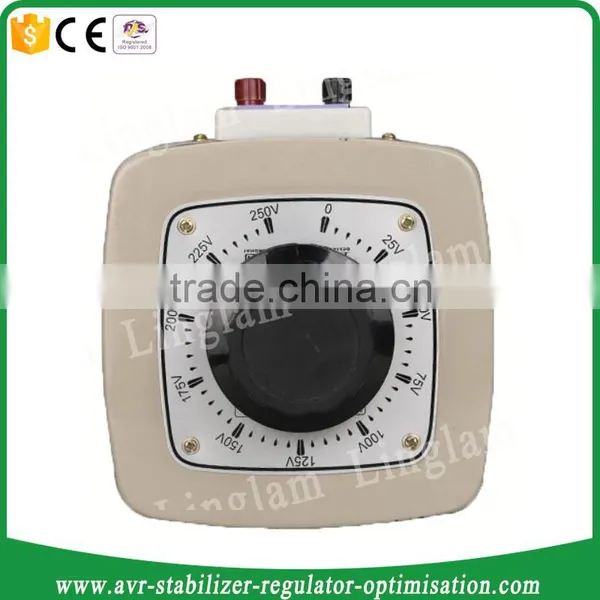

2. Voltage Adjusting Indication Panel
3. Enclosure
4. Base
5. Lifting Handle

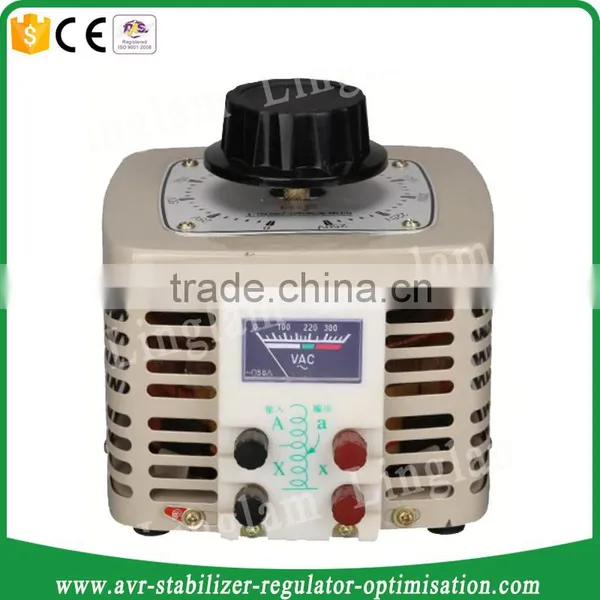

6. Output Voltage Analog Meter
7. Input & Output Connection Terminals
8. Ground
9. Spindle
10. Carbon Brush Holder & Carbon Brush
11. Coil
