Feature:
1. Resists corrosion from long-term exposure to high temperature,chemicals,
radiation and other critical environments.
2. Smooth rounded edges to prevent damage to adjacent materials.
3. High tensile strength, Non-flammable,easy and quick installation.
Common sizes:
4.6x100 ~ 4.6x1300mm; 7.6x150 ~ 7.6x1100mm; 12x200 ~ 12x1200mm.
Technical Parameters:

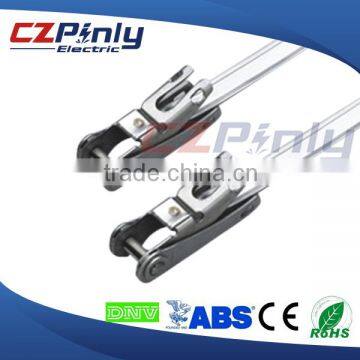

Ball-Lock 4.6mm and 7.9mm series stainless steel cable ties parameter:
( If you need other types of parameters, please feel free to contact with us)

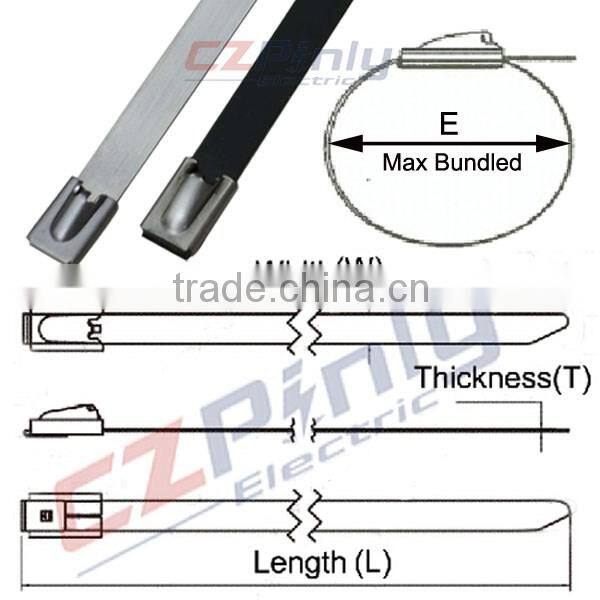

| Item | Length | Width | Thickness | Max Bundled | Item | Length | Width | Thickness | Max Bundled |
| L(mm) | W(mm) | T(mm) | E(mm) | L(mm) | W(mm) | T(mm) | E(mm) | ||
| PL-4.6×100 | 100 | 4.6 | 0.25 | 22 | PL-7.9×100 | 100 | 7.9 | 0.25 | 35 |
| PL-4.6×150 | 150 | 4.6 | 0.25 | 35 | PL-7.9×150 | 150 | 7.9 | 0.25 | 50 |
| PL-4.6×200 | 200 | 4.6 | 0.25 | 50 | PL-7.9×200 | 200 | 7.9 | 0.25 | 65 |
| PL-4.6×250 | 250 | 4.6 | 0.25 | 65 | PL-7.9×250 | 250 | 7.9 | 0.25 | 82 |
| PL-4.6×300 | 300 | 4.6 | 0.25 | 82 | PL-7.9×300 | 300 | 7.9 | 0.25 | 90 |
| PL-4.6×350 | 350 | 4.6 | 0.25 | 90 | PL-7.9×350 | 350 | 7.9 | 0.25 | 105 |
| PL-4.6×400 | 400 | 4.6 | 0.25 | 105 | PL-7.9×400 | 400 | 7.9 | 0.25 | 130 |
| PL-4.6×450 | 450 | 4.6 | 0.25 | 130 | PL-7.9×450 | 450 | 7.9 | 0.25 | 140 |
| PL-4.6×500 | 500 | 4.6 | 0.25 | 140 | PL-7.9×500 | 500 | 7.9 | 0.25 | 162 |
| PL-4.6×550 | 550 | 4.6 | 0.25 | 162 | PL-7.9×550 | 550 | 7.9 | 0.25 | 185 |
| PL-4.6×600 | 600 | 4.6 | 0.25 | 185 | PL-7.9×600 | 600 | 7.9 | 0.25 | 190 |
| PL-4.6×700 | 700 | 4.6 | 0.25 | 205 | PL-7.9×700 | 700 | 7.9 | 0.25 | 205 |
| PL-4.6×750 | 750 | 4.6 | 0.25 | 223 | PL-7.9×750 | 750 | 7.9 | 0.25 | 223 |
| PL-4.6×800 | 800 | 4.6 | 0.25 | 235 | PL-7.9×800 | 800 | 7.9 | 0.25 | 235 |
| PL-4.6×850 | 850 | 4.6 | 0.25 | 250 | PL-7.9×850 | 850 | 7.9 | 0.25 | 250 |
| PL-4.6×900 | 900 | 4.6 | 0.25 | 260 | PL-7.9×900 | 900 | 7.9 | 0.25 | 260 |
| PL-4.6×950 | 950 | 4.6 | 0.25 | 272 | PL-7.9×950 | 950 | 7.9 | 0.25 | 272 |
| PL-4.6×1000 | 1000 | 4.6 | 0.25 | 290 | PL-7.9×1000 | 1000 | 7.9 | 0.25 | 290 |
| PL-4.6×1050 | 1050 | 4.6 | 0.25 | 300 | PL-7.9×1050 | 1050 | 7.9 | 0.25 | 300 |
| PL-4.6×1100 | 1100 | 4.6 | 0.25 | 310 | PL-7.9×1100 | 1100 | 7.9 | 0.25 | 310 |
| PL-4.6×1150 | 1150 | 4.6 | 0.25 | 320 | PL-7.9×1150 | 1150 | 7.9 | 0.25 | 320 |
| PL-4.6×1200 | 1200 | 4.6 | 0.25 | 330 | PL-7.9×1200 | 1200 | 7.9 | 0.25 | 330 |

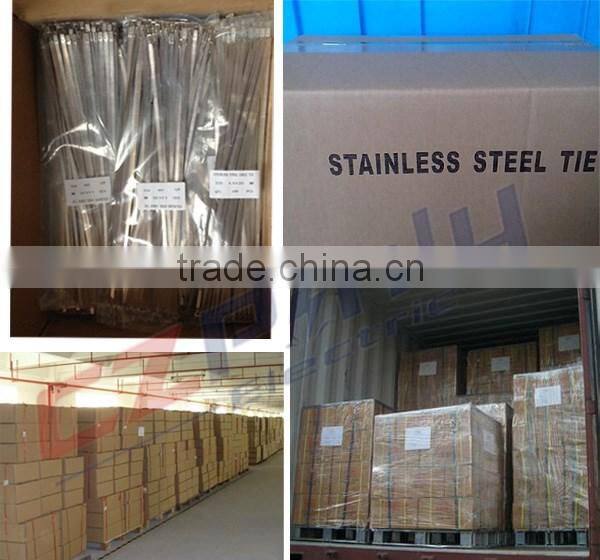

| Packaging | (1)Standard packing:100pcs per bag+ Neutral label +Strong carton. |
| (2)Customized packing:OEM label, inner box,etc. | |
| Transportation | (1)Big order by sea/air,small order by express(Fedex,UPS,TNT,DHL,Aramex,EMS,Toll). |
| (2)We are a VIP of courier company and can offer the economic freight for you. |
If you need more cable accessories,pls click the below link.
Cable accessories Link:
http://pinly.en.china.cn/productgrouplist-802612417/Electrical_Products.html

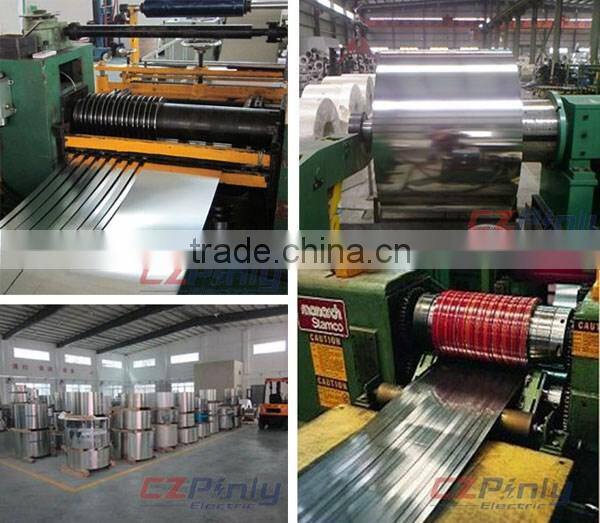

Stainless steel cable tie production workshop:
Q1:Are you a manufacturer or trading company?
A1:We are a manufacturer with professional R&D team, and providing OEM & ODM services.
Q2: Where is your factory located?
A2:Our factory located in "China Electric Capital" - Liushi town Yueqing City.Welcome to visit us.
Q3:Do you charge for samples and freight cost?
A3:In generally,samples will be FREE.Will take reasonable charge if the samples are high-cost
and will refund from official order,the freight will be bear by yourself or send via your account.
Q4:Are your products conforming to our standards?
A4:Yes,our products can pass the testings as your requires,such as CE,RoHS, ABS, DNV etc.
Q5:How do you control the quality?
A5:Sample approval first,the goods will be made same as sample and strict compliance with
full QC systems,such as IQC,IPQC,FQC,OQC.
Q6:What's MOQ?
A6:We could accept small trial orders.
Q7:Can you give us a favorable discount?
A7:Of course,a favorable discount will be offered if the quantity is sizable.
Q8:How do you ship the goods and how long does it take?
A8:For small order usually ship by UPS,FEDEX,TNT,DHL,TOLL,EMS etc.It usually takes 5-7
days to arrive.For big order,will take around 20-35 days by sea,5-10 days by air.
Q9: What is your payment terms?
A9: T/T,Trade Assurance,Paypal,Western Union,Escrow,Cash can be accepted.
Q10: How does the Trade Assurance work?
A10: We can accept an order which the total amount above $3000 by Trade Assurance,
you could place the order online and pay the deposit to alibaba to assure the delivery
time, quality,and mutual trust.
