Home > Construction & Decoration > Heat Insulation Material > Glass Wool > Insulation Tape EPR Tape Self-fusing Tape
US$ 0.5 - 1.5
MOQ: 5000 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
MAXWEL
Model Number:
KE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/shanghai/shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sealing Tape Self Fusing Tape,self Amalgamating Tape,EPR TapeUS$ 0.5 - 1.5MOQ: 5 Rolls -
Insulation Tape Self Fusing Tape,self Amalgamating Tape,EPR TapeUS$ 0.5 - 1.5MOQ: 5000 Rolls
-
High Voltage Self Amalgamating Tape EPR TapeUS$ 0.5 - 1.5MOQ: 1 Roll
-
High Voltage Insulation Tape Self Amalgamating Tape EPR TapeUS$ 0.5 - 1.5MOQ: 5 Rolls
-
Self Fusing Tape Self Amalgamating Tape Epr TapeNegotiableMOQ: 500 Rolls
Place of Origin
Anhui, China
Brand Name
MAXWEL
Model Number
KE
Type
Insulation Tape
Material
Other, EPR, EPR
Application
High Voltage
Rated Voltage
69KV
| Wholesale In China self amalgamating fusing tape |
Product Description of self amalgamating fusing tape
| Specifications | 1.Self amalgamating EPR insulation tape | |||
| 2.Stable Quality | ||||
| 3.Strong Elongation | ||||
| 4.Good Tensile Strength | ||||
| Features | 1. Non-vulacanizing and highly conformable | |||
| 2. Physical and electrical properties are unaffected by the degree of strength | ||||
| 3. Can be stretched up to 800% to make void-free | ||||
| 4. Moisture-resistant insulation, self-amalgamating tape | ||||
| 5. Excellent electrical properties | ||||
| Size | 19mm*0.76mm*9.14m | |||
| 25mm*0.76mm*9.14m | ||||
| 38mm*0.76mm*9.14m | ||||
| 50mm*0.76mm*9.14m | ||||
| Special size tape can be requested | ||||
| Application | 1. Primary insulation for make stress cones on cables up to 35kv | |||
| 2. Primary electrical insulating for cable jointing and terminating up to 69kv | ||||
| with up to 90 degree continuous operating temperature and 130 degree | ||||
| emergency overload temperature | ||||
| Model | Tensile Strength (Mpa) | Elongation (%) | Disruptive Voltage (KV/MM) | |
| KE10 | 1.5 | 500 | 5 | |
| KE20 | 1.5 | 600 | 11 | |
| KE30R | 1.8 | 800 | 32 | |
| KE30P | 1.8 | 800 | 35 | |

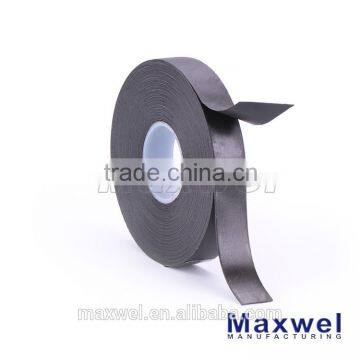

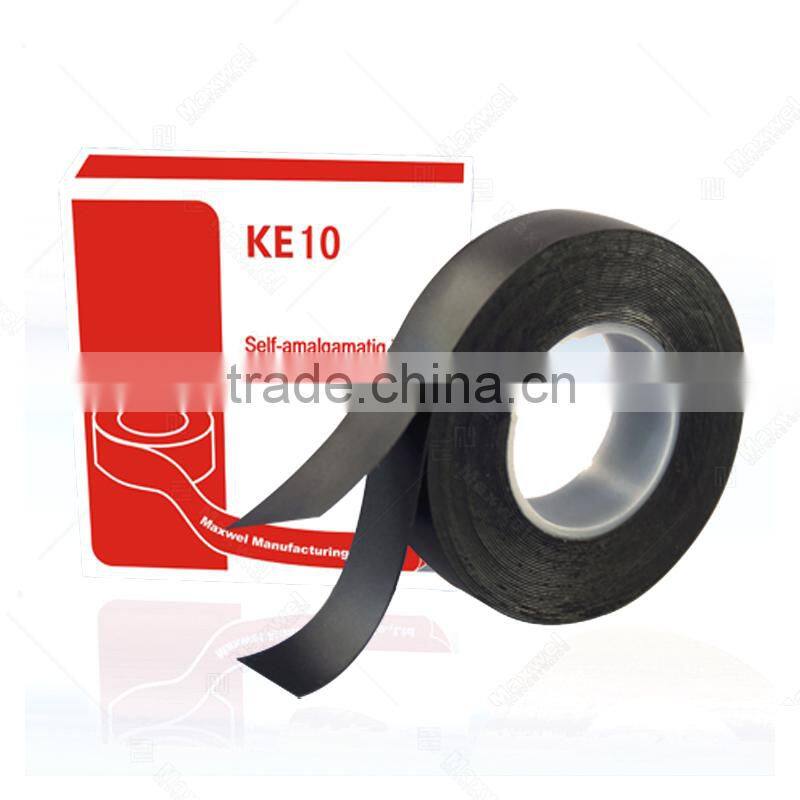

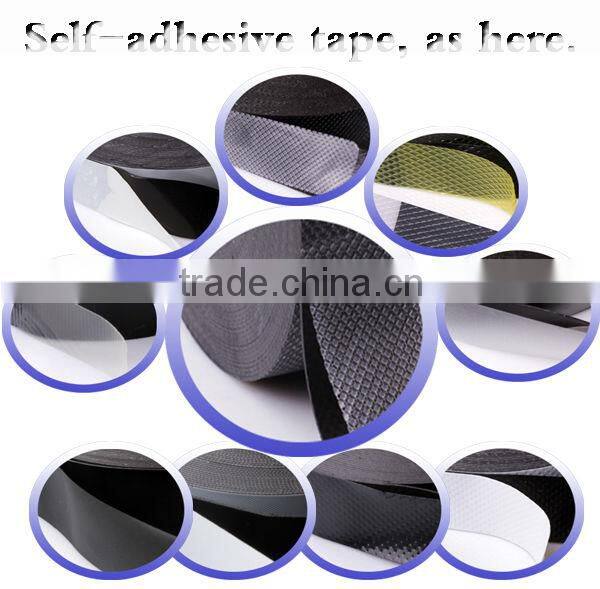

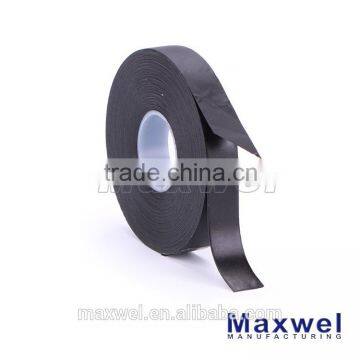

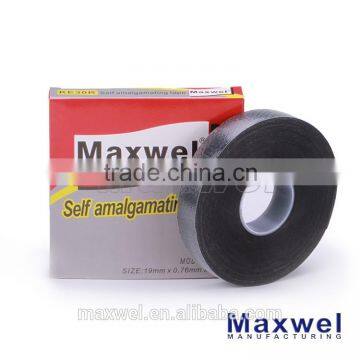

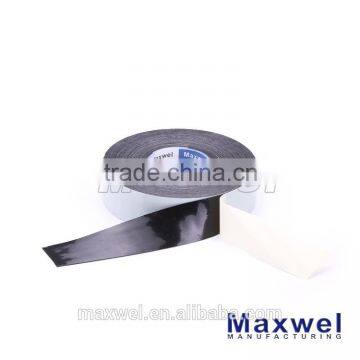

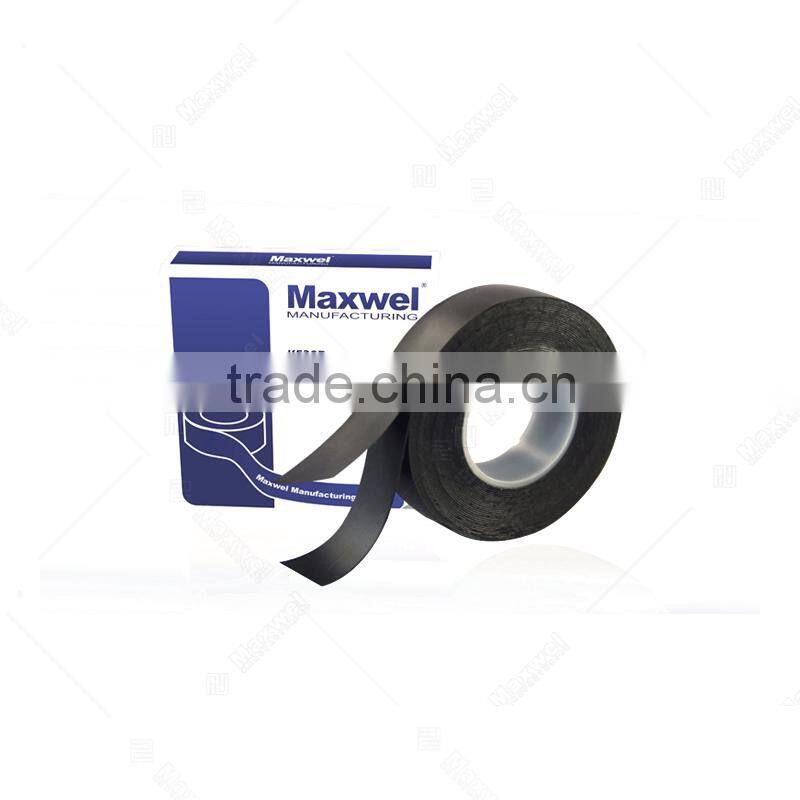

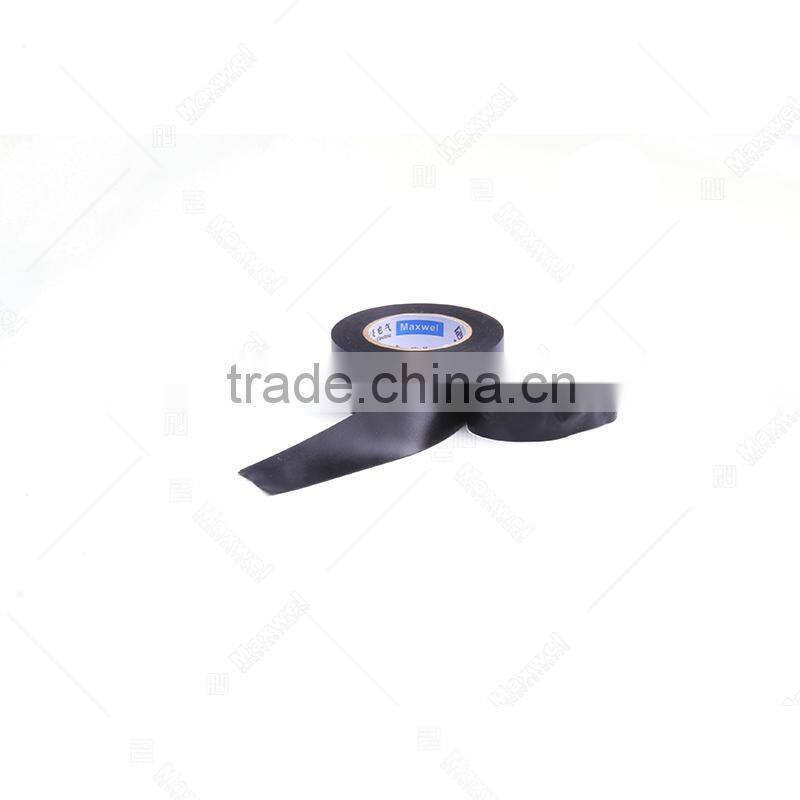

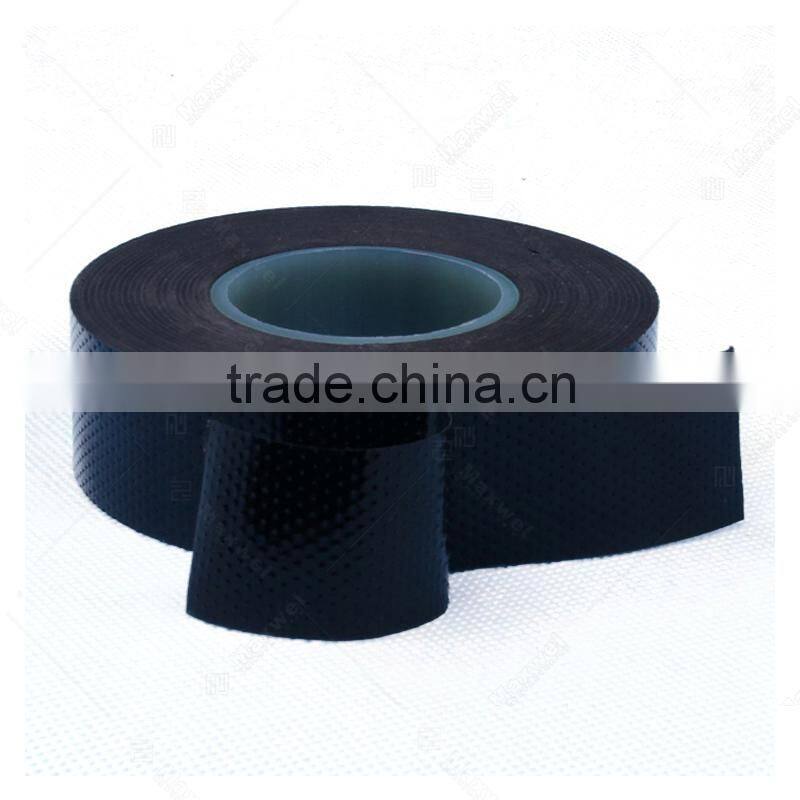

Product Pictures of self amalgamating fusing tape

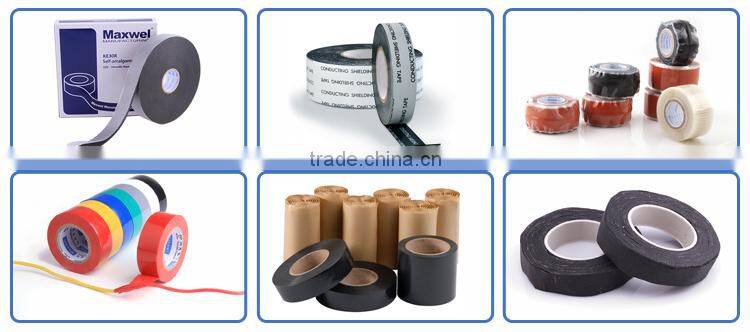

More Products for You to Choose
About us
Yueqing Zhimei Electric Co., Ltd. efficiently produces a wide range of tapes and electrical products.Our products meet various international standards for easier market entry. A large range for your selection.You can come to Yueqing Zhimei Electric Co., Ltd. for self-amalgamating, semi-conducting, butyl,mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers,residual current circuit breakers, residual current circuit breakers with over-current protection,switch disconnections, distribution boxes and more.
|

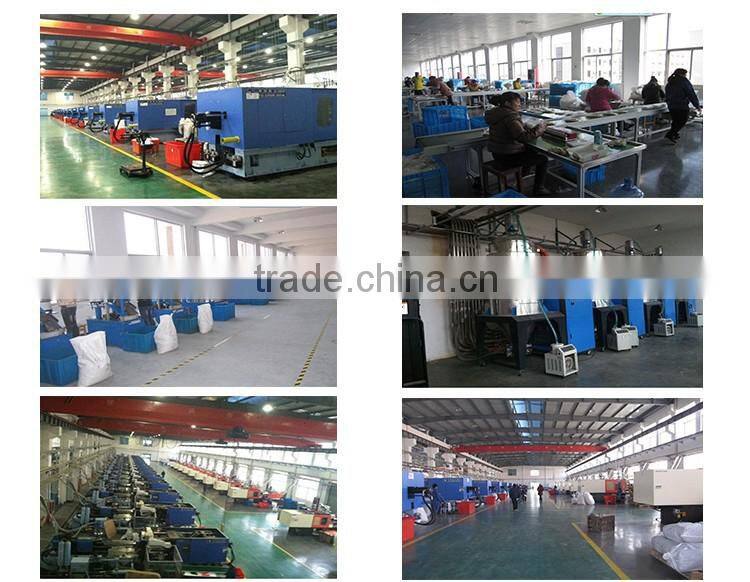

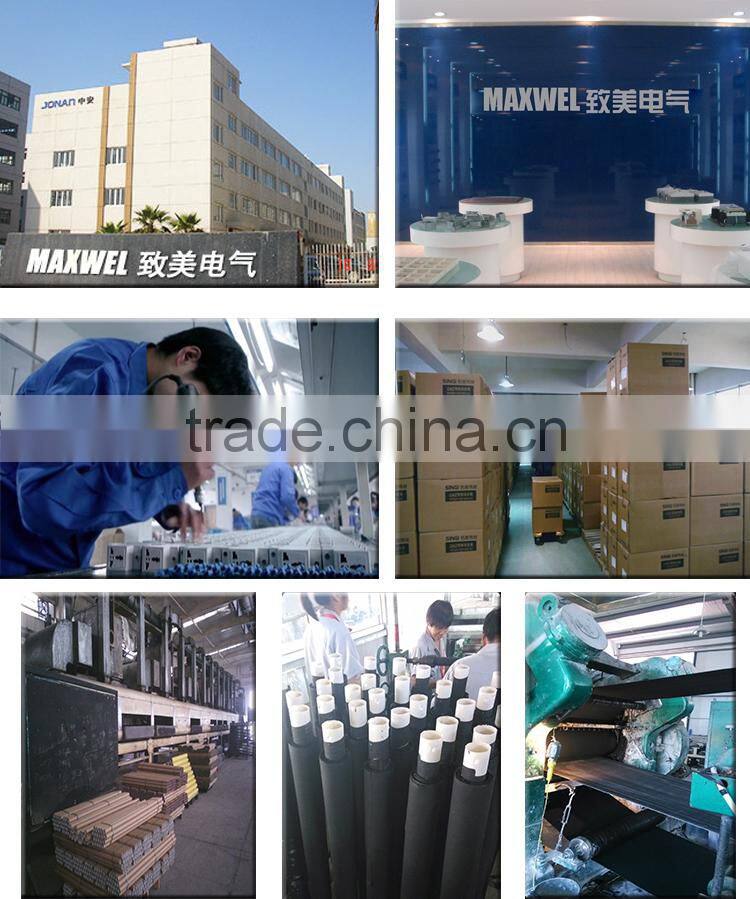

Production Line
Package & Shipping
| We are looking forward to establishing a long-term partnership with you ! |
