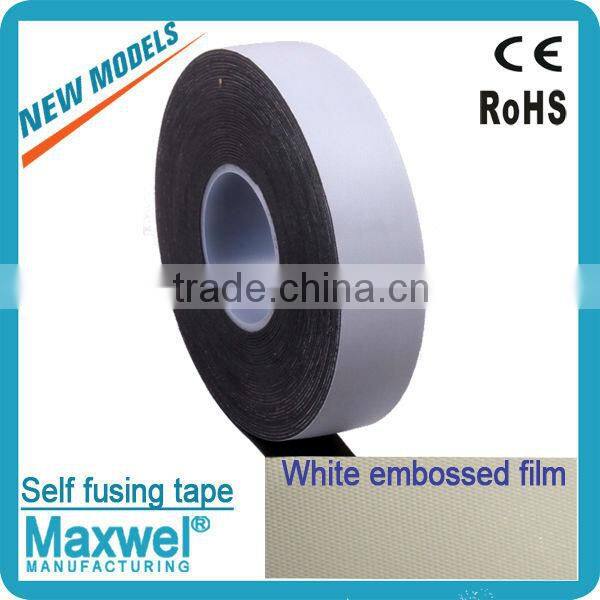

High Voltage Insulation Tape Self Amalgamating Tape Pib Tape
Negotiable
MOQ: 2 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Maxwel
Model Number:
KE30P
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KE30R High Voltage Insulation Self Fusing TapeNegotiableMOQ: 50000 Rolls -
Electrical Splicing Rubber Tapes for Insulating Rubber TapeNegotiableMOQ: 2000 Rolls
-
Rubber Splicing Tapes Rubber Roller TapeNegotiableMOQ: 2 Rolls
-
Self Fusing Tape Insulating Rubber TapesNegotiableMOQ: 2000 Rolls
-
Self Fusing Tape Rubber Tape EPR TapeUS$ 0.5 - 1.5MOQ: 500 Rolls
Place of Origin
Zhejiang, China
Brand Name
Maxwel
Model Number
KE30P
Type
Insulation Tape
Material
Other, rubber
Application
High Voltage
Rated Voltage
5-35kv
Tensile Strength
800%, 1.7MPA
Specifications
High voltage self fusing tapeNormal size: 19mm x 0.76mm x 9.14m
Elongation: 500%-800%
Disruptive voltage: 5KV-35KV
Hot sell
High Voltage insulation tape, Self Amalgamating Tape, PIB tape, self fusing rubber tape
Features
• Non-vulacanizing and highly conformable
• Physical and electrical properties are unaffected by the degree of stretch
• Can be stretched up to 800% to make void-free
• Moisture-resistant insulation, self amalgamating tape
• Excellent electrical properties
Application
• Primary insulation for make stress cones on cables up to 35KV
• Primary electrical insulation for cable jointing and terminating up to 69KV with up to 90°c. Continuous operating temperatures and 130°c emergency overload temperature.
Sizes
19mm x 0.76mm x 9.14m
25mm x 0.76mm x 9.14m
38mm x 0.76mm x 9.14m
50mm x 0.76mm x 9.14m
Special size can be requested.
| Model | Tensile strength | Elongation | Disruptive voltage |
| (Mpa) | (%) | KV/mm | |
| KE10 | 1.5 | 500 | 5 |
| KE20 | 1.5 | 600 | 11 |
| KE30R | 1.8 | 800 | 32 |
| KE30P | 1.8 | 800 | 35 |
