MTB-002 Brass screw terminal block connector

Specifications

Brass terminal block
Made from brass and nylon insulated base
Voltage:250V - 450V
Quality warranty.
Competitive prices

Brass terminal block



PA, polyamide 66, 94-2 grade, inflaming retarding, working temperature: -30°c to 110 °c



ABS, good resist disslove, good bounce impact fore, working temperature: -20°c to 100°c



Brass screw in iron plated zinc



Voltage: 250V-450V



Color: according sample picture or customized.



Quality warranty!

Competive price!

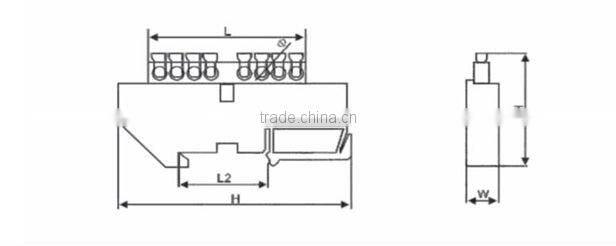

Item NO.	Spec.	L	L1	l2	H	W	Φ	Screw Size	Plastic Setting
	W×H	mm
MTB-002-4P	8×12	44	59.5	48.5	32	12.5	7	M5×10	PA,ABS
MTB-002-6P	8×12	54	76.5	65.5	32	12.5	7	M5×10	PA,ABS
MTB-002-8P	8×12	71	93.5	82.5	32	12.5	7	M5×10	PA,ABS
MTB-002-10P	8×12	87	110.5	99.5	32	12.5	7	M5×10	PA,ABS
MTB-002-12P	8×12	105	127.5	116.5	32	12.5	7	M5×10	PA,ABS
