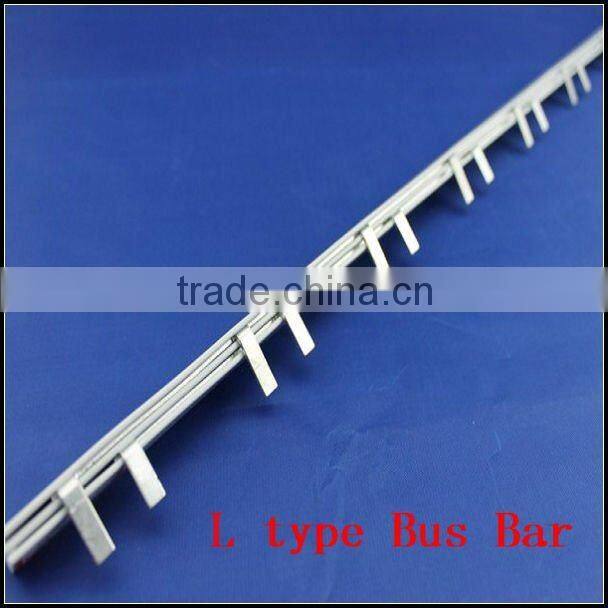

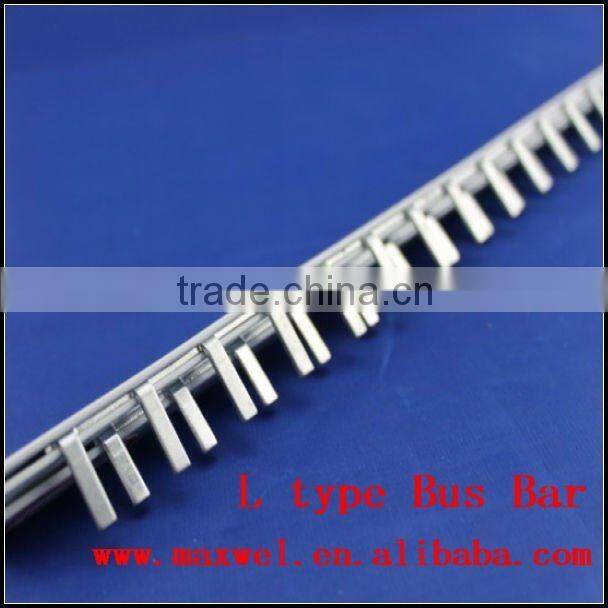

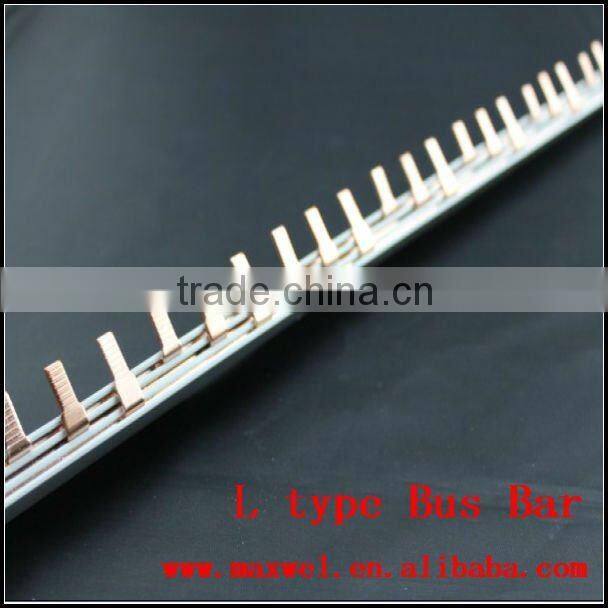

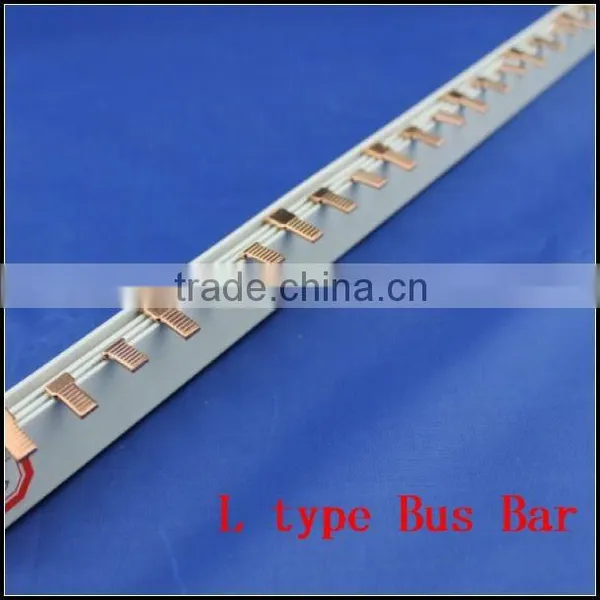

Home > Electrical & Electronics > Connector & Terminals > Terminal Blocks > C45 Type Bus Bar Connector
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MAXWEL
Model Number:
L type bus bar, L type bus bar series
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
MAXWEL
Model Number
L type bus bar, L type bus bar series
Specifications
PVC/PC/ABSC45 support bus bar
CE/RoHs certificate
415V Nominal Voltage
36kv/mm disruptive strength
Product Introduction:
1. The Present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area
2. low power consumption and temperature-rise
3. Our company products almost all kinds of busbars for MCB,which have good versatility and practility.It has advantages of security and convenience to install and widely used in construction electrical devices,such as low-voltage power box ,distribution box,illuminatde box and so on.
| Item No. | Phase | No. of Pins | Rated Current(A) | Thicknss*Height (mm) |
| L-101 | 1 | 54 | 63-80 | 1.5*9 |
| L-102 | 2 | 54 | 63 | 1.5*7 |
| L-103 | 3 | 54 | 50 | 1.4*7 |
| L-104 | 4 | 56 | 40 | 1.2*7 |
| L-201 | 1 | 54 | 63-100 | 1.5*9 |
| L-202 | 2 | 54 | 63 | 1.5*7 |
| L-203 | 3 | 54 | 50 | 1.4*7 |
| L-204 | 4 | 56 | 40 | 1.2*7 |
Note: There is height 5mm, 7mm, 9mm for choice, pls note when ordering
