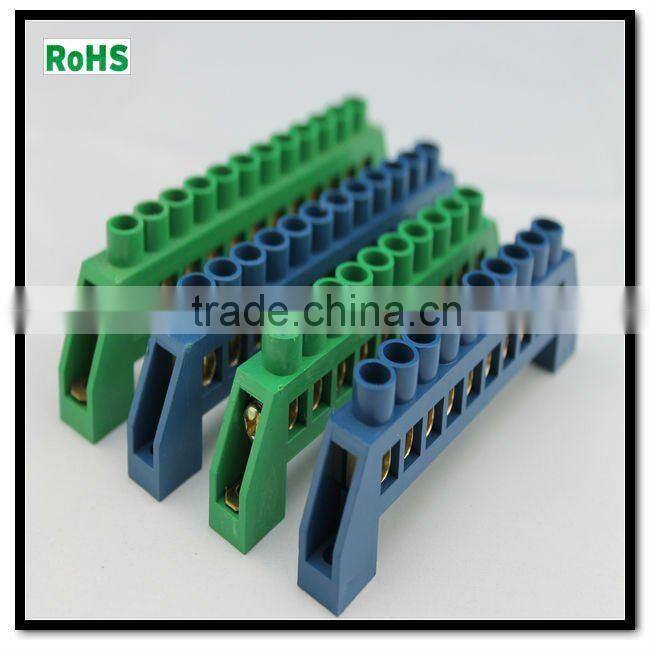

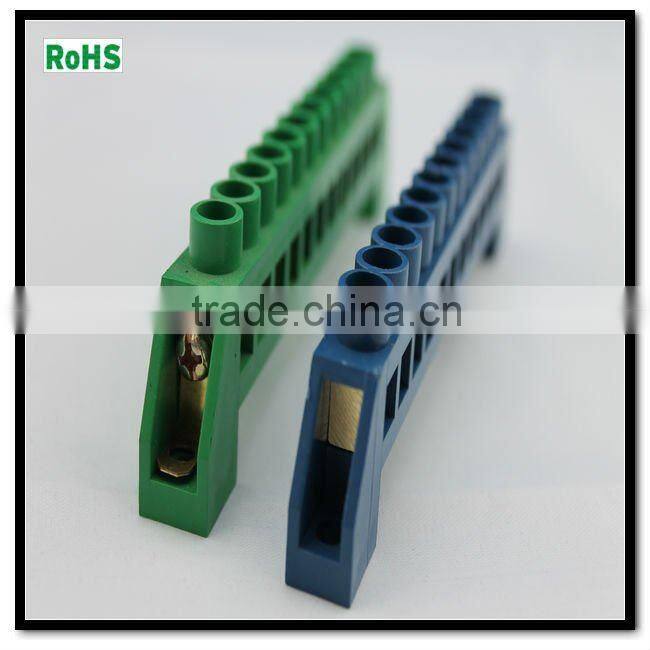

Screw Terminal 12p

Specifications

Insulated terminal block
Made from brass and nylon insulated base
Voltage:250V - 450V
Stable quality
Competitive price

PA ,Polyamide 66,94-2 grade .Inflaming retarding,Working termpertaure:-30°C to 110°C

PE,Polypropylene,Inflaming retarding,low transparency,low rigidity,goog bounce impact force,Working     termpertaure:-30°C to 100°C.

ABS, good resist dissolve ,good bounce impact fore,Working termpertaure:-20°C to 100°C.

Brass.Scews is iron plated zinc

Voltage:250 to 450V

Color: according to sample pictures or customized.







OEM Service Offered,Buyer Label Offered , we can offer samples or the drawings to  process production according to the customer, supply different size,such as ,different  length ,width,hole diameter.
Please send your drawings,requirements or specifications.

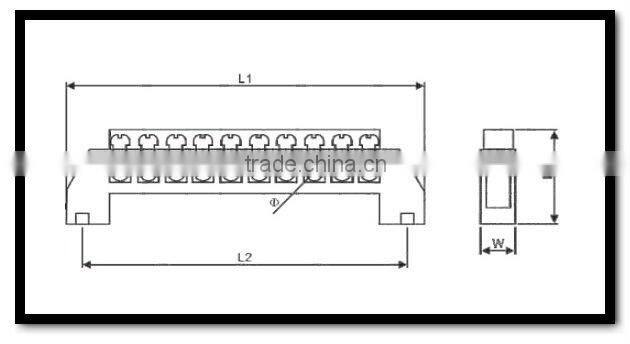

Item NO.	Spec.	L	L1	l2	H	W	Φ	Screw Size	Plastic Setting
	W×H	mm
BC-002-4P	8×12	44	59.5	48.5	32	12.5	7	M5×10	PA,ABS
BC-002-6P	8×12	54	76.5	65.5	32	12.5	7	M5×10	PA,ABS
BC-002-8P	8×12	71	93.5	82.5	32	12.5	7	M5×10	PA,ABS
BC-002-10P	8×12	87	110.5	99.5	32	12.5	7	M5×10	PA,ABS
BC-002-12P	8×12	105	127.5	116.5	32	12.5	7	M5×10
