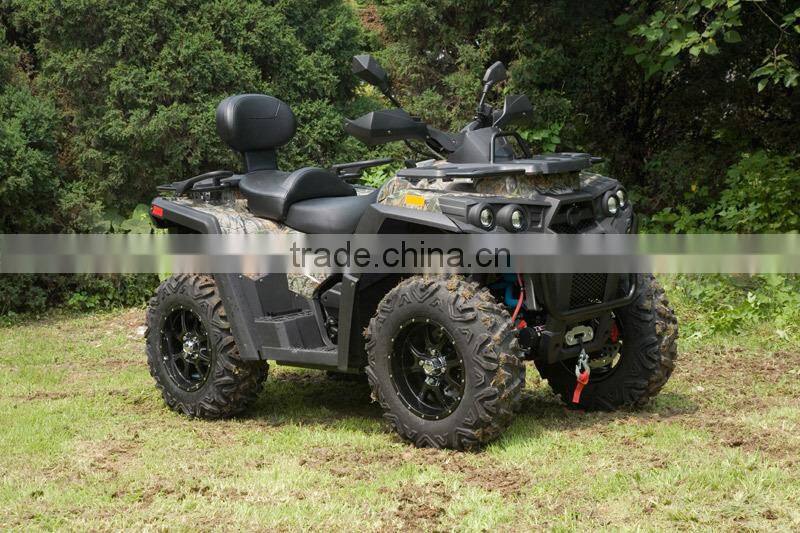

800cc Utility Atv( ATV A6-1)

800cc Utility Atv( ATV A6-1) thumbnail-1
800cc Utility Atv( ATV A6-1) thumbnail-2
800cc Utility Atv( ATV A6-1) thumbnail-3
800cc Utility Atv( ATV A6-1) photo-1

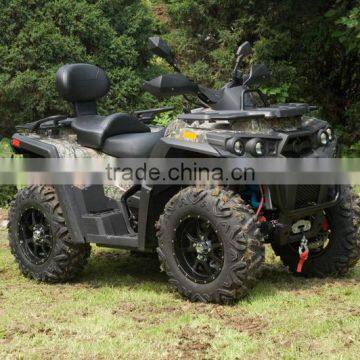

800cc Utility Atv( ATV A6-1) photo-2

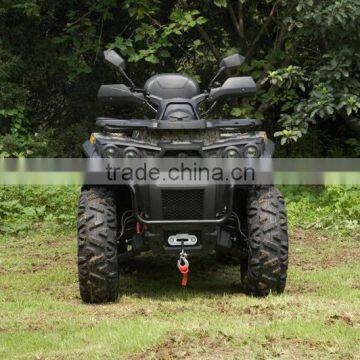

800cc Utility Atv( ATV A6-1) photo-3
US$ 6,000 - 7,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Wenling Sanway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Engine Type 4 Stroke
Transmission Type Manual
Transmission System Shaft Drive
Certification EPA
Brand Name SANWAY
Place of Origin Zhejiang, China
Model Number ATV A6-1
Specification-Vehicl



Engine type : V800 V-twin, Four-stroke, Liquid-cooled

Displacement : 800cc

Max power: 44kw/6500 RPM 60HP

Max torque: 73N.m/5000 RPM

Valve Configuration: SOHC

Compression ratio: 10.3:1

FUEL SYSTEM

Fuel Delivery System : Fuel Pump

Choke System : N/A

Fuel capacity : 24.5L

DRIVETRAIN

Driveline Type : 2WD-4WD

Final Drive: Shaft, Selectable 4x4, Front Differential Lock

Transmission: CVT

Gear Selection : H, L, N,P, R

ELECTRICAL SYSTEM

Forward Lights: Headlights-High & Low Beam

Rear Lights: Brake Lights & Left/Right Signal lights

Starting system: Electric start

Ignition system : EFI-DELPHI

SUSPENSION / BRAKES

Suspension Front/Rear : Independent double wishbone

Brakes Front/Rear: Dual Hydraulic Disc Twin Piston/Hydraulic Disk

TIRES

Front Tread : 960mm

Rear Tread : 920mm

Front & Rear tire size: 26×9-14 / 26×11-14

MISC

Top speed : 90km/h

Manufacturers Defect Warranty : 6 Months

Loading information : 20GP:4units;40GP:9units;40HQ:18units;45HQ:20units

Dry weight : 415kgs

Shipping weight : 489kgs

Fuel consumption: 6.8L/100Km

Wheelbase: 1490mm

Vehicle dimension (LxWxH) : 2270x1210 x1430mm

Packing size : 2320x1280x1225mm

Ground clearance : 295mm

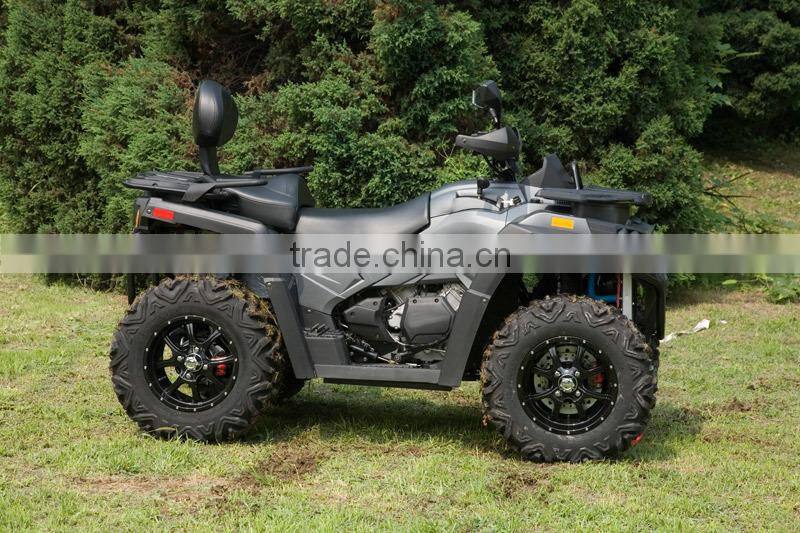

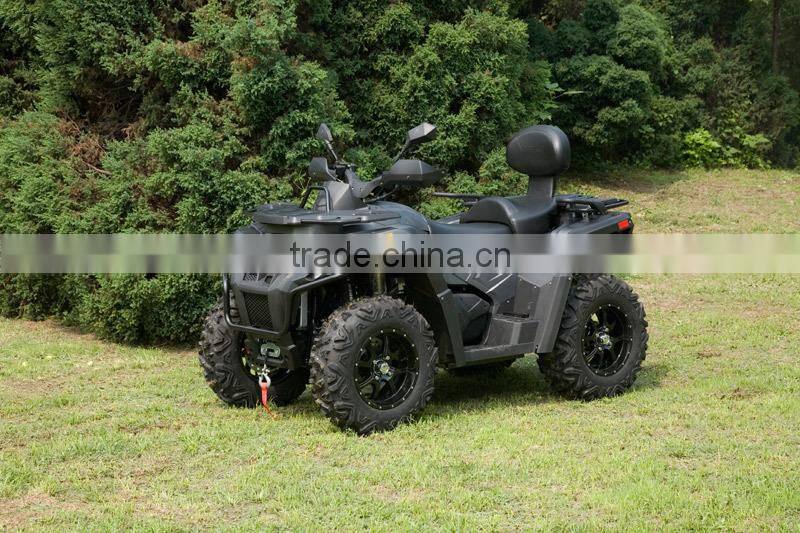

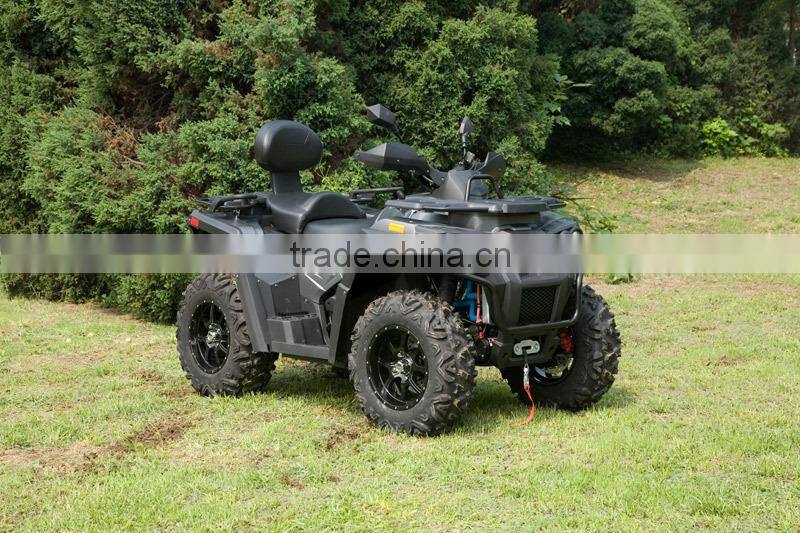

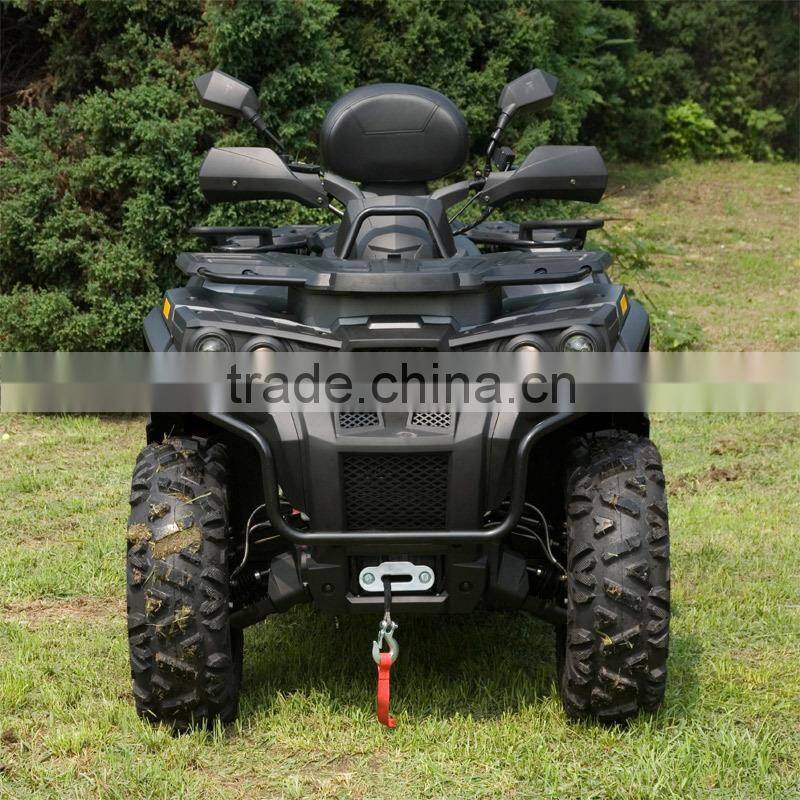

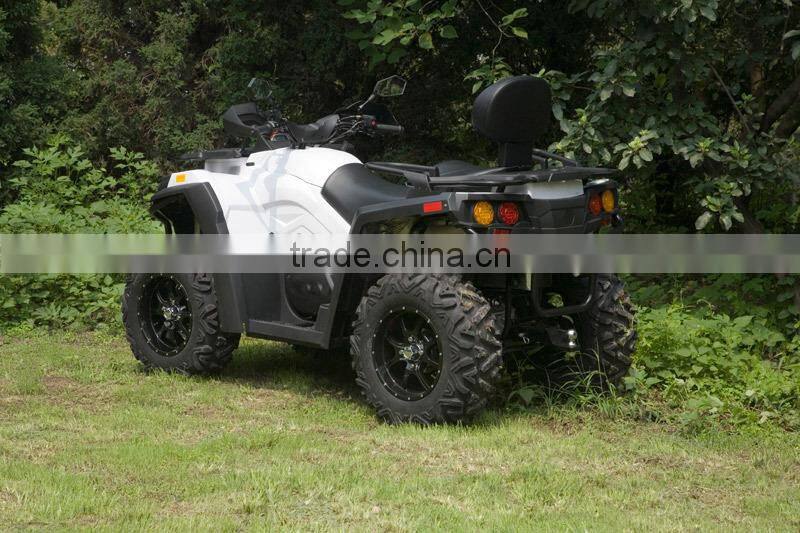

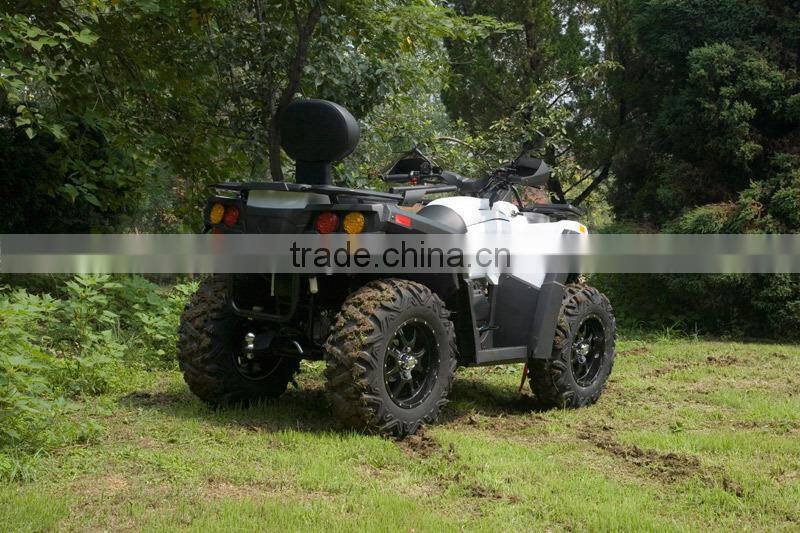

Detail Images-v

 800cc utility atv( ATV A6-1)800cc utility atv( ATV A6-1)800cc utility atv( ATV A6-1)800cc utility atv( ATV A6-1)800cc utility atv( ATV A6-1)800cc utility atv( ATV A6-1)800cc utility atv( ATV A6-1)

FAQ

1. Q: Can I get some samples?

A: We are honored to offer you samples for quality check.

2. Q: Do you have the products in stock?

A: No. All bikes are to be produced according to your order including samples.

3. Q: What’s the delivery time?

A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.

4. Q: Can I mix different models in one container?

A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

5. Q: How does your factory do regarding quality control?

A: Quality is priority. Our sanway always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

6. Q:What's your warranty terms?

A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.

7. Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. SANWAY have done alibaba, you will see that we have never got any complaint from our customers.
