Split Core Current Transformers

Split Core Current Transformers thumbnail-1
Split Core Current Transformers photo-1
US$ 12 - 80 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Maxwel
Model Number:
MS1
Contact Supplier Request Quote Chat Now
Yueqing Maxwel Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Maxwel
Model Number MS1
Usage Power
Phase Other

Specifications

Split core current transformers
CE, RoHS certified
ISO9001 factory
Quality guarantee
Samples available free

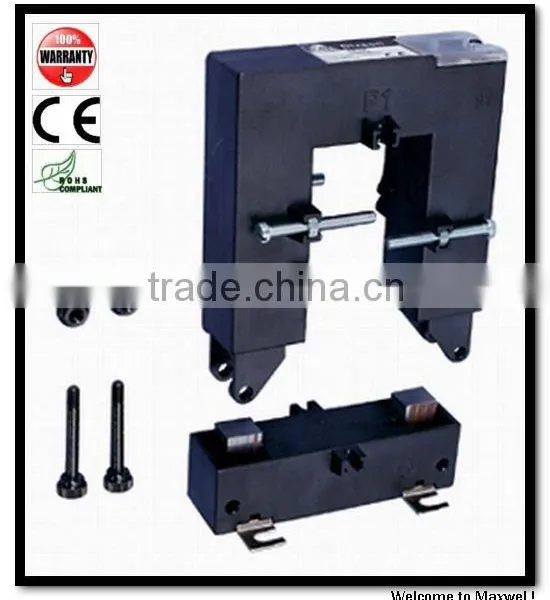

MS1 Split core current transformers

MS1 series of current transformers have been especially designed to facilitate their installation in new or already existing networks.

The split core be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals.

MS1 series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.



Main features of MS1 current  transformers:
-Small size and easy mounting
-Wide inner window, allowing clamping of big cables or bus bars
-Wide range of sizes to accomodate all the existing installations
-High accuracy and reliability



 Mian specification

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:		 100A-5000A
5A, 1A
IEC44-1, BS7626
0.72/3kV
50/60Hz
1VA-30VA
0.5, 1.0, 3.0
Ith=100xIn
FS<5



Current Range

Model
Nominal
current ratio

Class:0.5
VA
MS1-23
100
-
150
-
200
-
250
-
300
1.5
400
2.5
MS1-58
250
1.5
300
1.5
400
1.5
500
2.5
600
2.5
750
2.5
800
2.5
1000
5
MS1-88
250
1.5
300
1.5
400
1.5
500
2.5
600
2.5
750
2.5
800
2.5
1000
5
MS1-812
500
2.5
600
2.5
750
2.5
800
2.5
1000
6
1200
6
1250
7.5
1500
7.5
MS1-816
1000
1.
1500
15
2000
15
2500
15
3000
20
4000
20
5000
20



Samples available in anytime, freight collect.

MOQ: 50PCS



For more information, please feel free to contact us.
