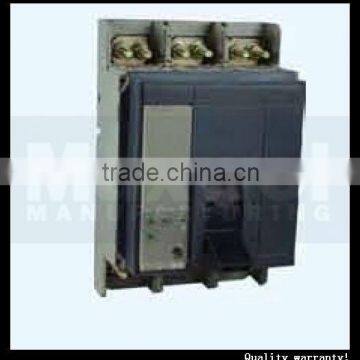

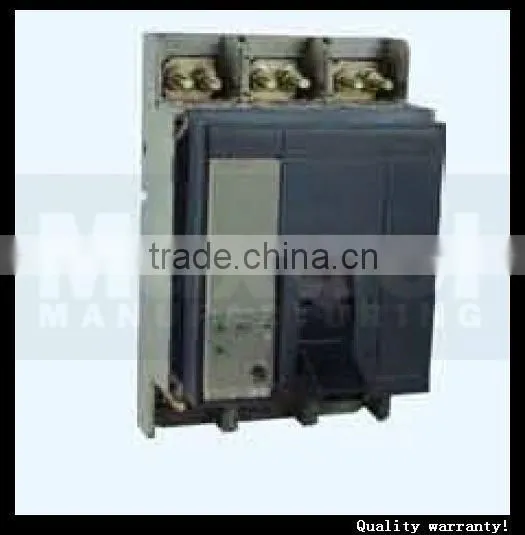

CDSM2-160/4P High Quality MCCB Circuit Breaker

Specifications

Schneider electrical MCCB circuit breaker
Short-circuit and overload protection
Porpular in UAE
Quality warranty.
Hot sell

Moulded case circuit breakers, Circuit breaker, breaker, schneider MCCB circuit breaker



 Installation type of MCCB: MCCB are suitable for vertical or harizontal installation



According to use of MCCB: Distribution circuit protection type, motor protection type

According to connection way: Front panel connection, back panel connection, plug-in connection

According to operation way: For direct handle operating, for external rotary handle operating, for motor operation

According to overload release type: magnetic release(only instantaneous) the modynamic magnetic type(dual)

According to number of poles: two poles, three poles, four poles



The neutal pole(N pole) of four pole MCCB has four types

Type A: No overload release on N pole, which is making at the time; not closing and opening with the other three poles

Type B: No overload release on N pole, which closing and opening with the other three poles

Type C: With overload release on N pole, which closing and opening with the other three poles

Type D: With overload release on N pole, which making all time: not closing or opening with the other three poles



 Main Technical Specifications

Type	Rated Current (A)	Pole number	Rated insulating voltage(V)	Rated operating voltage(V)	Arcing-over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servues short circuit breaking capacity (KA)	Operation performance
								on	off
CDSM2-100D	12.6, 16, 20, 25, 32, 40, 50, 63, 80, 100	three or foul poles	950	690<	0	18	18	1500	8500
CDSM2-100N						25	25
CDSM2-100H						70	70
CDSM2-100L						150	150
CDSM2-160D	16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160					25	25	1000	7000
CDSM2-160N						36	36
CDSM2-160H						70	70
CDSM2-160L						150	150
CDSM2-250D	160, 180, 200, 225, 250					25	25	1000	7000
CDSM2-250N						36	36
CDSM2-250H						70	70
CDSM2-250L						150	150
CDSM2-400D	200, 225, 250, 300, 315, 400					35	35	1000	4000
CDSM2-400N						45	45
CDSM2-400H						70	70
CDSM2-400L						150	150
CDSM2-630D	315, 350, 400, 500, 600, 630					35	35	1000	4000
CDSM2-630N						45	45
CDSM2-630H						70	70
CDSM2-630L						150	150
