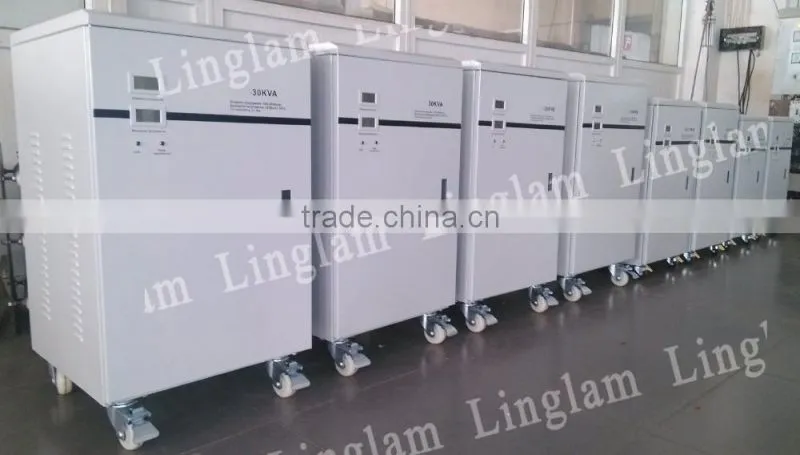

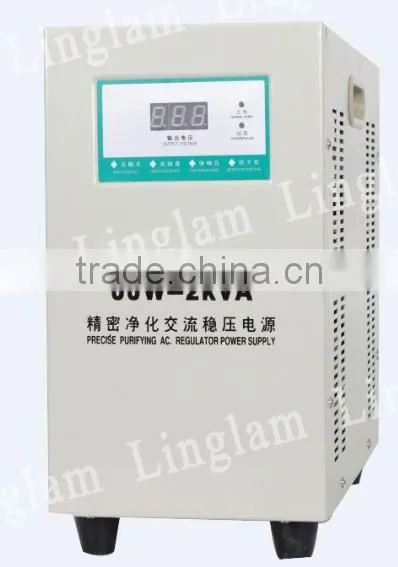

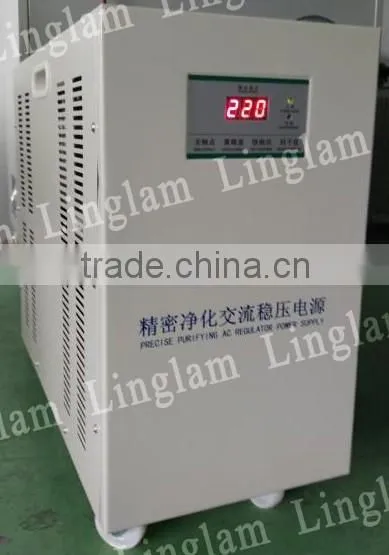

JJW series digital display automatic voltage correction avr

JJW Series Single Phase Precise And Purified Automatic Voltage Stabilizer & Regulator adopts the international advanced sine energy distribution formula of power source regulation technology, it’s main circuit is parallel composed by sine energy distributor and large capacity LC filter, when the output voltage changed caused by input voltage or load current fluctuation, the PCB control triac conduction angle to change current, then change the compensation voltage value and phase position, finally make the output voltage stable, meanwhile, LC filter will do waveform-correction to the output voltage and absorb grid noise, peak interference.

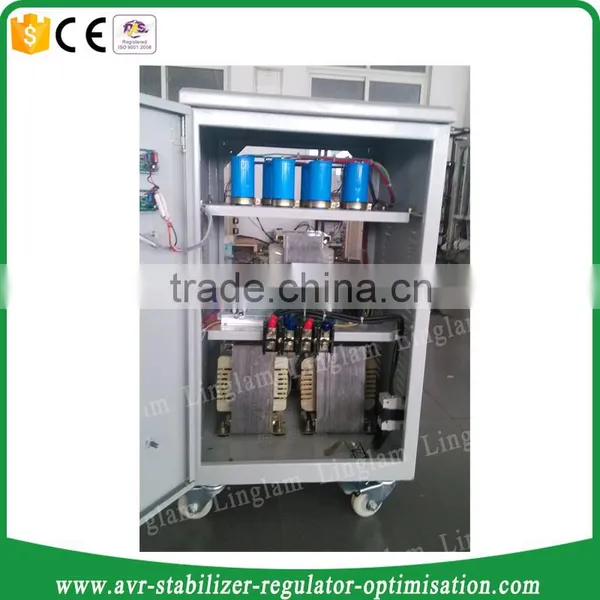

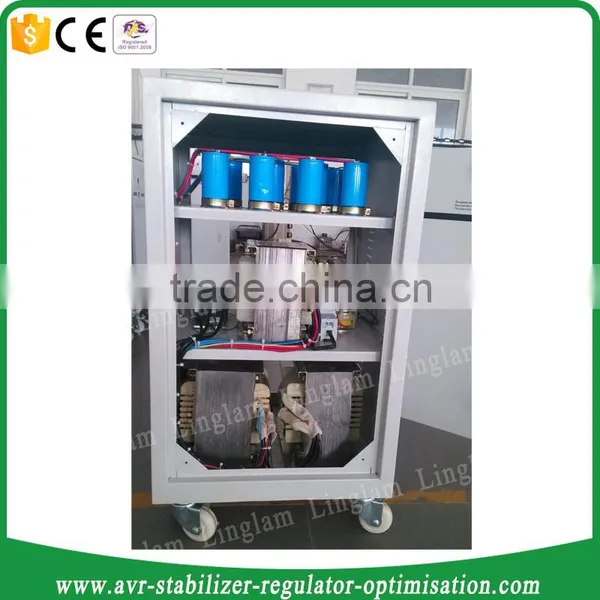

1. PCB (Main Board): Advanced integrated circuit board, carefully selected electronic components, stable and reliable performance.

2. Electrolytic Capacitor: High quality, efficiently suppress power grid noise, peak voltage & current, etc, also has certain lightning protection ability.

3. Heat Radiator

4. Triac

5. Resistor

6. Power Supply Transformer

7 & 8. Transformer, Electric Reactor: Magnetic saturation ferrimagnetic core transformer, enough capacity and more stable. Strong anti-overloading and anti-electromagnetic interference ability.

JJW and JSW are extremely suitable for precise instrument, testing & measurement equipment, scientific research equipment, medical equipment, computer and telecommunications & IT project.
