Help CenterMoving Head Led Beam Light 160W 37*3W Imported Leds Linear Dimming Narrow Bean Angle 9/12CH DMX512 Master-slave Stand Alone
Related Products
-
High Quality Stage Light Console DMX Controller 1024US$ 1 - 1,700MOQ: 1 Piece -
2016 Hot Sell 8*10W RGBW Rolling LED Spider Sharp Beam LightUS$ 199 - 299MOQ: 1 Piece
-
New 2016 PVC Rubber Wire Cover/ 2 Channels Stage Cbale ProtecterUS$ 35 - 45MOQ: 1 Piece
-
Guangzhou Laser Used Stage Lighting For SaleUS$ 1 - 700MOQ: 4 Pieces
-
Top Selling Products 2015 200W Cool Warm White 2in1 Spot LED Profile Theatre LightingUS$ 300 - 350MOQ: 1 Piece

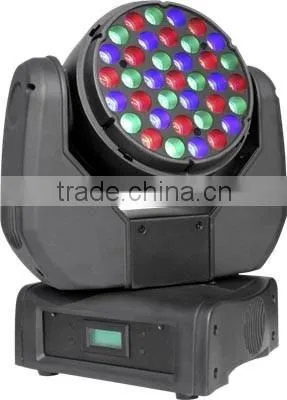

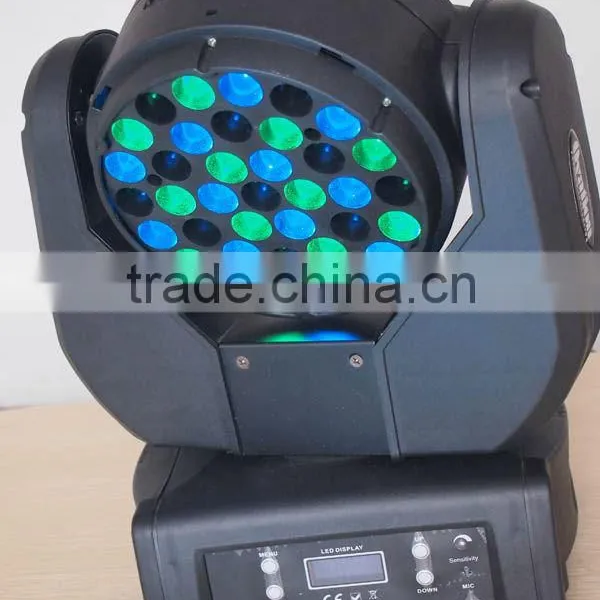

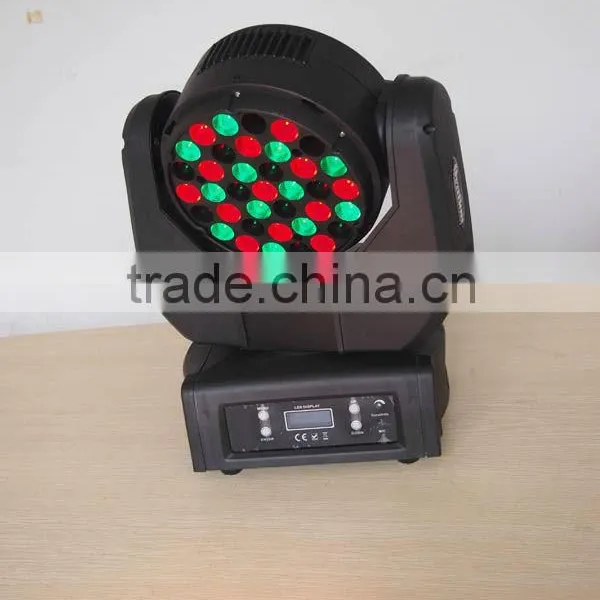

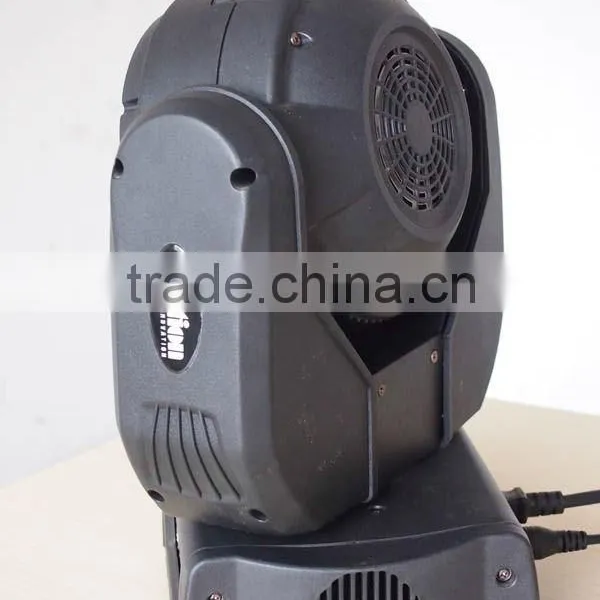

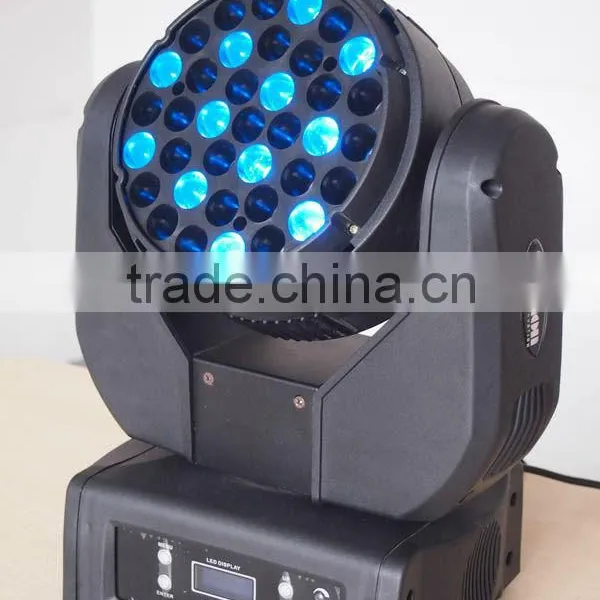

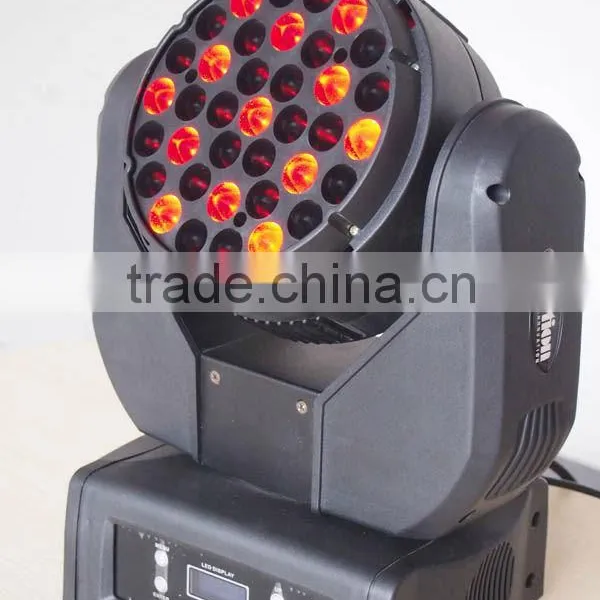

Moving head Led beam light
Model No:POP337
Input Voltage:AC100-240V,50/60Hz
Power consumption:160W
Light source:37*3W Cree Leds(R13+G12+B12)
Dimming:0-100% linear dimming
Pan:540°
Tilt:270°
Beam angle:8°
Control mode:DMX512/Master-slave/Stand alone
Channel:9/12CHs
Channel instruction as the following:
| Channel | Value | Function |
| 1 | 000-255 | Dimmer |
| 2 |
000-009 010-255 |
Strobe No fumction 1-20Hz |
| 3 |
000-005 006-010 011-030 031-050 051-070 071-90 091-110 111-130 131-150 151-170 171-200 201-205 206-210 211-215 216-220 221-225 226-230 231-235 236-240 241-245 246-250 251-255 |
Color/White Macro No function Full power Red 100% /Green up /Blue 0% Red down/Green 100%/Blue 0% Red 0%/Green 100%/Blue up Red 0%/Green down/Blue 100% Red up/Green 0%/Blue 100% Red 100%/Green 0%/Blue down Red 100%/Green up/Blue up Red down/Green down/Blue 100% Red 100% Green 100% Blue 100% White 100% White1:3200K White2:3400K White3:4200K White4:4900K White5:5600K White6:5900K White7:6500K White8:7200K White9:8000K White10:8500K White11:10000K |
| 4 | 000-255 | Red |
| 5 | 000-255 | Green |
| 6 | 000-255 | Blue |
| 7 | 000-255 |
Pan Clockwise rotate 0-540° |
| 8 | 000-255 |
Tilt Anti-clockwise rotate 0-270° |
| 9 |
000-019 020-039 040-059 060-079 080-099 100-119 120-139 140-149 150-159 160-169 170-179 180-199 200-219 220-255 |
Control No function Pan/Tilt black activated Pan/Tilt black deactivated Fan auto Fan slow Fan normal Fan fast Auto1(Activated after 3 secs) Auto2(Activated after 3 secs) Test(Activated after 3 secs) Custom(Activated after 3 secs) No function Reset(Activated after 3 secs) No function
|
| Channel 12 | Value | Function |
| 1 | 000-255 | Dimmer |
| 2 | 000-009 010-255 |
Strobe No function 1-20Hz |
| 3 |
000-005 006-010 011-030 031-050 051-070 071-090 091-110 111-130 131-150 151-170 171-200 201-205 206-210 211-215 216-220 221-225 226-230 231-235 236-240 241-245 246-250 251-255 |
Color/White macro No function Full power Red 100% /Green up /Blue 0 Red down/Green 100% /Blue 0 Red 0 /Green 100% /Blue Up Red 0/Green down/Blue 100% Red up/Green 0 /Blue 100% Red 100%/Green 0/Blue down Red 100%/Green up/Blue Up Red down/Green down/Blue 100% Red 100% /Green 100%/Blue 100%/White 100% White1:3200K White2:3400K White3:4200K White4:4900K White5:5600K White6:5900K White7:6500K White8:7200K White9:8000K White10:8500K White11:10000K |
| 4 | 000-255 | Red |
| 5 | 000-255 | Green |
| 6 | 000-255 | Blue |
| 7 | 000-255 | Pan clockwise 0-540° |
| 8 | 000-255 |
Pan fine Fine control of pan movement 0-3° |
| 9 | 000-255 |
Tilt Anti-clockwise rotate 0-270° |
| 10 | 000-255 |
Tilt fine Fine control of tilt movement 0-3° |
| 11 | 000-255 |
Pan/Tilt speed From fast to slow |
| 12 |
000-019 020-039 040-059 060-079 080-099 100-119 120-139 140-149 150-159 160-169 170-179 180-199 200-219 220-255 |
No Function Pan/Tilt black activated Pan/Tilt black deactivated Fan Auto Fan slow Fan normal Fan fast Auto1(Activated after 3 secs) Auto2(Activated after 3 secs) Test(Activated after 3 secs) Custom(Activated after 3 secs) No function Reset(Activated after 3 secs) No function |
Feature:
Extremely Compact
Super brightest and high intensity beam
Fined edge
Moving head rapidly
Atomic strobe effect

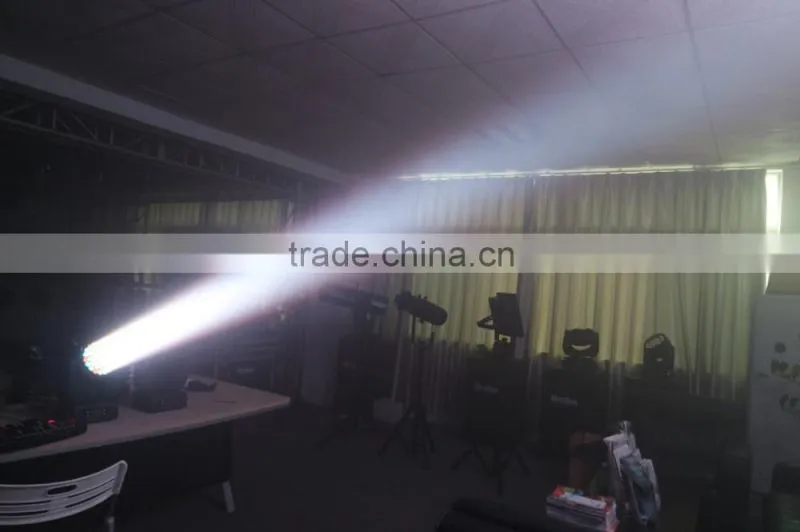

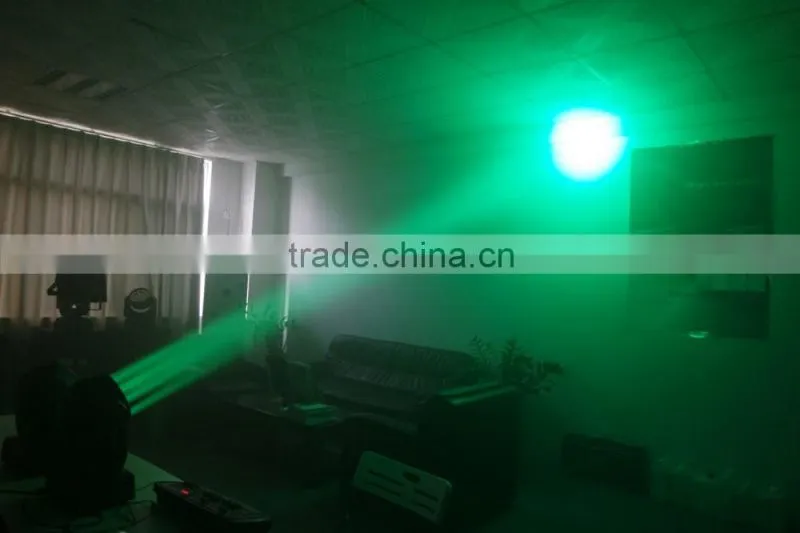

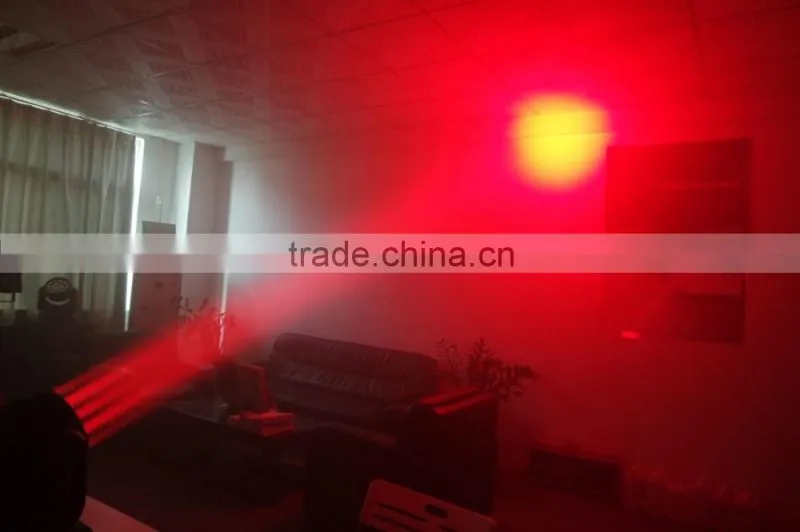

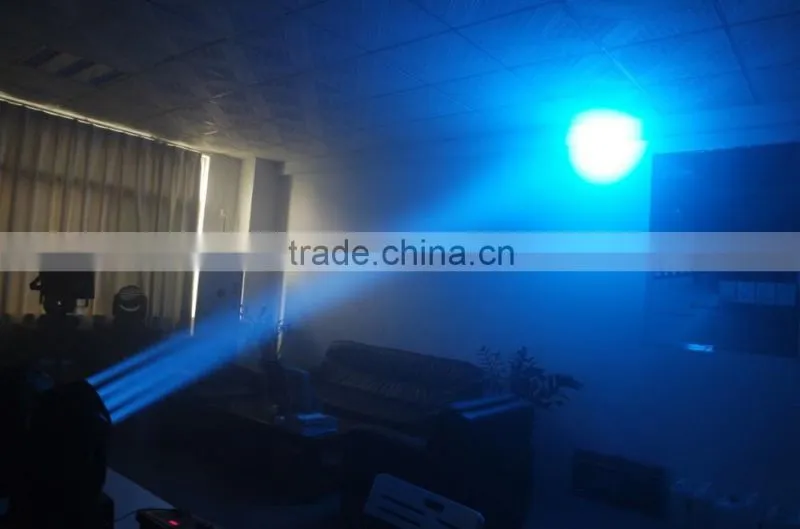

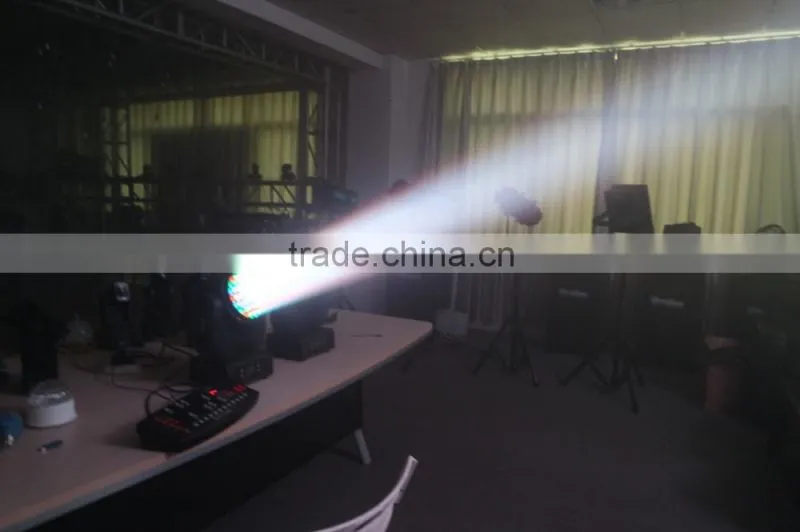

Narrow 8° beam angle produces a tight,intensity bright,pencil beam of light that can project over long distance.
Low energy consumption
Long lifespan
True high cost-effective
It is widely used in Stage performance,touring performance,huge concert,theatre,rental etc.
Ovation lighting at 2016 Guangzhou GET Show
Business conditions & Terms:
1.Payment:T/T 30% in advance & balance paid before shipment,West Union
2.Sample request:Within 3 to 5 working days to prepare the samples
3.Lead time:7 to 15 working days for a big order
4.Shipping method:TNT,DHL,Fedex,UPS airmail for small order,for a bulk production order we will ship the goods to you by LCL/FCL by sea.
Service:
1.One year warranty
2.Your specific enquiry will be prompt replied as soon as possible
3.OEM/ODM service could be offered according to your quantity
If you are interested in moving head beam wash spot light for your concert.
Please do not hesitate to keep in touch with us as the following
TradeManager:cn1501492591
Skype:ovationis05
WhatsApp:008618922428582
