Home > Lights & Lighting > Stage Lighting > Moving Head Light > Top Selling Products 2015 7*10W Original Osram Mini Moving Head LED Lighting Beam

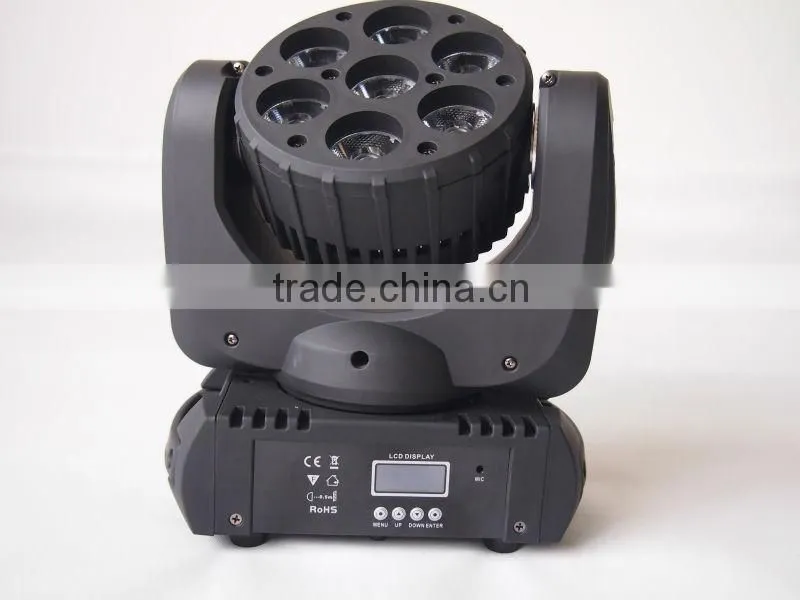

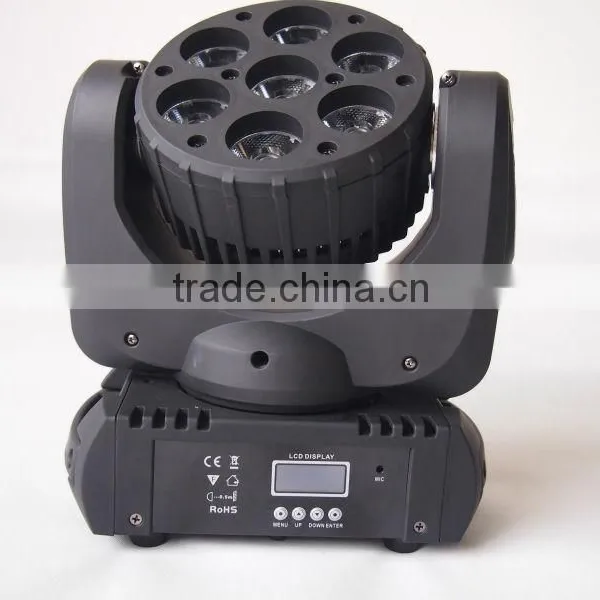

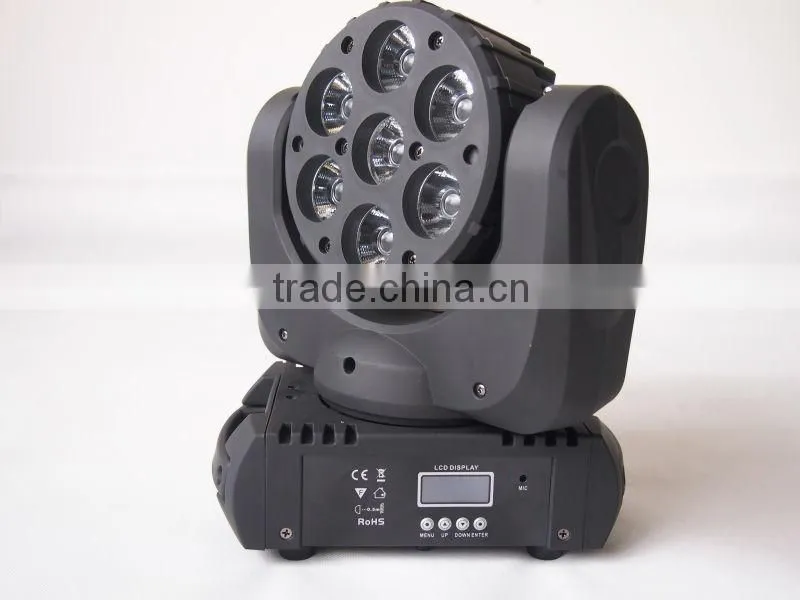

Top Selling Products 2015 7*10W Original Osram Mini Moving Head LED Lighting Beam
US$ 99 - 299
MOQ: 1 Piece
Key Specifications
Get Latest Price
Input Voltage(V):
AC90~260V/50-60Hz
Lamp Power(W):
120
Lamp Luminous Flux(lm):
860
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Promotion Hot Sell Light Indoor Use 36*3w Pixel Bar LightUS$ 1 - 300MOQ: 10 Cartons -
GuangZhou Stage Lighting Equipment-Robot 2R 360 Rotation 2016 New Products Moving Head BeamUS$ 320 - 499MOQ: 1 Piece
-
New Guangzhou Disco/circus/concert Full Of Haze Fog MachineUS$ 1 - 70MOQ: 1 Piece
-
200W Cool/warm White Zoom Gobo Studio Led Profile Spot Stage LightingUS$ 300 - 350MOQ: 1 Piece
-
Professional 1500w Low Fog Machine DMX/Remote Control Stage Lighting EffectUS$ 1 - 60MOQ: 1 Piece
Input Voltage(V)
AC90~260V/50-60Hz
Lamp Power(W)
120
Lamp Luminous Flux(lm)
860
Color Temperature(CCT)
Pure White
Working Temperature(℃)
-20, 45
Working Lifetime(Hour)
60000
IP Rating
Other, IP20
Certification
CE
Emitting Color
Changeable
Base Type
2G7
Place of Origin
Guangdong, China
Brand Name
Ovation
Model Number
Explorer -001
7X12W Osram LEDs 4-IN-1 RGBW Moving Head Beam
Key Features:

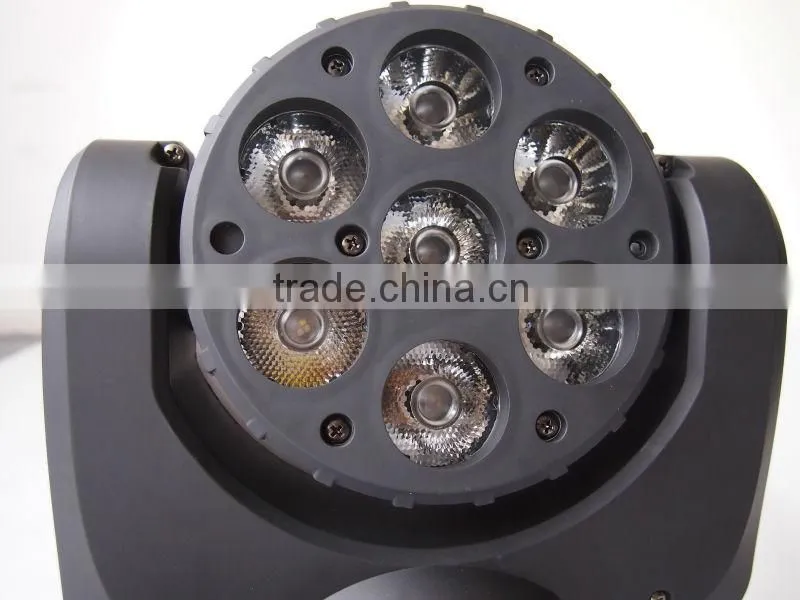

1.7PCS OSRAM 12W 4 in 1 LEDs(R,G,B,W)
2.High light output as 860LUX@ 7M at full
3. Intelligent temperature sensor for LEDs(over heat protection)
4.Scan position memory,auto reposition after unexpected movement
5.Compact size with only 5.5Kg body and 335mm in height
6.Pre-programmed random strobe and pulse effects
7.0-100% smooth linear dimmer with flicker free
8.Built-programs with macro effects
9. Low noise and efficient FAN cooling system
Specifications:
| Input Voltage | AC90~260V/50-60Hz |
| Power consumption | 120W |
| Light source | 7pcs*12W OSRAM 4-in-1RGBW LEDs |
| Light output | 860LUX@ 7M at full |
| Lamp life | 60,000hours |
| Color Range | 16.7millions additive RGBW Colors |
| DMX channels | 15CH |
| Operation Mode | DMX512,master-slave and sound activated controllable or auto operation |
| Movement | Pan/Tilt 540°/250°,speed fine adjustable |
| Dimmer | 0-100% smooth linear dimmer with flicker free |
| Strobe | 20t/s with variable speed, Pre-programmed random strobe and pulse effects |
| Beam Angles | 8degree |

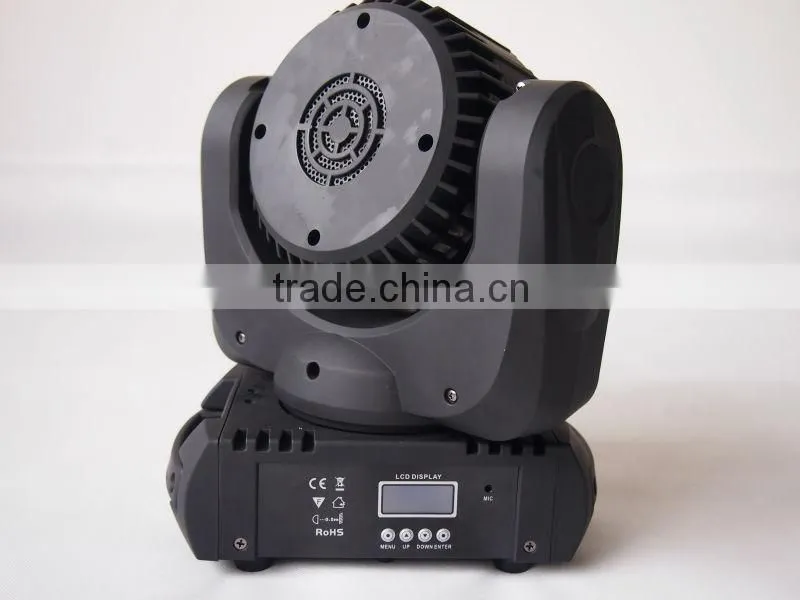

| Display | High definition blue TFT LCD display |
| Housing | Composite plastic(IP20) |
| Work environment | 45°C max ambient temperature |
| Fixture Color | black |

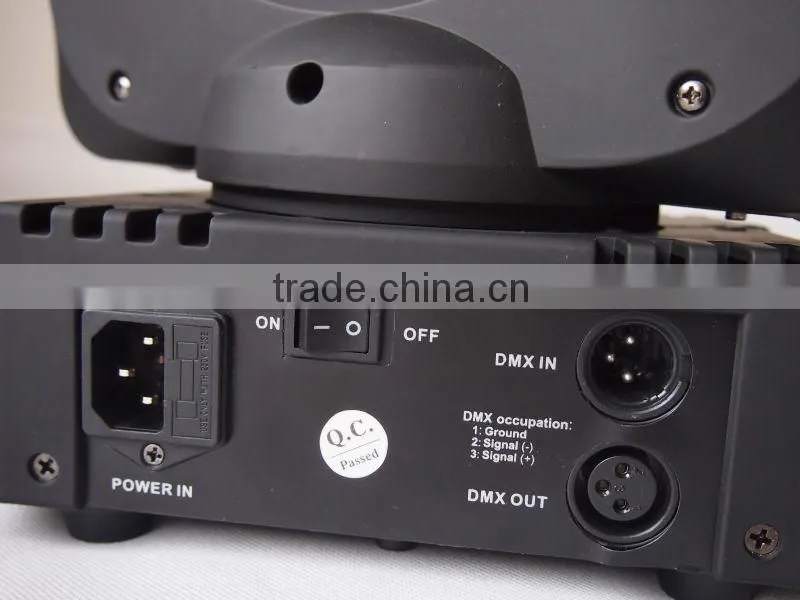

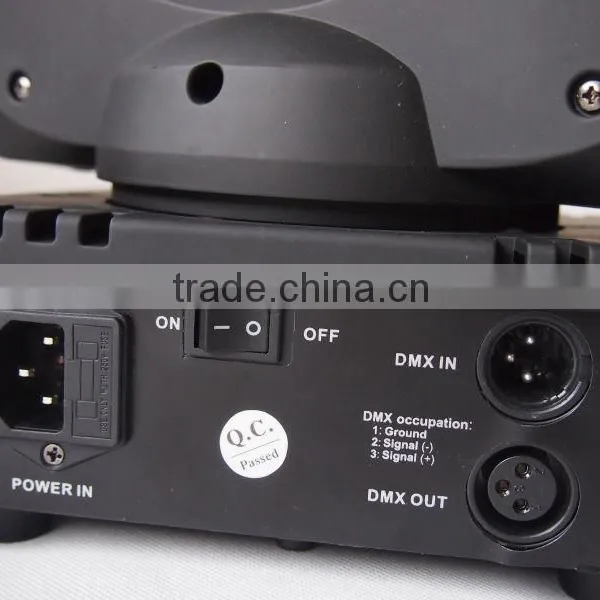

| Control connection | 3-pin DMX |
| Dimension | 152(L)*265(W)*335(H)mm |
| Packing size | 260(L)*320(W)*335(H)mm |
|
N.W |
5.5KG |
| G.W | 7.5KG |
| IP | 20 |
DMX Channel
| CH | Function | Values | Description |
| 1 | Pan | 0-255 | PAN Movement |
| 2 | Pan Fine | 0-255 | Fine control of Pan movement 16Bit |
| 3 | Tilt | 0-255 | Tilt Movement |
| 4 | Tilt Fine | 0-255 | Fine control of Tilt movement 16Bit |
| 5 | Dimmer | 0-255 | 0-100%Linear dimmer from dark to bright |
| 6 | Strobe Mode | 0-15 | Empty |
| 16-95 | Normal speed strobe | ||
| 96-175 | From fast to slowly | ||
| 176-255 | From slowly to fast | ||
| 7 | Red | 0-255 | 0-100% red dimmer from dark to bright |
| 8 | Green | 0-255 | 0-100% green dimmer from dark to bright |
| 9 | Blue | 0-255 | 0-100% blue dimmer from dark to bright |
| 10 | White | 0-255 | 0-100% white dimmer from dark to bright |
| 11 | Colors Choice | 0-255 | Colors changing effect |
| 12 | Macros and Sound Control | 0-010 | CH1-CH11 Activated |
| 011-120 | Colors jumping | ||
| 121-180 | Colors fading | ||
| 181-244 | Colors mixing and strobe | ||
| 245-255 | Sound control | ||
| 13 | Macros Speed | 0-255 | Speed of macros(slow to fast) |
| 14 | PAN/TILT Speed | 0-255 | Speed control of PAN/TILT(fast to slow) |
| 15 | Reset | 0-244 | CH1-CH14 Activated |
| 245-255 | Reset after 3 seconds |
Photometric Data
Photometric Beam Angle Data 8°Beam Angle LUX *0.0929=FC
Trade Terms
| MOQ | 1pcs |
| Price term | EXW Or FOB |
| Shipping method | By DHL,UPS,Fedax if small order; And ship by sea or air if bulk order |
| Payment terms | T/T for small order, L/Cfor big order 30% for deposit,the balance 70% before shipment. |
| Sample time | 3-5 workdays after received the payment |
| Lead time | Usually within 2 weeks depend on the quantity after we received the deposit |
| Packing | Carton or Flight case(Flight case need to buy) |
| After sells service | within one year,if there is damage, we free Provide all accessories and services,Except for glass parts; After one year, we provide all the accessories, the parts cost only charge |
| Accept | OEM &ODM |
