ISO Straight Fluted Machine Tap
1. ISO standard specification
| Coarse Thread:M | Fine Thread:MF | ||||||||||
| size | d | d1 | l | L | ◊ | size | d | d1 | l | L | ◊ |
| M1.4×0.30 | 1.4 | 2.50 | 7.0 | 40.0 | 2.00 | M1.4×0.20 | 1.4 | 2.50 | 7.0 | 40.0 | 2.00 |
| M1.6×0.35 | 1.6 | 2.50 | 8.0 | 41.0 | 2.00 | M1.6×0.20 | 1.6 | 2.50 | 8.0 | 41.0 | 2.00 |
| M1.8×0.35 | 1.8 | 2.50 | 8.0 | 41.0 | 2.00 | M1.8×0.20 | 1.8 | 2.50 | 8.0 | 41.0 | 2.00 |
| M2.0×0.40 | 2.0 | 2.50 | 8.0 | 41.0 | 2.00 | M2.0×0.25 | 2.0 | 2.50 | 8.0 | 41.0 | 2.00 |
| M2.2×0.45 | 2.2 | 2.80 | 9.5 | 44.5 | 2.24 | M2.2×0.25 | 2.2 | 2.80 | 9.5 | 44.5 | 2.24 |
| M2.5×0.45 | 2.5 | 2.80 | 9.5 | 44.5 | 2.24 | M2.5×0.35 | 2.5 | 2.80 | 9.5 | 44.5 | 2.24 |
| M3.0×0.50 | 3.0 | 3.15 | 11.0 | 48.0 | 2.50 | M3.0×0.35 | 3.0 | 3.15 | 11.0 | 48.0 | 2.50 |
| M3.5×0.60 | 3.5 | 3.55 | 13.0 | 50.0 | 2.80 | M3.5×0.35 | 3.5 | 3.55 | 13.0 | 50.0 | 2.80 |
| M4.0×0.70 | 4.0 | 4.00 | 13.0 | 53.0 | 3.15 | M4.0×0.50 | 4.0 | 4.00 | 13.0 | 53.0 | 3.15 |
| M4.5×0.75 | 4.5 | 4.50 | 13.0 | 53.0 | 3.55 | M4.5×0.50 | 4.5 | 4.50 | 13.0 | 53.0 | 3.55 |
| M5.0×0.80 | 5.0 | 5.00 | 16.0 | 58.0 | 4.00 | M5.0×0.50 | 5.0 | 5.00 | 16.0 | 58.0 | 4.00 |
| M6.0×1.00 | 6.0 | 6.30 | 19.0 | 66.0 | 5.00 | M5.5×0.50 | 5.5 | 5.60 | 17.0 | 62.0 | 4.50 |
| M7.0×1.00 | 7.0 | 7.10 | 19.0 | 66.0 | 5.60 | M6.0×0.50 | 6.0 | 6.30 | 19.0 | 66.0 | 5.00 |
| M6.0×0.75 | 6.0 | 6.30 | 19.0 | 66.0 | 5.00 | ||||||
| M7.0×0.75 | 7.0 | 7.10 | 19.0 | 66.0 | 5.60 | ||||||
| Coarse Thread:M | Fine Thread:MF | ||||||||||
| size | d | d1 | l | L | ◊ | size | d | d1 | l | L | ◊ |
| M6.0×1.00 | 6.0 | 4.50 | 19.0 | 66 | 3.55 | M6.0×0.75 | 6.0 | 4.50 | 19.0 | 66 | 3.55 |
| M7.0×1.00 | 7.0 | 5.60 | 19.0 | 66 | 4.50 | M7.0×0.75 | 7.0 | 5.60 | 19.0 | 66 | 4.50 |
| M8.0×1.25 | 8.0 | 6.30 | 22.0 | 72 | 5.00 | M8.0×0.75 | 8.0 | 6.30 | 19.0 | 66 | 5.00 |
| M9.0×1.25 | 9.0 | 7.10 | 22.0 | 72 | 5.60 | M8.0×1.00 | 8.0 | 6.30 | 22.0 | 72 | 5.00 |
| M10×1.50 | 10.0 | 8.00 | 24.0 | 80 | 6.30 | M9.0×0.75 | 9.0 | 7.10 | 19.0 | 66 | 5.60 |
| M11×1.50 | 11.0 | 8.00 | 25.0 | 85 | 6.30 | M9.0×1.00 | 9.0 | 7.10 | 22.0 | 72 | 5.60 |
| M12×1.75 | 12.0 | 9.00 | 29.0 | 89 | 7.10 | M10×0.75 | 10.0 | 8.00 | 20.0 | 73 | 6.30 |
| M14×2.00 | 14.0 | 11.20 | 30.0 | 95 | 9.00 | M10×1.00 | 10.0 | 8.00 | 24.0 | 80 | 6.30 |
| M16×2.00 | 16.0 | 12.50 | 32.0 | 102 | 10.00 | M10×1.25 | 10.0 | 8.00 | 24.0 | 80 | 6.30 |
| M18×2.50 | 18.0 | 14.00 | 37.0 | 112 | 11.20 | M11×0.75 | 11.0 | 8.00 | 22.0 | 80 | 6.30 |
| M20×2.50 | 20.0 | 14.00 | 37.0 | 112 | 11.20 | M11×1.00 | 11.0 | 8.00 | 22.0 | 80 | 6.30 |
| M22×2.50 | 22.0 | 16.00 | 38.0 | 118 | 12.50 | M12×1.00 | 12.0 | 9.00 | 22.0 | 80 | 7.10 |
| M24×3.00 | 24.0 | 18.00 | 45.0 | 130 | 14.00 | M12×1.25 | 12.0 | 9.00 | 29.0 | 89 | 7.10 |
| M27×3.00 | 27.0 | 20.00 | 45.0 | 135 | 16.00 | M12×1.50 | 12.0 | 9.00 | 29.0 | 89 | 7.10 |
| M14×1.00 | 14.0 | 11.20 | 22.0 | 87 | 9.00 | ||||||
| M14×1.25 | 14.0 | 11.20 | 30.0 | 95 | 9.00 | ||||||
| M14×1.50 | 14.0 | 11.20 | 30.0 | 95 | 9.00 | ||||||
| M16×1.00 | 16.0 | 12.50 | 22.0 | 92 | 10.00 | ||||||
| M16×1.50 | 16.0 | 12.50 | 32.0 | 102 | 10.00 | ||||||
| M18×1.00 | 18.0 | 14.00 | 22.0 | 97 | 11.20 | ||||||
| M18×1.50 | 18.0 | 14.00 | 37.0 | 112 | 11.20 | ||||||
| M18×2.00 | 18.0 | 14.00 | 37.0 | 112 | 11.20 | ||||||
| M20×1.00 | 20.0 | 14.00 | 22.0 | 102 | 11.20 | ||||||
| M20×1.50 | 20.0 | 14.00 | 37.0 | 112 | 11.20 | ||||||
| M20×2.00 | 20.0 | 14.00 | 37.0 | 112 | 11.20 | ||||||
| M22×1.00 | 22.0 | 16.00 | 24.0 | 109 | 12.50 | ||||||
| M22×1.50 | 22.0 | 16.00 | 38.0 | 118 | 12.50 | ||||||
| M22×2.00 | 22.0 | 16.00 | 38.0 | 118 | 12.50 | ||||||
| M24×1.00 | 24.0 | 18.00 | 24.0 | 114 | 14.00 | ||||||
| M24×1.50 | 24.0 | 18.00 | 45.0 | 130 | 14.00 | ||||||
| M24×2.00 | 24.0 | 18.00 | 45.0 | 130 | 14.00 | ||||||
| M27×1.00 | 27.0 | 20.00 | 25.0 | 120 | 16.00 | ||||||
| M27×1.50 | 27.0 | 20.00 | 37.0 | 127 | 16.00 | ||||||
| M27×2.00 | 27.0 | 20.00 | 37.0 | 127 | 16.00 | ||||||

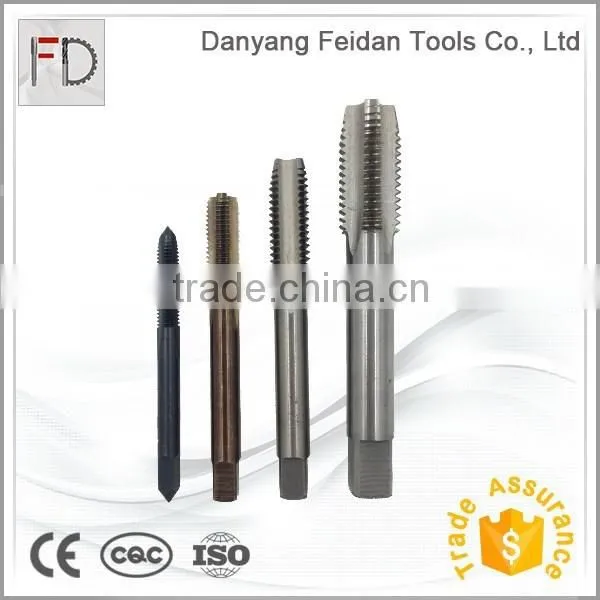

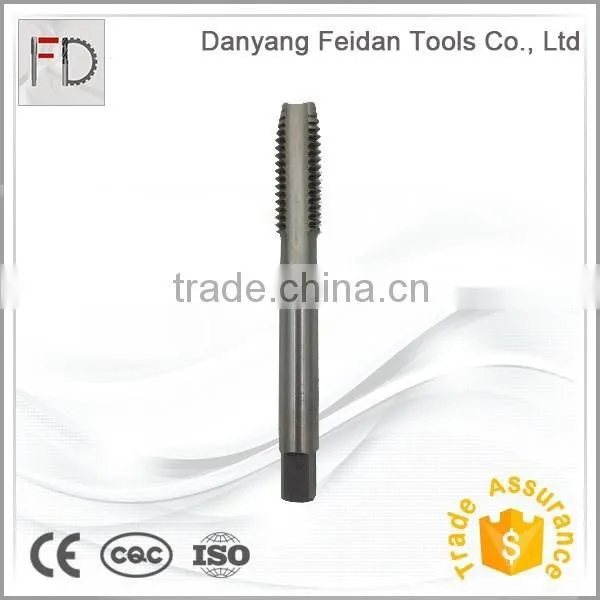

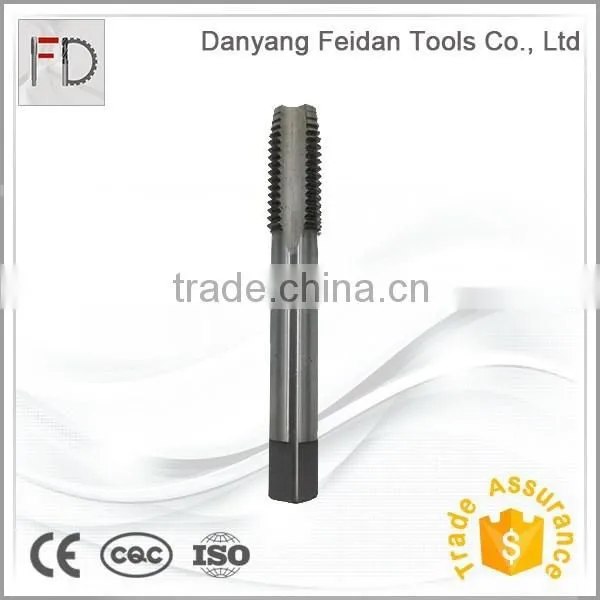

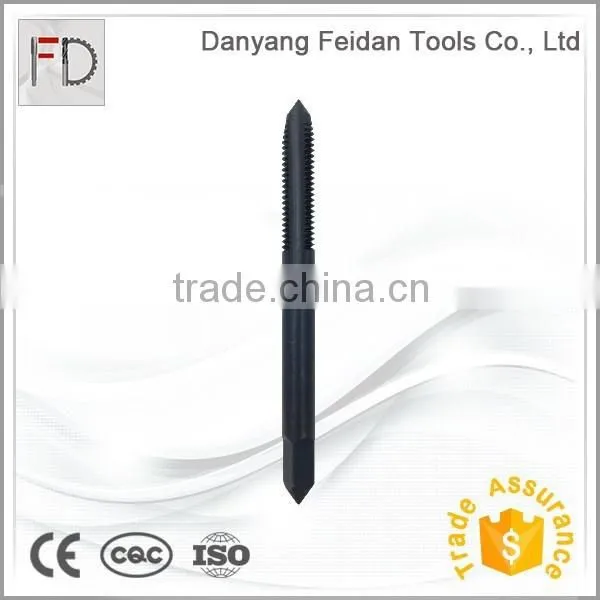

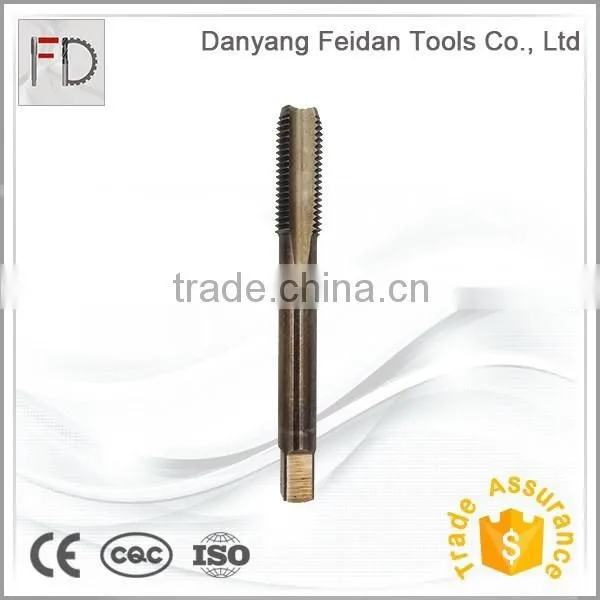

2. Details show
3. Applications
| Applications | For tapping in order to process internal threads. |
| HSS material hardness | HSS-6542(W6Mo5Cr4V2): HRC63-65 |
| HSSE(W6Mo5Cr4V2Co5): HRC65-67 | |
| Workpiece | Our taps can be used on all kinds of materials, such as Stainless Steel, Iron, Aluminium, Titanium,Brass, Alloy Steels and so on. |
4. Delivery and shipping
1. If in stock: within 3 days.
If not in stock: Less than 5,000 pcs, 10 days.
5,000 to 10,000 pcs, 15 days.
10,000 to 100,000 pcs, 25 days.
100,000 to 300,000 pcs, 30 days.
300,000 to 500,000 pcs, 40 days.
2. Port: Shanghai, Ningbo, Shenzhen, Hongkong.
3. Shipping time: By express: 3 to 10 days.
By air: 6 to 15 days.
By ship: 20 to 60 days.
5. Payment
1.Terms of payment: 30% of the goods payment should be paid in advance as deposit. The balance need to be paid before delivery.
2.Terms of trading: FOB, CFR, CIF.
6. Our services
1.Solution provider: Our strong R&D capability helps us provide professional solution to clients.
2.Perfect before & after-sale service: Our group are ready to serve our clients any time and anywhere.
3.LOGO Printing: We can print your LOGO on the handle and package.
4.Samples: We are willing to provde free samples.
7. Package
8. Our advantages
1.Manufacturer:Our company was established in 2006. We have been working on the research and development, manufacturing and trade business of all kinds of hardware tools especially the machine taps. Our company address:Gaoshiqiao Industry Park, Feida Village, Houxiang, Danbei Town, Danyang City, Jiangsu Province, China.
2.High quality: We are located in the tools township of China, have abundant and reliable raw materials. We also master mature manufacturing technologies and strict quality control system. So we can maintain stable and reliable product quality.
3.Quick delivery: Within 40 days after we receive your advance payment.
4.Personalized services: We are always ready to hear from you and will respond to your enquiry immediately.
5.Cometitive price: We provide the straight factory price to you.
6.OEM accepted: We are willing to make the products according to your requirement.
7.Other standards: We can also make the products according to all standards, such as DIN, JIS, ISO, ANSI, BS, and so on. Besides, non-standard products can also manufacture.

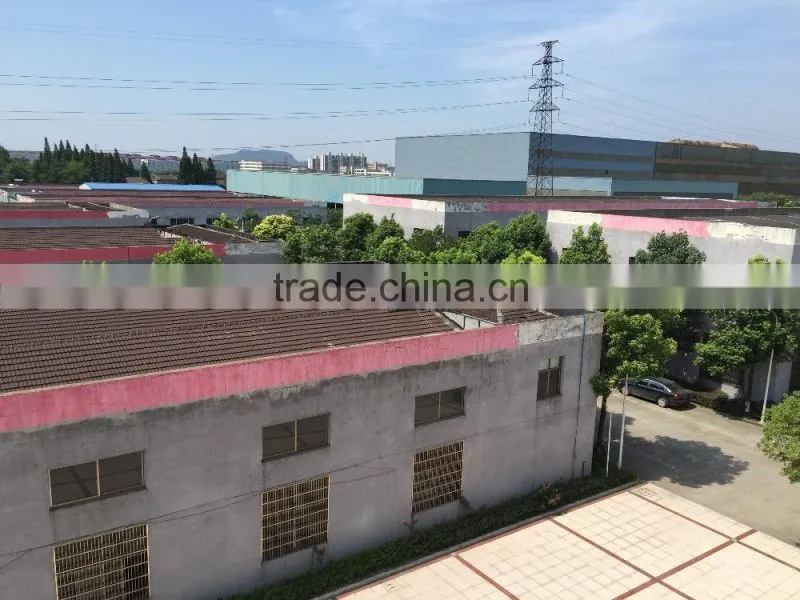

9. Company appearance
