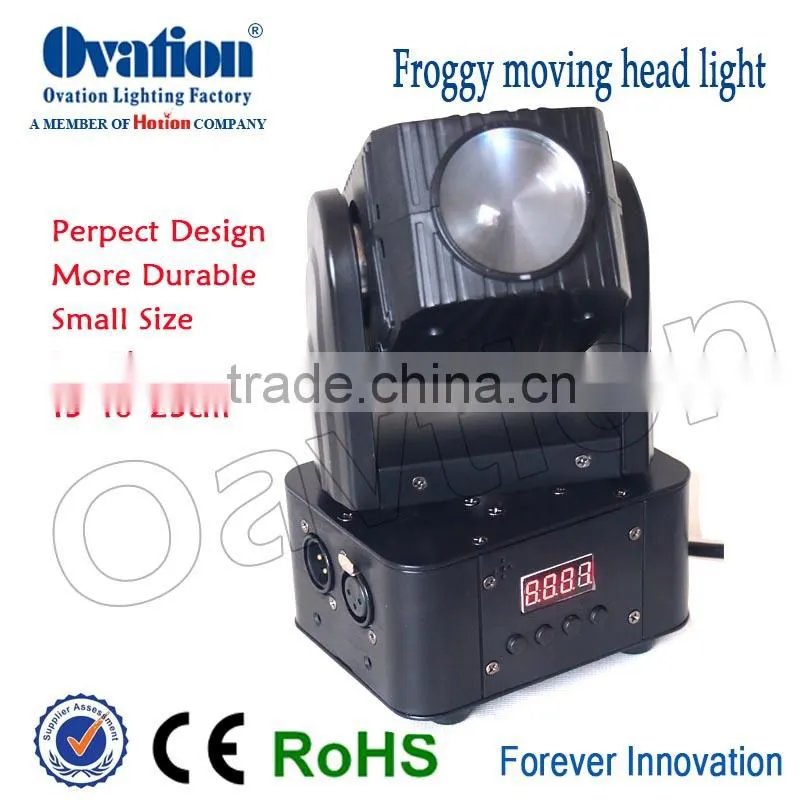

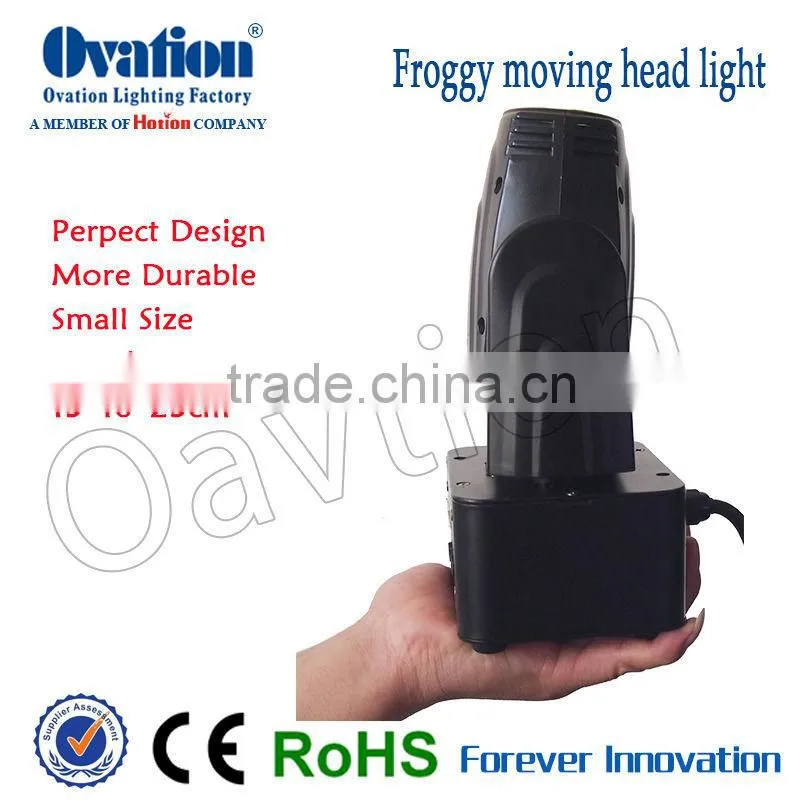

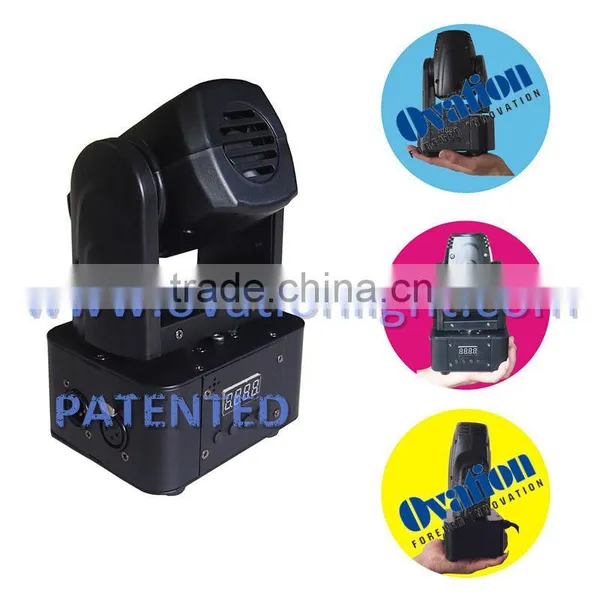

strong mini moving head beam light smallest and lightest for night club

Name: strong mini moving head beam light smallest and lightest for night club
Brand: Ovation
Availability: InStock

FOB Price

USD $19 - $99 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Guangzhou Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Input Voltage(V)	Light Source:1*10W COB	Lamp Power(W)	40
Lamp Luminous Flux(lm)	860	Color Temperature(CCT)	Pure White
Working Temperature(℃)	-20, 45	Working Lifetime(Hour)	50000
IP Rating	Other, IP20	Certification	CE, REACH
Emitting Color	White	Place of Origin	Guangdong, China
Brand Name	Ovation	Model Number	Froogy

Product Description

1X10W LEDs MINI Moving Head Beam

Specifications:

Input Voltage	100-240v nominal, 50/60 Hz
Power consumption	40W
Light source	white LEDs lamp
Rated power	40W
Lamp life	50,000hours
Color Range	16.7millions additive RGBW Colors
DMX channels	6/10CH
Operation Mode	DMX512,master-slave and sound activated controllable or auto operation
Movement	Pan/Tilt 540°/270°,speed fine adjustable
Dimmer	0-100% smooth linear dimmer with flicker free
Strobe	20t/s with variable speed, Pre-programmed random strobe and pulse effects
Beam Angles	8degree
Display	High definition blue LCD display
Housing	Composite plastic(IP20)
Work environment	45°C max ambient temperature
Fixture Color	black
Control connection	3-pin DMX
Dimension	152(L)265(W)335(H)mm
Packing size	260(L)320(W)335(H)mm
N.W	1.8KG
G.W	2.5KG
IP	20

DMX Channel

CH	Function	Values	Description
1	Pan	0-255	PAN Movement
2	Pan Fine	0-255	Fine control of Pan movement 16Bit
3	Tilt	0-255	Tilt Movement
4	Tilt Fine	0-255	Fine control of Tilt movement 16Bit
5	Dimmer	0-255	0-100%Linear dimmer from dark to bright
6	Strobe Mode	0-15	Empty
		16-95	Normal speed strobe
		96-175	From fast to slowly
		176-255	From slowly to fast
7	Red	0-255	0-100% red dimmer from dark to bright
8	Green	0-255	0-100% green dimmer from dark to bright
9	Blue	0-255	0-100% blue dimmer from dark to bright
10	White	0-255	0-100% white dimmer from dark to bright
11	Colors Choice	0-255	Colors changing effect
12	Macros and Sound Control	0-010	CH1-CH11 Activated
		011-120	Colors jumping
		121-180	Colors fading
		181-244	Colors mixing and strobe
		245-255	Sound control
13	Macros Speed	0-255	Speed of macros(slow to fast)
14	PAN/TILT Speed	0-255	Speed control of PAN/TILT(fast to slow)
15	Reset	0-244	CH1-CH14 Activated
15	Reset	245-255	Reset after 3 seconds

Photometric Data

Photometric Beam Angle Data 8°Beam Angle LUX *0.0929=FC

Certifications

Hot sale

Our Services

1. Reply your inquiry within 24 working hours.

2. Orders processed within 24 hours of payment verification.

3. Well-trained, experienced staffs answer all your questions.

4. OEM&ODM service.

5. Special discount are offered based on order quantity.

6. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.

7. Your sales area, design and all your private information will be protected.

Trade term

Trade term	FOB
Payment	T/T, Western Union
MOQ	1 pcs
Package	Exporting carton, flycase, wooden case
Leading time	Sample order: 1-3 days Big order: 4-15 days
OEM	OEM is acceptable
Warranty	1 year
After service	If there is any problem with this product, firstly you need to send the picture or the related video show to us, then let us know exactly the problem of the product, we will try our best to help you .If we can use the part and different parts to solve the problem ,we will offer you the replacement for free Within 1 year.
