digital mug printing machine heat transfer label printing machine mug heat printing machine transfer machine black new stly

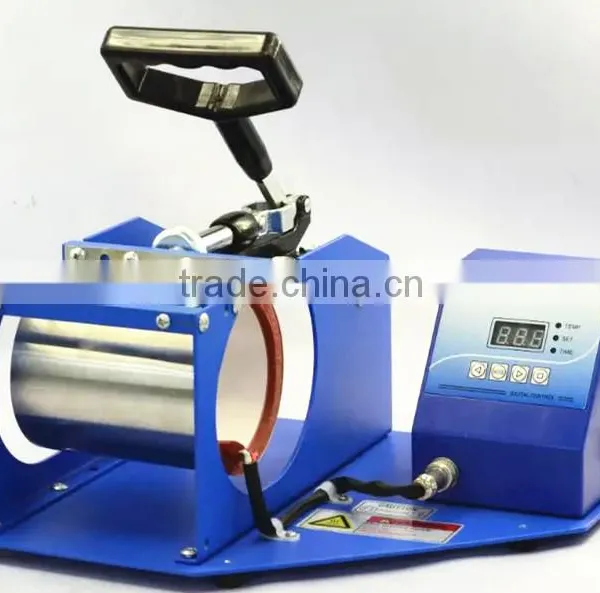

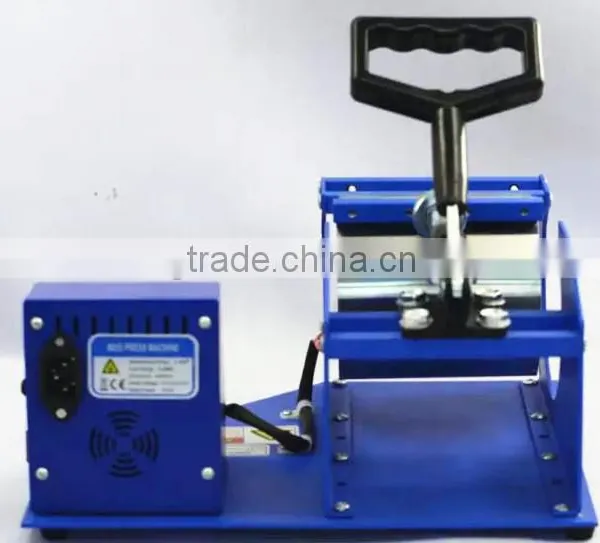

THE MUG PRESS MACHINE INTRODUCTION

1. Plug into the power, open the power. (The machine rated voltage is 220V, the rated input power is 350W)

2. Set the operation procedure :( the temperature shows F degree)

1).The original temperature: Press the MODE SET KEY once, the set indication light will be on, Press the key+ or key - to set original temperature.

2).The Max temperature: Press the MODE SET KEY the second time, the temperature indication light will be on,press the key + or key -to set the max temperature .

3).The max bake temperature: Press the MODE SET KEY the third time, the time indication light will be on,press the key + or key -to set the max bake time .

4).Execution mode: Press MODE set key the fourth time, the machine will go into waiting execution state..

Att: the original time setting range 200~380 degree, the Max temperature setting range 200~430 degree.

The max baking temperature time setting range: 0~999 seconds.

The machine has the function of temperature setting self-locking, so if the original temperature is 340 degree, the machine will control the max temperature range 340~430 degree . Conversely, if the max temperature set 250 degree, then the machine will control the original temperature 200~250 degree.

3. Heat transfer printing

   Baking slowly: put the products into the mug press, press down the pressure handle, open the

power, so the temperature will go up .When the temperature raise to the original setting temperature,

the machine will send out short stridulation, press the execution key once ,till the machine send out

dah (long voice). Press the execution key again to finish the heat printing. Take out the product,

the temperature will come back the original temperature gradually.

   Baking fastly: under the original temperature state, fix the object, press down the pressure handle,

press the execution key once, until the machine send out dah, press the execution key again , finish the

heat transfer printing . Take out the object, the temperature will come back to original

temperature.

4. The question prompt for the failure printing.

A. the color is lighter: The temperature is too slow, or the pressure is not even, or the time is too

short .

B. the design is indistinct:       the time is too long and lead to ink diffusing

C. the design has no luster: the pressure is too high or temperature too high.

D. part of design is indistinct: heat printing zone or the heating is not even.

E. Scar on the design: Heat printing time is too long.

F. dept of color is not the same: pressure not even or the coating is not even.

G. paper stick to the object: The temperature is too high, or the coating of the object is not good.

1,What is your time of making samples?
Usually we will take around 3-5 days to make the samples.

2,What is your MOQ?
Our MOQ is usually 1 pc.

3,What is your delievery time?
The time of delievery is about 7-15 days.

4,What is the loading port?
Ningbo port

5,What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment.

6,What is the location of your company?
Our company is located in Yiwu, One of the most flurishing cities of international trade.

7,What is your main products?
Our main products are Sublimation Mugs, Sublimation Phone cases ,other sublimation Blanks and Equipments

8,How about the samples?

We could send you the samples but the samples are charged.After the order is

confirmed, we would pay back the sample fee.Please be rest assured of that.

Essentially we sometimes send the samples for free

More Information,Pls Contact:

Skype:lily.lu71

WeChat:15679699399

Whatsapp/Viber:+8615157950682
