Specifications
Food container disposable machinery1.PS sheet can be recycled
2.Simplicity of operation
Food container disposable machinery
The PS food container machine mainly including three main parts:
1. PS foam sheet extruder: make PS foam sheet from raw material
2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)
3. Plastic recycle machine: recycle waste products to granules, the ca ps foam food container making machinery n mix with new material and put into PS foam sheet extruder again

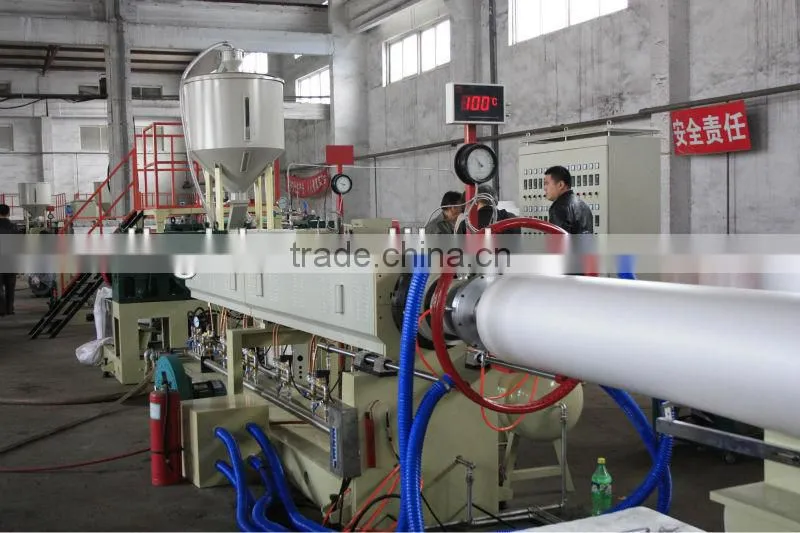

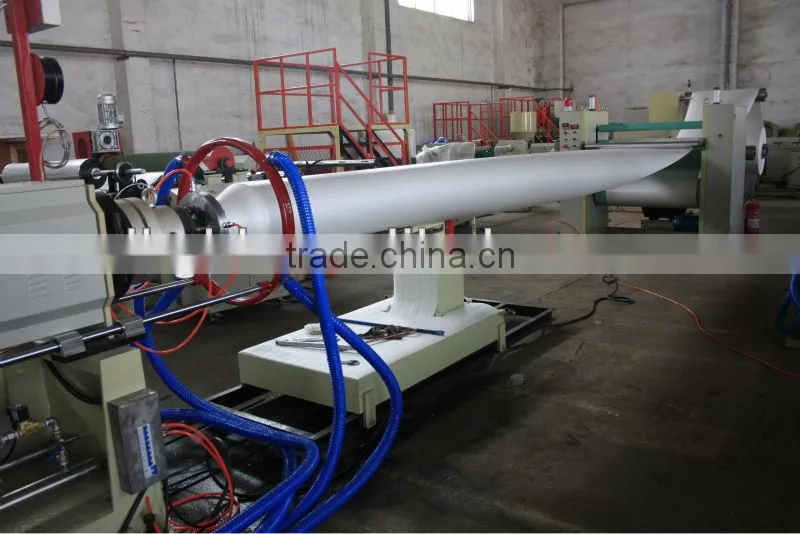

A. PS Foam Sheet Extruder
Food container disposable machinery
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.
Main technical parameters
Model |
Unit |
PSP70/90 |
PSP90/120 |
PSP100/130 |
PSP120/150 |
Extruder |
|
70/90 |
90/120 |
100/130 |
120/150 |
Foam rate |
|
10-20 |
10-20 |
10-20 |
10-20 |
Width of product |
mm |
640-1040 |
640-1040 |
640-1040 |
640-1200 |
Cutting method |
|
Single cutter |
Double cutter |
||
Thickness of product |
mm |
1.0-3.0 |
1.0-3.5 |
1.0-3.5 |
2.0-5.0 |
Cooling method |
|
Cooled by wind and water |
|||
Output |
kg/h |
50-90 |
100-180 |
180-230 |
230-320 |
Installed power |
kw |
120 |
150 |
180 |
260 |
Dimensions(L×W×H) |
m |
26×4.0×2.8 |
30×4.1×2.8 |
36×4.2×3 |
38×4.2×3.2 |
Total weight |
T |
10 |
12 |
15 |
18 |

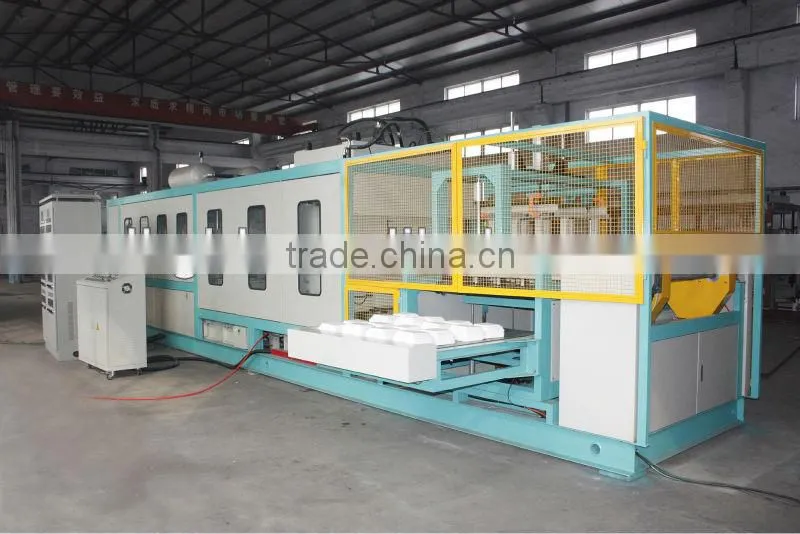

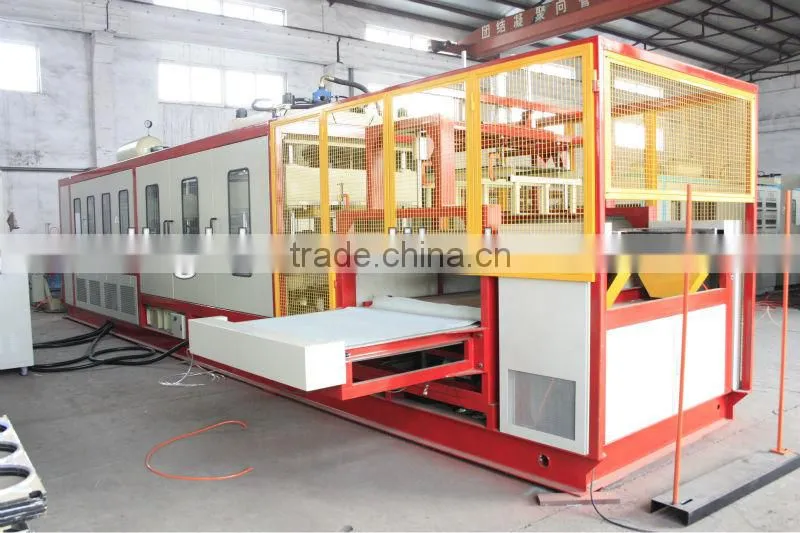

B. Fully auto forming and cutting machine
Food container disposable machinery
Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.
The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.
Applications
-- Disposable material for lunch box, bowl, tray, plate etc…
-- Internal cushioning material for food, fruits and cosmetics
Main technical parameters
Model |
Unit |
DY-1040 |
Max. forming area |
mm2 |
1000×1100 |
Max. forming depth |
mm |
80 |
Production efficiency |
s/die |
3 - 8 |
Forming pressure |
T |
15 |
Mounted power |
kw |
168 |
Total weight |
T |
16 |
Installation size |
m |
13×2×3.2 |

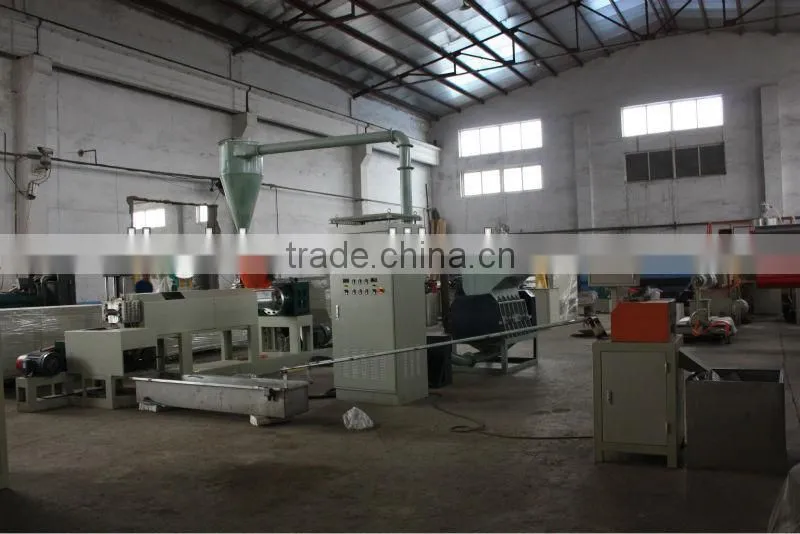

C.Plastic recycle machine
Food container disposable machinery
Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance.
Structure
-- Extrusion unit
-- T-die with screen changer
-- Cooling water bath unit
-- Pelletizing unit
-- Control panel unit
Main technical parameters
Model |
Unit |
DY-180+120/100 |
Screw diameter |
mm |
180+120/100 |
Motor |
kw |
30 |
Heater |
kw |
25 |
Extruder capacity |
kg/h |
80-130 |
Cooling water tank |
mm |
1810×410×225 |
Granule cutting motor |
kw |
2.2 |
