TAICHI 4
24*12W RGBW 4 in 1 Leds flat par light
Linkable
Model No:OV052D
Input voltage:AC 100-240 50/60Hz
Power:300W
Light source:24*12W RGBW 4in1 Leds
Lifespan:50000 hours
Beam angle:25 degree(15/40 degree optional)
Color temperature:3200K to 6500K
DMX channel:4/9 CHS
Control mode:DMX 512/stand alone/Master-Slave/Sound
IP rate:IP20
Size: L250*W220*H350 MM
N.W.:4.5KGS
Channel Instruction as the below:
|
Model/Channel |
Function | Value | Type of control | |
| 1/4 | 2/9 | |||
| CH1 | General dimming | 0-255 | proportional | |
| CH2 | Strobe |
0 10-79 80-159 160-239 240-255 |
off Brighten fast,black fast Brighten slow,black fast Brighten fast,back slow Strobe fast |
|
| CH1 | CH3 | Red | 0-255 | Proportional |
| CH2 | CH4 | Green | 0-255 | Proportional |
| CH3 | CH5 | Blue | 0-255 | Proportional |
| CH4 | CH6 | White | 0-255 | Proportional |
| CH7 | CT |
0-9 10-255 |
OFF 3200K-6700K |
|
| CH8 | Color mixing |
0
10-32
33-65
66-96
97-127
128-160
161-192
193-224
225-255 |
off
Red from small to big brightness Red from small to big brightness
Red stay the same Green from small to big brightness
Green stay the same,Red from the brightness to black
Green stay the same blue from small to big brightness
Blue stay the same green from brightness to black
Blue stay the same red from small to big brightness
Red & blue light stay the same,Green from small to big brightness
Red Green blue stay the same white from small to big brightness |
|
| CH9 | Color macro |
0-9
10-63
64-127
128-191
192-255
|
OFF
Red & Blue Color macro
Red & Blue Color macro
Red & Green color macro
Blue & Green color macro R,G,B & W Macro |
|

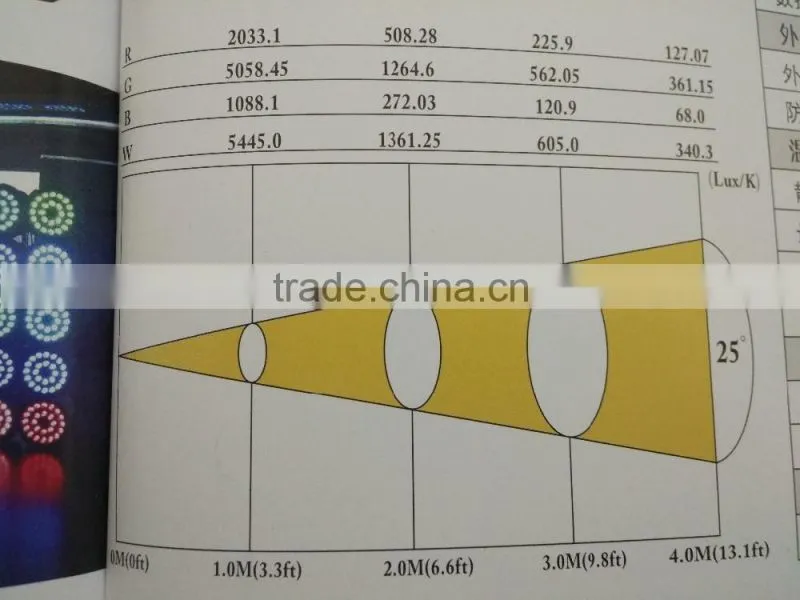

For the photometric chart of this Led flat par light you can see from the following.
For more info about this Led flat par light TAICHI 4 you can see from the following.
Business conditions & Terms:
1.Payment:T/T 30% in advance & balance paid before shipment,West Union
2.Sample request:Within 3 to 5 working days to prepare the samples
3.Lead time:7 to 15 working days for a big order
4.Shipping method:TNT,Fedex,DHL,UPS for small order,for a bulk production order we will ship the goods to you through LCL or FCL by sea.
Service:
1.One year warranty
2.Your specific enquiry will be prompt replied as soon as possible
3.OEM/ODM service could be offered according to your quantity
If you are interested in our TAICHI 4 24*12W RGBW 4 in 1 Led flat par light for your stage lighting space.
Please do not hesitate to keep in touch with us as the following
TradeManager:cn1501492591
Skype:ovationis05
WhatsApp:008618922428582
