Plastic foam tableware machine

export packing

Specifications

Plastic foam tableware machine
1.environmental friendly food packing line
2.box design and size is various

Plastic foam tableware machine







Plastic foam tableware machine mainly including three main parts:

1. PS foam sheet extruder: make PS foam sheet from raw material

2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)

3. Plastic recycle machine: recycle waste products to granules, the ca ps foam food container making machinery n mix with new material and put into PS foam sheet extruder again



A. PS Foam Sheet Extruder









PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.

 Main technical parameters

Model	Unit	PSP70/90	PSP90/120	PSP100/130	PSP120/150
Extruder		70/90	90/120	100/130	120/150
Foam rate		10-20	10-20	10-20	10-20
Width of product	mm	640-1040	640-1040	640-1040	640-1200
Cutting method		Single cutter		Double cutter
Thickness of product	mm	1.0-3.0	1.0-3.5	1.0-3.5	2.0-5.0
Cooling method		Cooled by wind and water
Output	kg/h	50-90	100-180	180-230	230-320
Installed power	kw	120	150	180	260
Dimensions(L×W×H)	m	26×4.0×2.8	30×4.1×2.8	36×4.2×3	38×4.2×3.2
Total weight	T	10	12	15	18





B. Fully auto forming and cutting machine









Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.



The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.



 Applications



-- Disposable material for lunch box, bowl, tray, plate etc.



-- Internal cushioning material for food, fruits and cosmetics



Main technical parameters







Model	Unit	DY-1040
Max. forming area	mm2	1000×1100
Max. forming depth	mm	80
Production efficiency	s/die	3 - 8
Forming pressure	T	15
Mounted power	kw	168
Total weight	T	16
Installation size	m	13×2×3.2

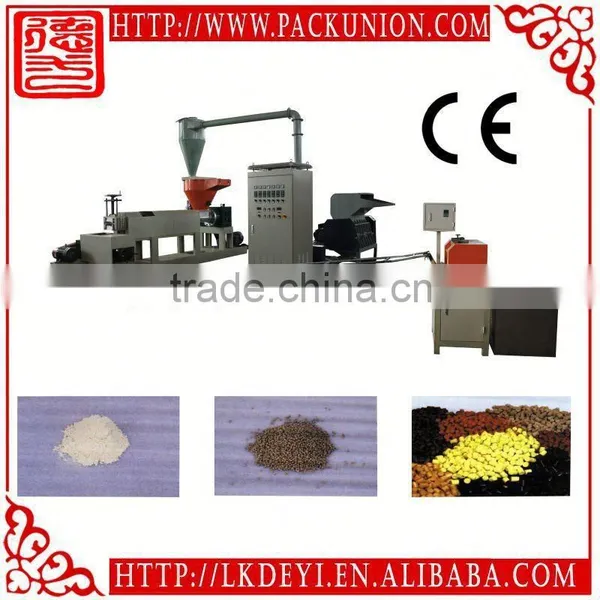

C.Plastic recycle machine





Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance.



Structure



-- Extrusion unit



-- T-die with screen changer



-- Cooling water bath unit



-- Pelletizing unit



-- Control panel unit



 Main technical parameters



Model	Unit	DY-180+120/100
Screw diameter	mm	180+120/100
Motor	kw	30
Heater	kw	25
Extruder capacity	kg/h	80-130
Cooling water tank	mm	1810×410×225
Granule cutting motor	kw	2.2
