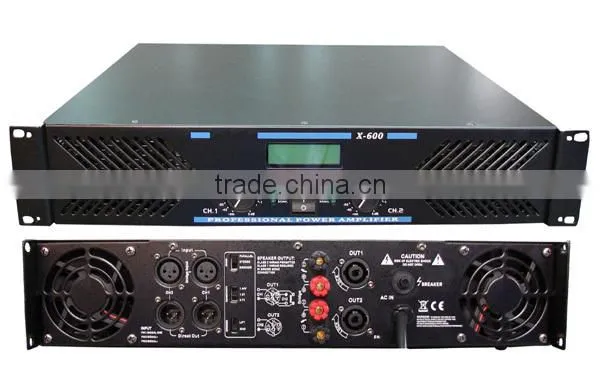

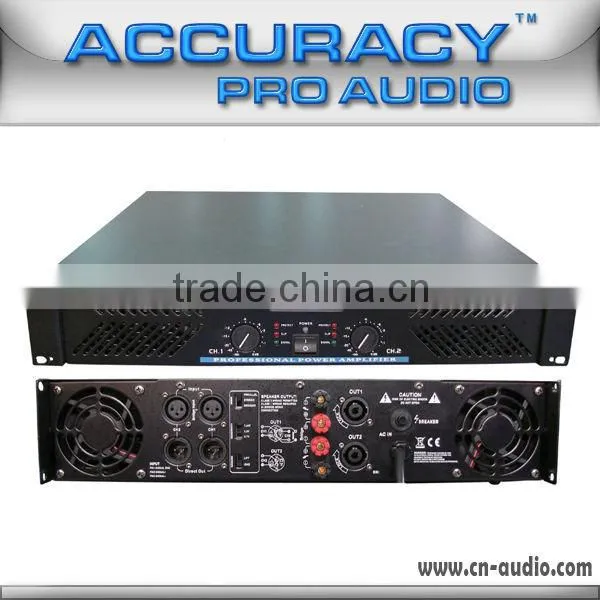

Professional LCD Power Amplifier X-600
Features:
|
1)Use particular THE MIRRORED FRONTED POWER SUPPLY BRIDGE to make the symmetrical circuit design.It can make more less distortion and better sound, but cost more higher. |
|
2)With power auto switch system, power parallel connection in low power, increase the output current. And the voltage will auto increase in big power to increase the output power. |
3)It have input power supply filter, make the capability of anti-jamming more strong. |
4)Amplifier circuit with shield cover, add shield ring in transformer to make less noise, let the product have more clear sound. |
5)Independence close cooling wind path to make the cooling more fast, even use for long time will be very clear. |
6)Have perfect protect function, power on amortize, delay connect speaker, limited function, over-current protect, over-heat protect, short-cut protect and output DC protect etc. |
Specifications:
| Characteristic | X-400 | X-600 | X-800 | X-1000 | X-1200 | X-1400 | |
| Out Power(8Ω) | 2×400W | 2×600W | 2×800W | 2×1000W | 2×1200W | 2×1400W | |
| Out Power(4Ω) | 2×650W | 2×950W | 2×1300W | 2×1600W | 2×1800W | 2×2100W | |
| Out Power(2Ω) | 2×950W | 2×1400W | 2×1900W | 2×2400W | 2×2700W | 2×3000W | |
| Out Power (BRIDGE) (8Ω) | 1300W | 1900W | 2600W | 3200W | 3600W | 4200W | |
| Out Power (BRIDGE) (4Ω) | 1900W | 2800W | 3800W | 4800W | 5400W | 6000W | |
| OutPut Circuit Type | Class H | Class H | Class H | Class H | Class H | Class H | |
| Input Impedance | 20KΩ | ||||||
| Frequency Response | 20Hz~20KHz | ||||||
| THD | 0.05% | ||||||
| Slew Rate | 80V/usec | ||||||
| Hum and Noise | 103dB | ||||||
| Damp Modulus | >500 | ||||||
| Radiator | High/Low Automatism Control | ||||||
| Suteguard | DC Safeguard/out Overloading/Chancroid Sgartup/Boot-Strap Short Test | ||||||
| N Weight/G Weight(Kg) | 23.5/26 | 26/28.5 | 27/29.5 | 33/36 | 34/37 | 35.5/38.5 | |
| Dimension | 482×453×88.8 | 482×468×132 | |||||
| Power Range | (115V/230V)Can offer different voltage according client's requirement | ||||||
Picture:
Port : Ningbo
Package : Standard Carton ( 1pc/ poly bag, 1 poly bag / master carton, with foam padding inside for protection ), White box packing or color box packing,according to customer's requirements
Pre-sale Service
- Ø Good Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
- Ø Professional salesman and High-work-effect foreign trade team, Reply your Alibaba inquiry and trade manager in 24 hours.
- Ø Rich experience of design, manufacture and sell Pro-audio, Speaker stands, cable and etc, we cherish every order from our honor.
After you choose
- Ø We will count cheapest shipping cost and make proforma invoice for you at once.
- Ø Check quality again, then send out to you at 1-2 working day after you pay.
- Ø Email you the tracking No., and help to chase the parcels until it arrive you.
After-sale service
- Ø We are very glad that customer give us some suggestion for price and products.
- Ø Any questions, please contact with us freely by E-mail or Telephone
- Ø One year’s warranty and free spear parts for speakers.
Q1: Can you do OEM / ODM for customers?
A1: Of course, for the product design and package, our engineer can be design as your request, Any kind of logo printing or design are available.
Q2: Why your delivery time is longer than others?
A2: To ensure the quality,all products and every step we have to take seriously. So it will cost much
time.
Q3: Which exhibition do you attend?
A3: NAMM IN JANUARY
GET SHOW GUANGZHOU IN MARCH
PROLIGHT + SOUND SHOW SHANGHAI IN OCTOBER
Q4: Can I have one sample to test?
A4: Yes, if you need,we’ll try to provide you one sample before bulk order.And some samples are free to you.
Q5: What is your warranty for your products?
A5: One year since delivery and 1% free spare parts(For speakers),And we can replace If the defective is confirmed to caused by our quality
WHO WE ARE
Welcome to Ningbo Central Star Electronic Technology Co., Ltd. A full line professional audio manufacturer located in Ningbo City, China, we provide our customers with user-friendly audio equipment that combines unmatched reliability with advanced performance features.
Our diverse product includes Speakers, Stands and Racks, Mixing Consoles and Cables & Connectors with associated accessories sold under our Accuracy Pro Audio™ brand.
THE REASON TO WORK WITH NINGBO CENTRAL STAR
- Ø Focus on details
- Ø Full line pro audio One-stop service
- Ø Well quality control and guarantee (Free spare parts)
- Ø Minimum OEM/ODM quantity request
Drawing on the strength of this organization and our passion for detail, Ningbo Central Star is committed to providing its customers with the quality products that represents the best value for our customers' audio investment. We are dedicated to your continued satisfaction.
SHOULD YOU HAVE ANY QUESTION OR CONCERN, PLEASE FEEL FREE TO CONTACT US @
Tel: 86-574-87402683
Fax: 86-574-87841171
Your attention will be highly appreciated!
