Help Center0.5mm Thickness Sound Insulation Materials Ceramic Fiber Paper
Related Products
-
Sound Insulation Ceramic Fiber PaperNegotiableMOQ: 1 Roll -
Sound Insulation Ceramic Fiber PaperNegotiableMOQ: 1 Roll
-
High Temperature Ceramic Fiber Paper GasketNegotiableMOQ: 10 Rolls
-
3mmx1220mmx20000mm 200kg/m3 Ceramic Fiber PaperNegotiableMOQ: 1 Roll
-
1260C Ceramic Fiber PaperNegotiableMOQ: 1 Roll

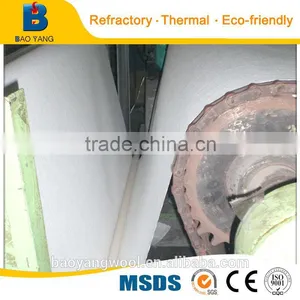

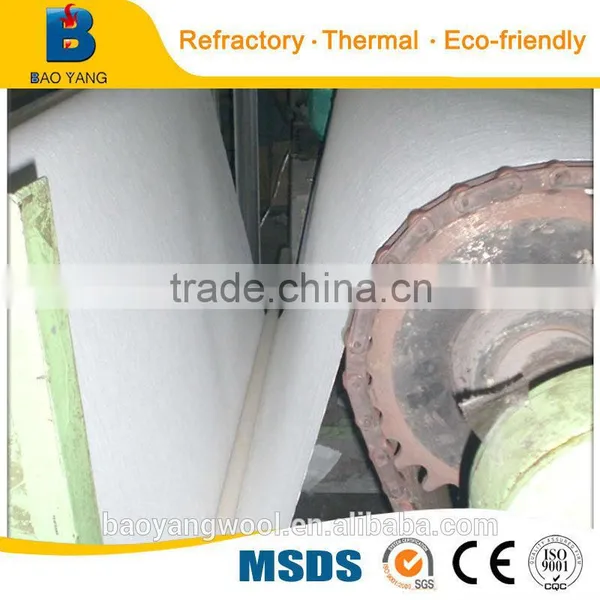

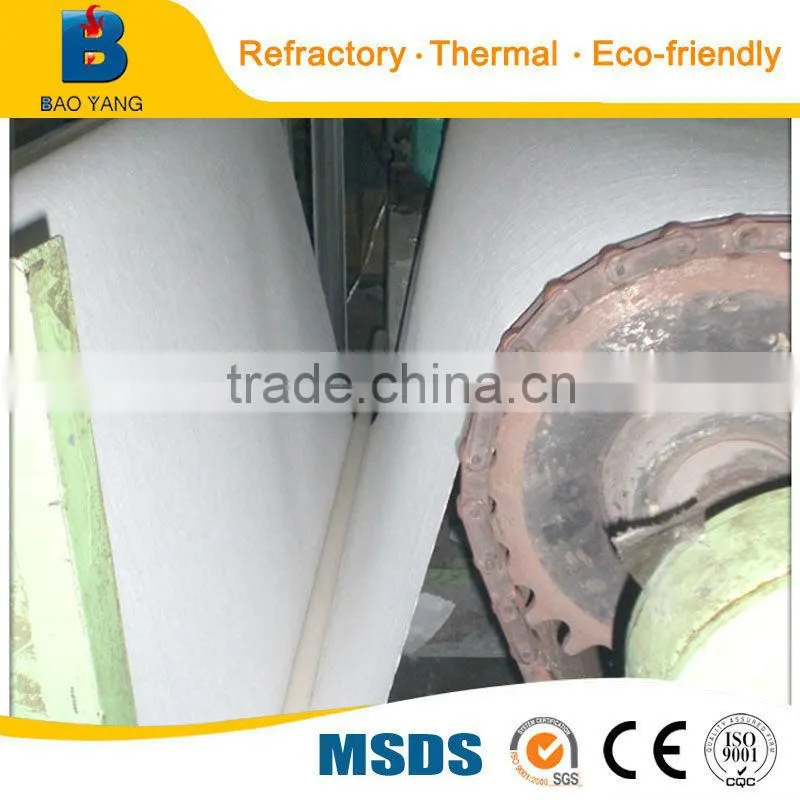

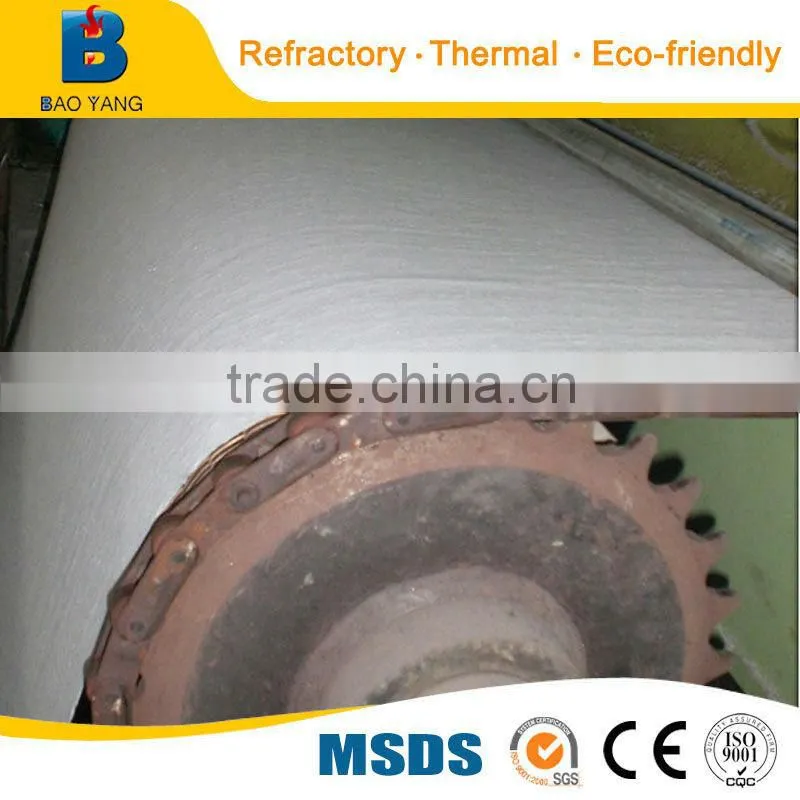

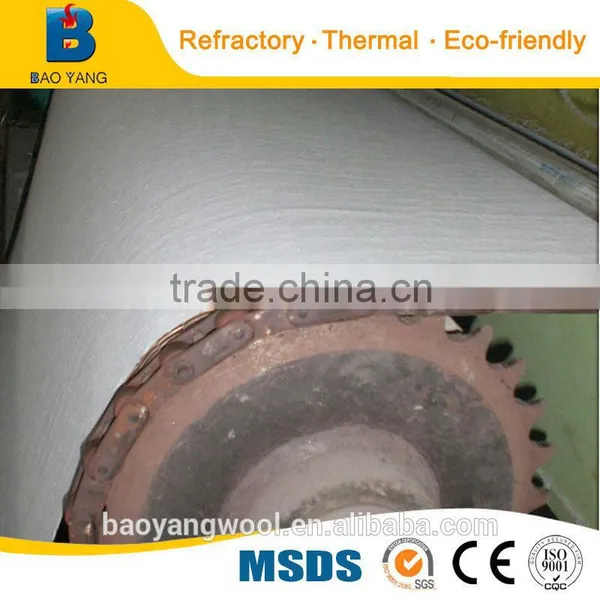

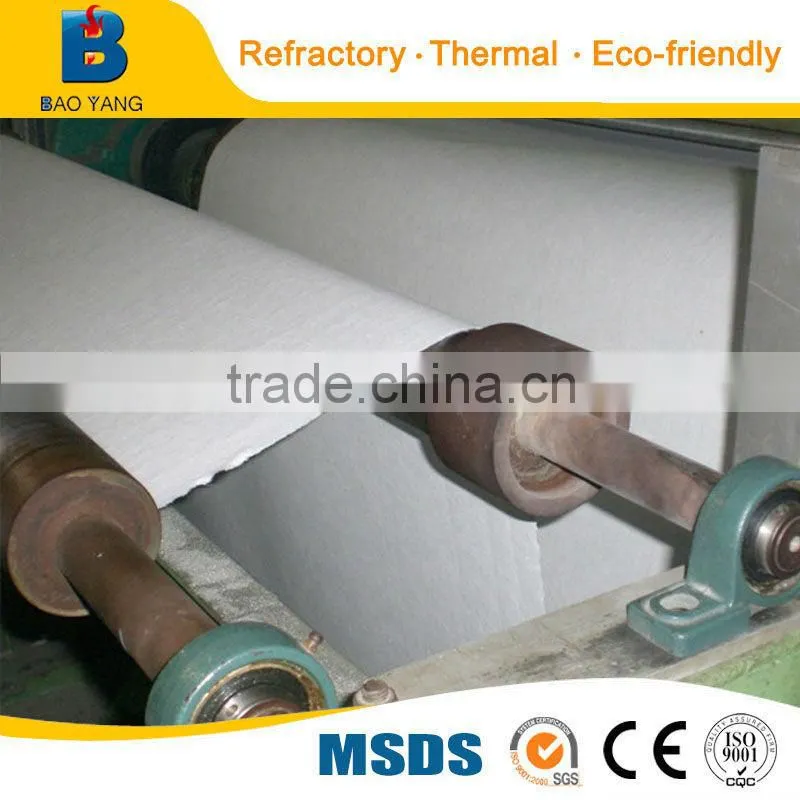

On the base of traditional process of paper making and paper machine,the mechanical product line of wet inorganic ceramic fiber paper is developed and established.
With the special ceramic fiber as raw material which contains little sediment,the high quality paper is made through slurrying,removing residue,mixing slurry,long-mesh shaping,vacuum dehydrating,drying,cutting and rolling etc.
Item |
Heat insulation Ceramic fiber paper |
Material |
Coal gangue |
Working Temp. |
1000Common Ceramic Fiber Paper--950C 1260Standard Ceramic Fiber Paper--1000C 1260High-purity Ceramic Fiber Paper --1100C 1360High Aluminum Ceramic Fiber Paper--1200C 1430Zirconia Ceramic Fiber Paper--1350C |
Specifications |
Density:165-220kg/m Thickness:0.5mm,1mm,2mm,3mm,5mm,6mm,10mm Width:500mm,600mm,610mm,1200mm,1220mm Standard size: 120000x610x0.5mm; 60000x610x1mm; 30000x610x2mm;20000x610x3mm; 12000x610x5mm; 10000x610x6mm |
Characteristics |
Low thermal capacity Low thermal conductivity Excellent electrical insulation properties Excellent machining performance High strength, tear resistance High flexibility Low shot content |
Applications |
Insulation material for instruments and heating element Insulation material for automobile and aerospace industry Expansion joints filling material Isolation for construction material, metallurgy and glass industries, Molten metal sealing gasket Fireproof material Substitute for glass fiber and asbestos fiber |
Package |

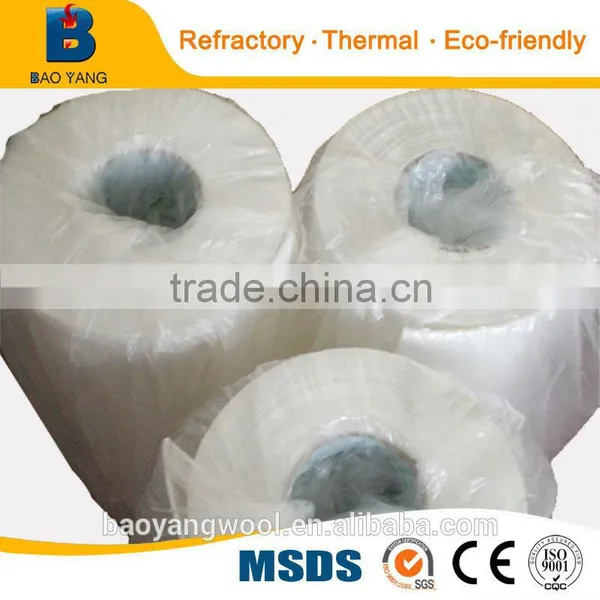

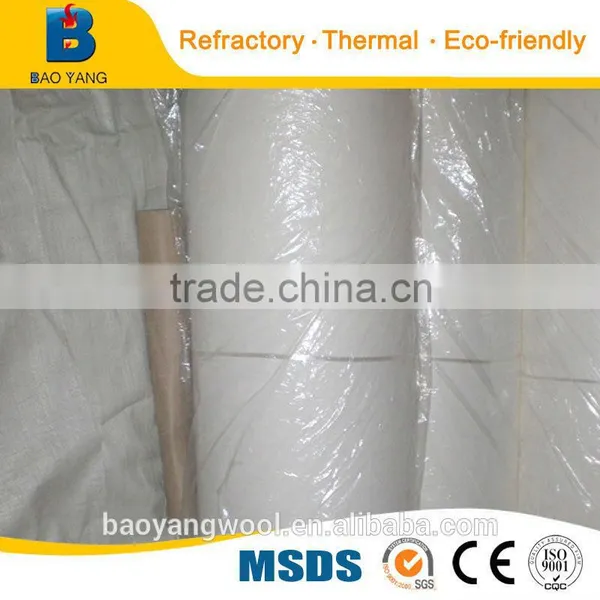

Inner plastic bag,outer carton box; |
Product Name |
1260 Standard |
1360 High-Alumina |
1430 Zirconia |
|
Temperature(°C) |
1260 |
1360 |
1430 |
|
Max Operation Temp(°C)/(F) |
1050(1922) |
1200(2192) |
1350(2462) |
|
Density(kg/m3) |
200±10 |
|||
Tensile Strength(Mpa) |
≥0.4 |
≥0.4 |
≥0.7 |
|
|
Chemical Composition% |
Al2O3 |
46 |
52-55 |
39-40 |
Al2O3+SiO2 |
97 |
99 |
- |
|
ZrO2 |
- |
- |
15-17 |
|
Fe2O3 |
1.0 |
0.2 |
0.2 |
|
Na2O+K2O |
0.5 |
0.2 |
||
