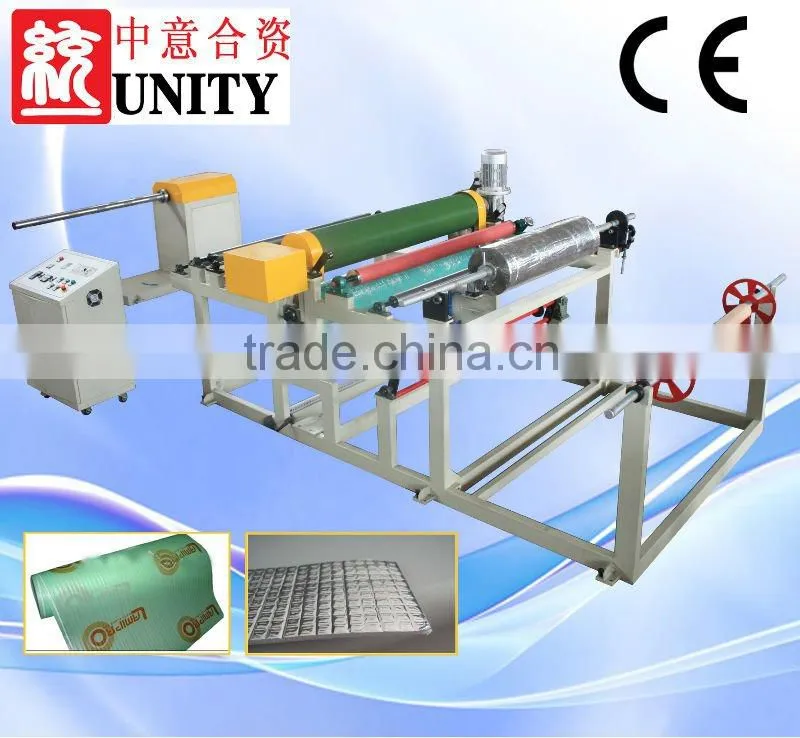

Help CenterEpe Foam Sheet Embossing Machine(TYF1500)
Related Products
-
Expanded pe Foam Sheet Laminating Machine (TYPEF-1500)US$ 8,000 - 30,000MOQ: 1 Set -
EPE Foam Film Laminator (TYPEF-1500)US$ 8,000 - 30,000MOQ: 1 Set
-
(CE APPROVED) EPE Foam Sheet LaminatorUS$ 8,000 - 30,000MOQ: 1 Set
-
EPE Foamed Fruit Packing Production Line(TYEPEW-75CE APPROVED)US$ 23,750 - 27,188MOQ: 1 Set
-
EPE Foam Sheet Laminating MachineNegotiableMOQ: 1 Set
Specifications
pe foam sheet embossing machine can increase intensity, waterproof smooth of foam sheet which can be put under floorce certi
pe foam sheet laminating machine is a deeply processing equipment of EPE foam sheet/film products, mainly used for the tectorial surface of EPE foam sheet/film. The material can be PE film, plated Aluminum film plastic-coated. Paper plastic-coated fabric and so on.
The machine can increase intensity, waterproof smooth of foam sheet, and can print character, picture, improving the products, is widely used for the packing of box lining, life vest, wooden floor cushion. Car Havelock, Motor adumbral cushion, electronic appliance, high-top china and so on.
Main Technical parameters:
Production Capacity:1500-3600m/h
Width of product(Max):1500mm
Overall size: 5200mm×2350mm×1350mm
Mounted power:15KW
Total weight:1.5T
Used Compressed Air, Compressed air: 0.2~0.4 m3/min,0.6Mpa
Main Technical Parameters
Model |
Unit |
GBLPEF-1200 |
GBLPEF-1500 |
GBLPEF-1800 |
Width of product |
mm |
1200 |
1500 |
1800 |
Heating |
|
Electric heating |
||
Driving power |
KW |
1.5 |
2.2 |
3 |
Mounted power |
KW |
10 |
15 |
20 |
Overall size |
m |
4.5×1.8×1.8 |
4.5×2.2×2 |
5×2.4×2.2 |
Total weight |
T |
1.5 |
2 |
2.5 |
