1260 STD Ceramic Fiber Blanket

Name: 1260 STD Ceramic Fiber Blanket
Brand: BAOYANGWOOL
SKU: 102220833

Negotiable MOQ: 1 Roll (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

BAOYANGWOOL

Model Number:

1260STD

Zibo Baoyang Fireproof Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name BAOYANGWOOL

Model Number 1260STD

Application thermal insulation

Grade ST (Standard)

Dimensions As the customers'requirement

Working Temperature 1000

Fiber Diameter 3-4.5

Thermal Conductivity 0.22

Shrinkage (1800℉, 3h) -3

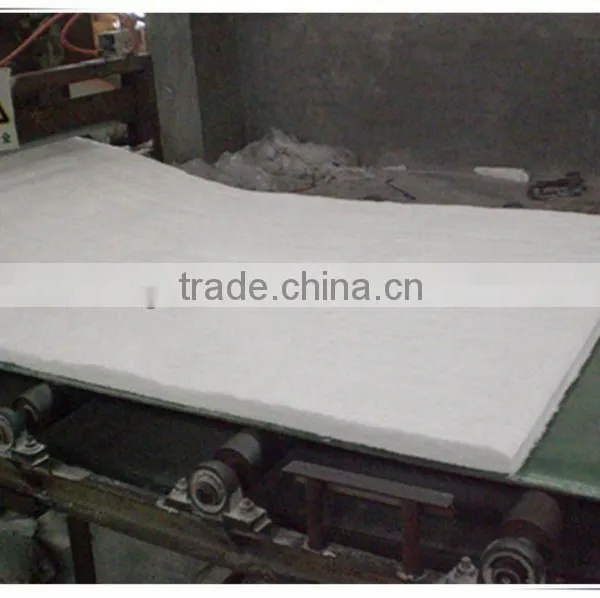

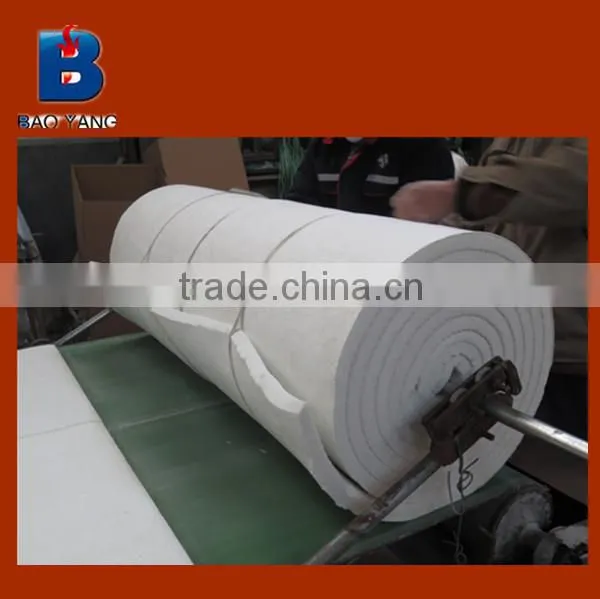

The pricture shows the Spun ceramic fiber blanket on the production line.

Some exact information of it as below:

Item:ceramic fiber blanket(Spun)

Temp.1260C Degree

Size:25x610x7200mm

Density:128kg/m3

Color:pure white

Packing:inner plastic bags;outer carton box/weave bags

Application range:

1,Industrial building material furnace, heating plant and high-temperature tube wall liner.

2, Electric power boiler, turbomachine and nuclear electricity heat insulation

3, Wall liners for industrial high-temperature conversion unit and heating equipment

4, Fireproofing and heat insulation of high-rise building

5,Heat insulation of furnace door and head cover

6,High-temperature filtrating material

Product Item		COM	STANDARD	HP	HA	HAZ	HZ
Specification Tem(^OC)		1100	1260	1260	1360	1360	1430
working Tem(^OC)		<1000	1050	1100	1200	1200	1350
Color		White	Pure white	Pure white	Pure white	Pure white	Pure white
Density kg/m³		96 128	96 128	96 128	96 128	96 128	96 128
Rate of liner%24h,density128 kg/m³		-4 1000^OC	-3 1000^OC	-3 1100^OC	-3 1250^OC	-3 1250^OC	-3 1350^OC
Rate of thermal conductivityW/n.kdensity 128 kg/m³		0.09400^OC 0.176(800^OC)	0.09400^OC 0.176(800^OC)	0.09400^OC 0.176(800^OC) 0.22(1000^OC)	0.132(600^OC) 0.22(1000^OC)	0.132(600^OC) 0.22(1000^OC)	0.76(600^OC) 0.22(1000^OC)
Tensile strength(Mpa) (density128 kg/m³)		0.080.12	0.080.12	0.080.12	0.080.12	0.080.12	0.080.12
Chemi- Cal com posi tion (%)	AL₂O₃	42-44	45-46	47-49	52-55	45-46	39-40
	AL₂O₃₊SIO₂	96	97	99	99	--	--
	AL₂O₃₊SIO₂+ ZrO₂	--	--	--	--	99	99
	ZrO₂	--	--	--	--	5-7	15-17
	Fe₂O₃	<1.2	<1.0	0.2	0.2	0.2	0.2
	Na2O3+K2O	≤0.5	≤0.5	0.2	0.2	0.2	0.2
Sizemm		Specification:7200X610X10-50mm;others are made by the customers'requirement.
