Specifications
EPE foaming sheet manufacturera. sheet thickness:2-16mm
b. sheet width:1000-2000mm
c. raw material:LDPE
d.CE

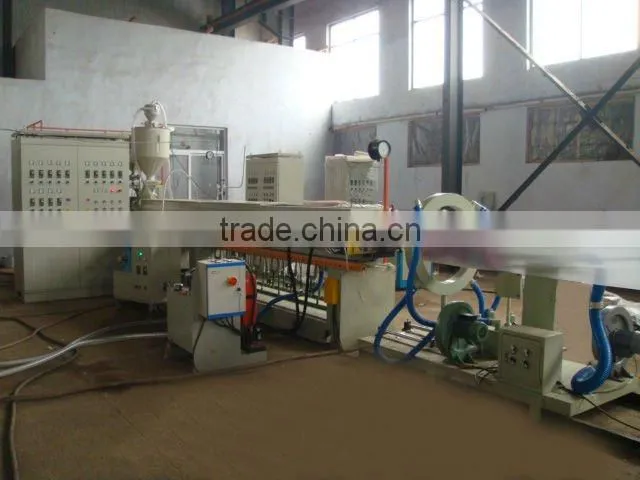

EPE foaming sheet manufacturer
Feature & applications
1. PE foam and related products are made from PE resin and it is expanded and formed into shapes by being heated and extruded. And it is easy to be decompounded and environment friendly.
2. Its key function is cushion protecting and warmth reserving.
3. Nowadays it is the most popularly used for modern batch production products, especially export packaging industry, including electronic industry (such as PC computer, laptop, electronic chips and parts, inverter, TV, air conditioner, refrigerator), furniture, glassware, garments, metal parts, etc.
4. Whoever aims at modern packaging and export, he has to use PE foam for the following reasons: Packaging with air bubble film, EPS and plastic film is forbidden in many countries. Paper packaging is so expensive.
5. PE foam products have quite a few varieties: Sheets for direct wrapping and to make bags; PE sheet may be coated with plastic film, craft paper and aluminum foil. It may be laminated (by electricity or LPG flame) into thick blocks. Then cut them to make different containers or frames. PE fruit net is direct for fruit and small matter's wrapping. If you add special molds, you may make different profiles for door hinges and furniture packing.
Advantages:
1. Simplest operation: With die pressure and temperature display.
2. It may do foaming by 100% LPG gas or butane gas, both available.
3. Unique gearbox with water cooling by a specialized giant gearbox supplier to ensure the performance stable even if continuously working for a few days, the cover still don’t become hot.
4. Unique apply screw tandem to ensure good heating, easy operation and easy maintenance. The extruded sheets are of very equal waves or very smooth sheets. Both the screw and cylinder are made of 38CrMoALA steel and nitride. Cooling: cylinder controlled circulation water for cooling with a standby manual water supply system.
5. Independent heating zones with solid relay and PID for temperature control, so the temperatures are well controlled. The actual temperature error is really within +/- 1 degree.
Applications:

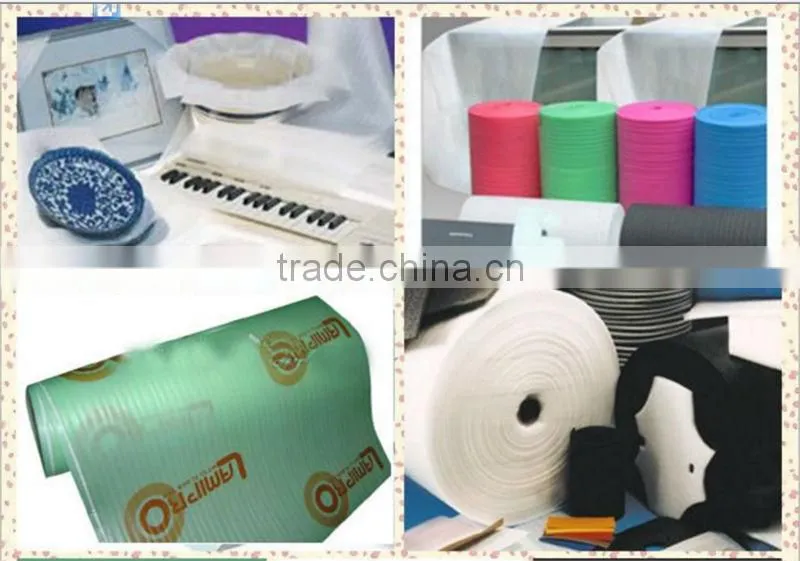

1) Cushioning and packaging materials for electronic equipment, potteries and
glassware
2) Construction-roof insulation, expansion joints, anti-vibration in roofs, walls,tunnels,
bridges and highways
3) Insulation of window, air conditioner ducting, industrial chillers, cold storage,
refrigerated vans, industrial refrigerators and water pipes
4) Education materials, decorative materials
5) Sports mats, such as wrestling, judo, gym and exercise mats
6) Body protective materials, such as helmets, leg and thigh guards, arm, elbow and
shoulder pads, life saving jackets, and gloves
Main Technical Parameters
Model |
Unit |
TYEPE-90 |
TYEPE-105 |
TYEPE-120 |
TYEPE-135 |
TYEPE-150 |
TYEPE-170 |
TYEPE-200 |
Screw diameter L/D |
|
90/55:1 |
105/55:1 |
120/55:1 |
135/55:1 |
150/55:1 |
170/55:1 |
200/55:1 |
Screw speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
Foam rate |
|
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
Width of product |
mm |
1000-1400 |
1000-1500 |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
Thickness of product |
mm |
0.5-4.5 |
0.5-6.5 |
0.8-8 |
1-10 |
1-12 |
2-16 |
3-20 |
Cooling method |
Water cooling |
|||||||
Capacity |
Kg/h |
70-110 |
80-120 |
120-200 |
200-300 |
260-400 |
400-500 |
500-650 |
Installed capacity |
kw |
110 |
130 |
170 |
200 |
240 |
285 |
350 |
Dimensions(L×W×H) |
m |
22×2.3×2.2 |
23×2.3×2.2 |
25×2.3×2.2 |
28×2.3×2.2 |
30×2.3×2.2 |
32×2.3×2.2 |
38×2.8×3.8 |
Total weight |
t |
8.5 |
9 |
12 |
13 |
15 |
17 |
20 |
