Home > Products > Linkable Dimmable Tri-proof Light > Hot CE ROHS Certificated IP65 Wide Angle led emergency tri-proof light
Hot CE ROHS Certificated IP65 Wide Angle led emergency tri-proof light
- 10000 Piece / Pieces per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | RYL | Model Number: | 062 -indoor led fixture |
Product Description

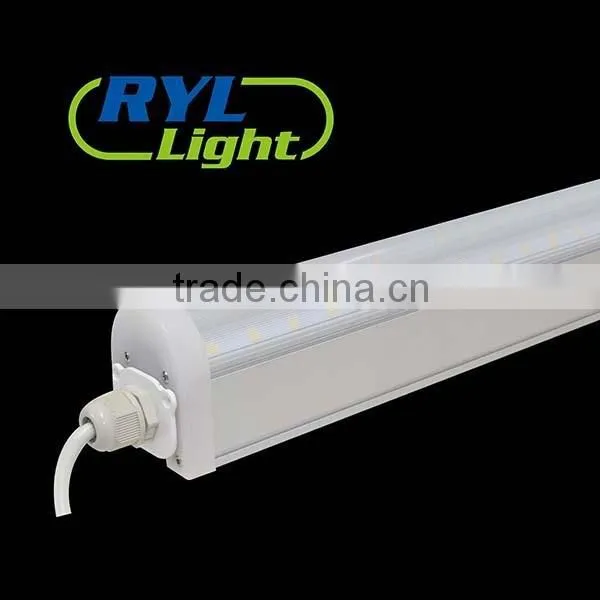

Hot CE ROHS Certificated IP65 Wide Angle led emergency tri-proof light
1. 125lm/w indoor led fixture
2. IP65,tri proof
3. Gapless/cable linkable
Features:
- Unique structure and self-designed driver(Rubycon YXF capacitor)
- IP65, suitable for use in harsh surroundings
- 1200mmfor 36w, 1500mm for 45w/65w, or customized
- Wide voltage: 90-305VAC
- high efficency 105-120lm/w
- Epistar2835 LEDs or Samsung5630 LEDs
- CE, RoHS for the light, VDE and UL certified plug.
- Installation methods: Flush/Surface mounting, suspending or customized
- Perfect Interconnection: gapless interconnection/cable interconnection.
- Dimming: 0-10V dimming optional
- Great heat dissipation, working temperature rise is only 20°C.
- Environment friendly & energy saving.
- No mercury, no UV, no noise, no flicker, eyes protection.
- Instant start, transient response, without delay, without damage to the frequent switching.
- Built with special LED driver with constant current insulate supply to ensure longer operating life and to minimize brightness decline due to over-driven.
- Perfect housing: aluminum & PC, frosted cover.
LED type | Type No. | Length | Power | LED Qty | Lumen | Beam Angle | CCT |
Samsung | Standard: 95-100lm/W (5000K Striped-Frosted cover) | ||||||
062-222/227 | 1200mm | 36W | 81pcs | 3600lm | 120º/160º | 3000K | |
062-224/228 | 1500mm | 45W | 108pcs | 4500lm | 120º/160º | ||
062-203/206 | 1500mm | 65W | 162pcs | 6500lm | 120º/160º | ||
Premium: 115-120lm/W (5000K Striped-Frosted cover) | |||||||
062-223/209 | 1200mm | 36W | 162pcs | 4350lm | 120º/160º | 3000K | |
062-229/230 | 1500mm | 45W | 216pcs | 5400lm | 120º/160º | ||
062-204/205 | 1500mm | 65W | 324pcs | 7800lm | 120º/160º | ||
Epistar | Standard: 80-85lm/W (5000K Striped-Frosted cover) | ||||||
062-213/215 | 1200mm | 36W | 162pcs | 3060lm | 120º/160º | 3000K | |
062-217/218 | 1500mm | 45W | 216pcs | 3825lm | 120º/160º | ||
062-219/220 | 1500mm | 65W | 297pcs | 5525lm | 120º/160º | ||
Premium: 105-110lm/W (5000K Striped-Frosted cover) | |||||||
062-214/216 | 1200mm | 36W | 351pcs | 3960lm | 120º/160º | 3000K | |
062-211/212 | 1500mm | 45W | 432pcs | 4950lm | 120º/160º | ||
062-210/221 | 1500mm | 65W | 621pcs | 7150lm | 120º/160º |
Product Description:
Fixture I: with female and male plugs, can be gapless/cable linked.
accessories needed (interconnection cable & power cable & endcap)
Installaton ways: Flush mounting clips/anti-theft installaton clips/Suspending kits (optional)
can not be gapless linked, only can be cable linked.
accessories needed (wire cable by terminal interconnection)
062 for Emergency lighting (Emergency Fuction for 062 are available)
Installation Way:
Package:
Length | N.W./Light(kgs) | Pcs/ctn | G.W./ctn(kgs) | Meas.(mm) |
600mm | 1.00 | 40 | 48 | 1440*460*275 |
1200mm | 1.48 | 20 | 38 | 1440*460*275 |
1500mm | 2.28 | 20 | 58 | 1740*460*275 |
Application:
Fairs we involved:
HKTDC Hong Kong International Lighting Fair 2014 (Spring Edition) Our booth No.: 3CON-097
HKTDC Hong Kong International Lighting Fair 2013 (Autumn Edition) Our Booth No. :1B-E36
The 113th Canton Fair
