Safety working IP65 IK08 Tri-proof LED Linear Light by ceiling hanging

FOB Price

USD $10 - $60 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Qingdao Shanghai Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Henan, China

Brand Name:

RYL

Model Number:

062

Product Description

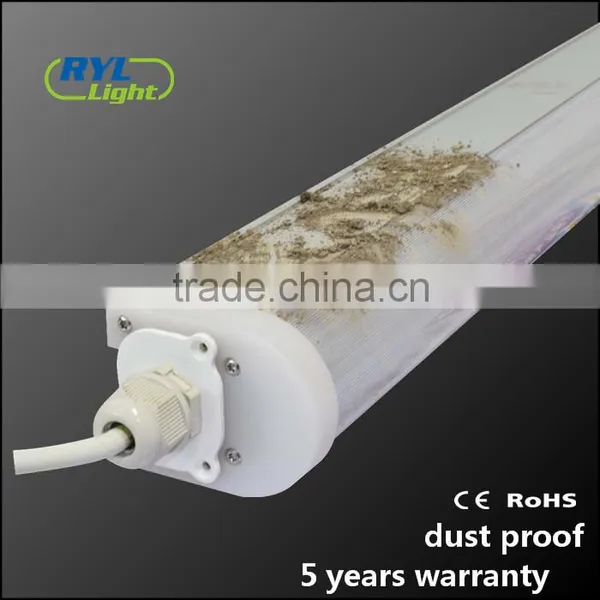

High lumen 65w led pendant linear light for supermarket lighting

1. 125lm/w
2. IP65,tri proof led linear light

3. Gapless or cable linked

Features:

Unique structure and self-designed driver(Rubycon YXF capacitor)
IP65, suitable for use in harsh surroundings
1200mmfor 36w, 1500mm for 45w/65w, or customized
Wide voltage: 90-305VAC
high efficency 105-120lm/w
Epistar2835 LEDs or Samsung5630 LEDs
Installation methods: Flush/Surface mounting, suspending or customized

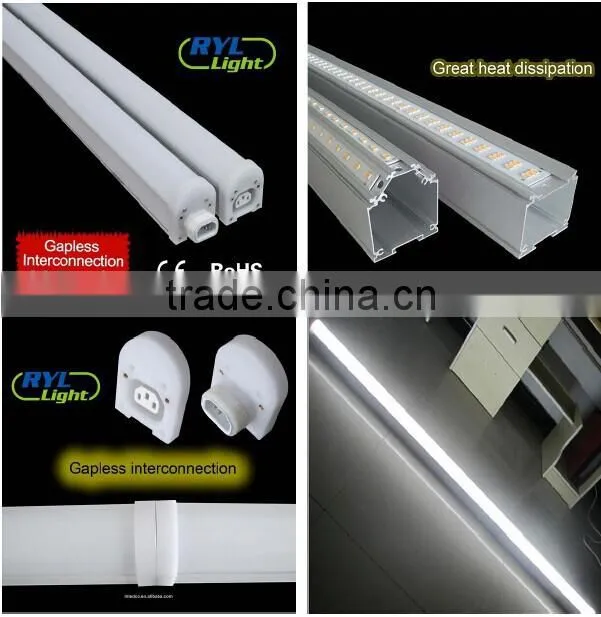

Perfect Interconnection: gapless interconnection/cable interconnection.
Dimming: 0-10V dimming optional
Great heat dissipation, working temperature rise is only 20°C.
Environment friendly & energy saving.
No mercury, no UV, no noise, no flicker, eyes protection.
Instant start, transient response, without delay, without damage to the frequent switching.
Built with special LED driver with constant current insulate supply to ensure longer operating life and to minimize brightness decline due to over-driven.
Perfect housing: aluminum & PC, frosted cover.

Datasheet:

LED type	Type No.	Length	Power	LED Qty	Lumen	Beam Angle	CCT
Samsung 5630	Standard: 95-100lm/W (5000K Striped-Frosted cover)
	062-222/227	1200mm	36W	81pcs	3600lm	120º/160º	3000K 4000K 5000K 6500K
	062-224/228	1500mm	45W	108pcs	4500lm	120º/160º
	062-203/206	1500mm	65W	162pcs	6500lm	120º/160º
	Premium: 115-120lm/W (5000K Striped-Frosted cover)
	062-223/209	1200mm	36W	162pcs	4350lm	120º/160º	3000K 4000K 5000K 6500K
	062-229/230	1500mm	45W	216pcs	5400lm	120º/160º
	062-204/205	1500mm	65W	324pcs	7800lm	120º/160º
Epistar 2835	Standard: 80-85lm/W (5000K Striped-Frosted cover)
	062-213/215	1200mm	36W	162pcs	3060lm	120º/160º	3000K 4000K 5000K 6500K
	062-217/218	1500mm	45W	216pcs	3825lm	120º/160º
	062-219/220	1500mm	65W	297pcs	5525lm	120º/160º
	Premium: 105-110lm/W (5000K Striped-Frosted cover)
	062-214/216	1200mm	36W	351pcs	3960lm	120º/160º	3000K 4000K 5000K 6500K
	062-211/212	1500mm	45W	432pcs	4950lm	120º/160º
	062-210/221	1500mm	65W	621pcs	7150lm	120º/160º

Product Description:

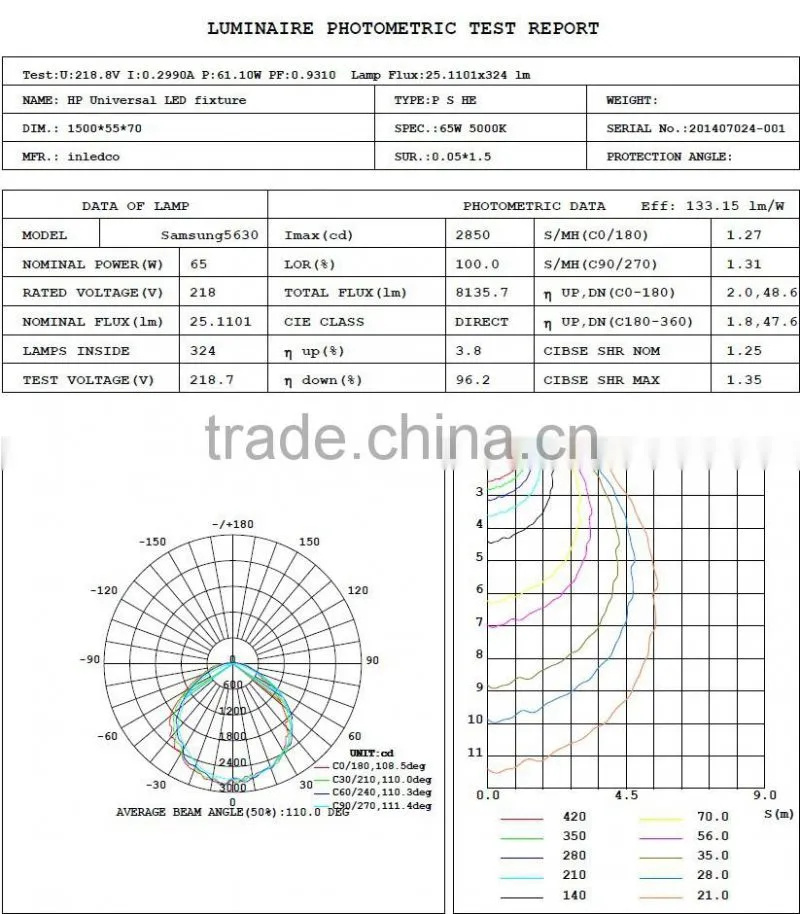

Test Report:

Installation Way:

Application:

Fairs we involved:

HKTDC Hong Kong International Lighting Fair 2014 (Spring Edition) Our booth No.: 3CON-097
HKTDC Hong Kong International Lighting Fair 2013 (Autumn Edition) Our Booth No. :1B-E36
The 113th Canton Fair
