Help Center12V Led Chip 30W Led Lens
US$ 1.5 - 2
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TDS
Model Number:
TDS-1044
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30 Degree Wall Washer Led Lens 22mmUS$ 0.05 - 0.08MOQ: 200 Pieces -
Borosilicate 100mm Peanut Shape Led Glass LensUS$ 2 - 2.8MOQ: 5 Pieces
-
100W 200W Led Optical Lens With 60 Degree ReflectorUS$ 1.5 - 2MOQ: 5 Pieces
-
Led Lens in 35.8mm With 60 Degree Viewing AngleUS$ 0.12 - 0.18MOQ: 200 Pieces
-
Square Shape RGB Color Mixture Led Lens 24mm With 20x40 DegreeUS$ 0.05 - 0.08MOQ: 200 Pieces
Place of Origin
Jiangsu, China
Brand Name
TDS
Model Number
TDS-1044
Material
Other, Glass, BK7 Glass / borosilicate / PMMA
Usage
Other, Street light / bay light
Structure
Plano-convex
Shape
Aspheric
Product Description
- TDS Has the Lens from 1W to 300W Lens which is mainly for our LED.
- we have 13mm - 22mm - 23mm PMMA lens for 1-5W LED in round / peanut / reflector / holder
- We also have 10mm to 110mm Glass lens for 1W - 200W High Power LED
- We can design / OEM the lens you need with drawing.
LENS FOR STREET LIGHTING 10-20W 30Watt~100 Watt LED
- Material :BK7 / K9 / Borosilicate glass
- Product name: Led lens for 5-100W with reflector
- Quality : clear and transparent , no bubble and impurity inside.
- Light transmittance : 93~94%
- Working temperature : -50~550 ℃
- Focus length: 30
- Application: 20W 30W 50W 60W 80W 100W high power LED
- Beam angle: 60° 90°degree
- GW:39g/PCS
- Specifications:
- Assembled size:
- Diameter:53mm Height:33mm
- Viewing angle: 60-90 degree
- Application: 20W 30W 50W 60W 80W 100W High power LED
Material Show
Application
This item is mainly used for street lighting, can get a batwing type lighting pattern. And offer uniform
lighting on the ground, which is very important for traffic.
We have applied this lens for many important road lighting projects

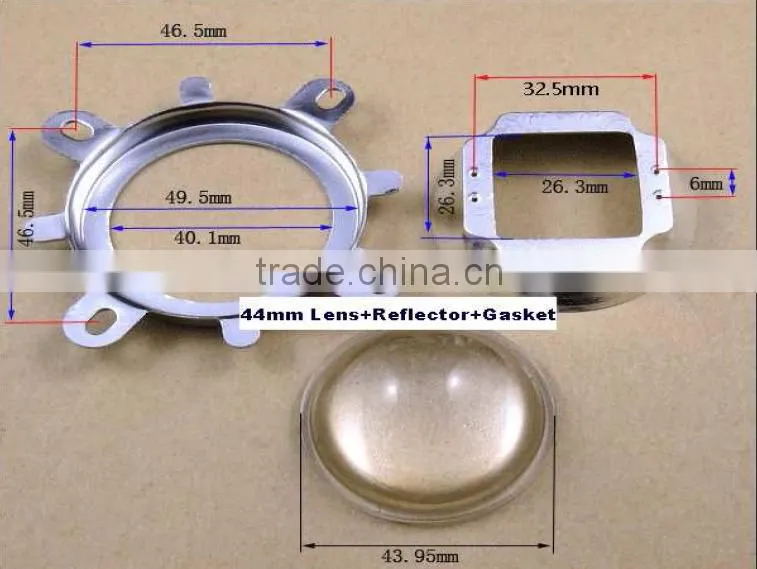

Lens Drawing
