Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > 52mm Borosilicate / BK7 Glass Optical Lens
US$ 1 - 2
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TDS
Model Number:
TDS-LENS
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
29mm 31mm 36mm PMMA Led Optical Lens ReflectorUS$ 0.12 - 0.18MOQ: 200 Pieces -
35mm*25mm 1W Single Reflector for Wall Washer 1 - 3W Led DiodeUS$ 0.05 - 0.12MOQ: 200 Pieces
-
1W 3W RGB Color Mixed LensUS$ 0.05 - 0.08MOQ: 200 Pieces
-
22mm 1W Led Lens With Stripe Surface for RGB Wall WasherUS$ 0.05 - 0.08MOQ: 200 Pieces
-
35.8mm 36mm 38mm PMMA Led Optical Lens ReflectorUS$ 0.12 - 0.18MOQ: 200 Pieces
Place of Origin
Jiangsu, China
Brand Name
TDS
Model Number
TDS-LENS
Material
Other, Glass, BK7 Glass / borosilicate / PMMA
Usage
Optical
Structure
Plano-convex
Shape
Aspheric

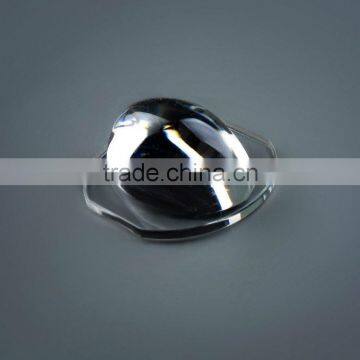

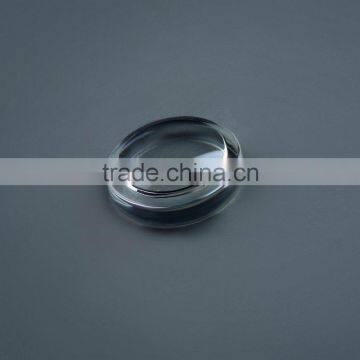

Product Description
- TDS Has the Lens from 1W to 300W Lens which is mainly for our LED.
- we have 13mm - 22mm - 23mm PMMA lens for 1-5W LED in round / peanut / reflector / holder
- We also have 10mm to 110mm Glass lens for 1W - 200W High Power LED
- We can design / OEM the lens you need with drawing.
- Made of borosilicate glass
- refractive index : 1.474
- Never get yellow comparing with PMMA material
- matching gasket and Stainless steel holder,reflector which make installation easily
- Please contact us and tell us the lens data you need.
Lens Chart

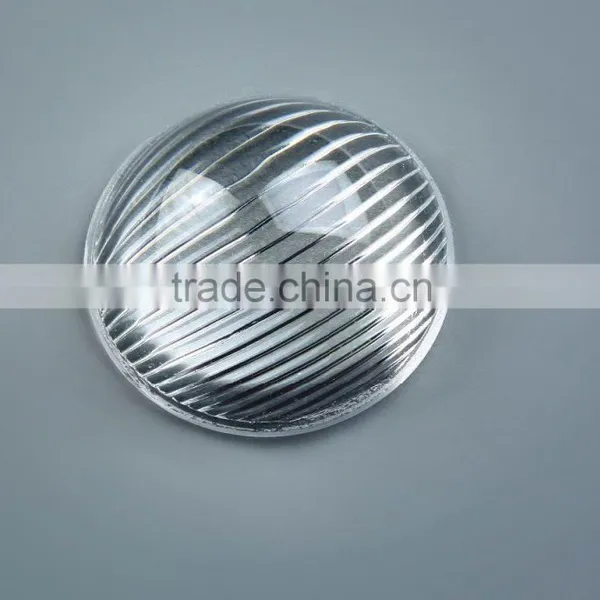

The charge contains Convex Lens / Concave / Aspheric / spherical / stripe / pearl Lens. For more, please contact us.
| NO. | Model | Height(mm)) | Stage Height(mm) | Diameter(mm) | |
| 1 | TDS-D21 | 7.04 | 2.62 | 20.9 | |
| 2 | TDS-D22-001 | 7.45 | 2.25 | 21.58 | |
| 3 | TDS-D22-002 | 7.5 | 2.2 | 21.45 | |
| 4 | TDS-D22-003 | 5.4 | 2.25 | 21.78 | |
| 5 | TDS-D28-001 | 10 | 2.5 | 27.85 | |
| 6 | TDS-D28-002 | 7.5 | 2.4 | 28 | |
| 7 | TDS-D30-001 | 9.9 | 2.7 | 29.5 | |
| 8 | TDS-D30-002 | 19.4 | 2.8 | 30 | |
| 9 | TDS-D32 | 8 | 2.5 | 32 | |
| 10 | TDS-D34 | 4.7 | 2.6 | 34 | |
| 11 | TDS-D38 | 2 | 2 | 38 | |
| 12 | TDS-D43-001 | 12 | 2.57 | 43 | |
| 13 | TDS-D43-002 | 15 | 2.57 | 43 | |
| 14 | TDS-D44 | 20 | 3.1 | 44 | |
| 15 | TDS-D45-001 | 15 | 3 | 44.5 | |
| 16 | TDS-D45-002 | 20 | 3 | 44.5 | |
| 17 | TDS-D45-003 | 19 | 2 | 45 | |
| 18 | TDS-D48 | 21.2 | 3 | 47.4 | |
| 19 | TDS-D49 | 23.1 | 3.3 | 48.7 | |
| 20 | TDS-D50-001 | 22 | 2 | 50 | |
| 21 | TDS-D50-002 | 18.5 | 2.6 | 50.8 | |
| 22 | TDS-D50-003 | 21.1 | 3.1 | 50.2 | |
| 23 | TDS-D50-004 | 22 | 3 | 50 | |
| 24 | TDS-D50-005 | 21 | 3 | 50.3 | |
| 25 | TDS-D50-006 | 22.5 | 2.5 | 50 | |
| 26 | TDS-D50-007 | 22 | 3 | 50 | |
| 27 | TDS-D50-008 | 18.5 | 2.5 | 50 | |
| 28 | TDS-D50-009 | 22.5 | 2.5 | ||
| 29 | TDS-D51 | 21 | 3 | 51 | |
| 30 | TDS-D52 | 24 | 3 | ||
| 31 | TDS-D54 | 21 | 3 | 54 | |
| 32 | TDS-D56 | 22.5 | 3.1 | 56.5 | |
| 33 | TDS-D63-001 | 10 | 3 | 63 | |
| 34 | TDS-D63-002 | 25.25 | 3.25 | 63.1 | |
| 35 | TDS-D63-003 | 24 | 3.3 | 63.2 | |
| 36 | TDS-D63-004 | 23.5 | 3.1 | 62.7 | |
| 37 | TDS-D63-005 | 24.8 | 3.2 | 62.8 | |
| 38 | TDS-D64-001 | 25.7 | 3.2 | 63.5 | |
| 39 | TDS-D64-002 | 25 | 3 | 64 | |
| 40 | TDS-D64-003 | 25.25 | 3.2 | 63.6 | |
| 41 | TDS-D65 | 24.2 | 3.4 | 65.1 | |
| 42 | TDS-D66-001 | 28.5 | 3.1 | 66.2 | |
| 43 | TDS-D66-002 | 24 | 3.4 | 66.15 | |
| 44 | TDS-D66-003 | 24 | 3.15 | 66.35 | |
| 45 | TDS-D67-001 | 23.5 | 3 | 67 | |
| 46 | TDS-D67-002 | 24.3 | 3.5 | 66.7 | |
| 47 | TDS-D67-003 | 23 | 3 | 66.5 | |
| 48 | TDS-D67-004 | 23 | 3 | 66.8 | |
| 49 | TDS-D70 | 41.6 | 4 | 70.2 | |
| 50 | TDS-D74-001 | 23.3 | 3.45 | 74 | |
| 51 | TDS-D74-002 | 22.5 | 3.4 | 74 | |
| 52 | TDS-D75-001 | 24 | 3.5 | 74 | |
| 53 | TDS-D75-002 | 24.25 | 3.65 | 74.7 | |
| 54 | TDS-D78-001 | 34 | 4 | 78.25 | |
| 55 | TDS-D78-002 | 33.4 | 3.5 | 78 | |
| 56 | TDS-D78-003 | 33 | 3 | 78 | |
| 57 | TDS-D100 | 22.2 | 4.4 | 100 | |

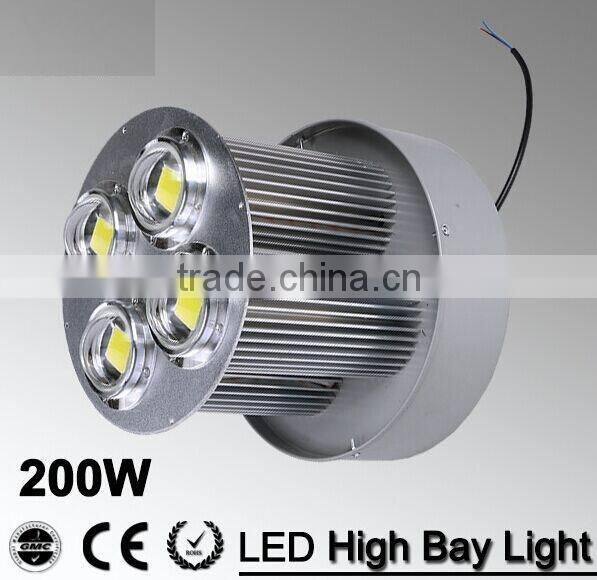

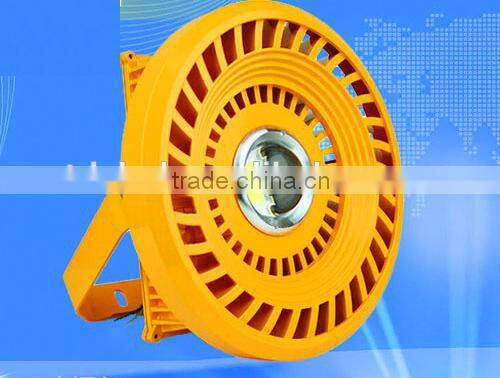

Application

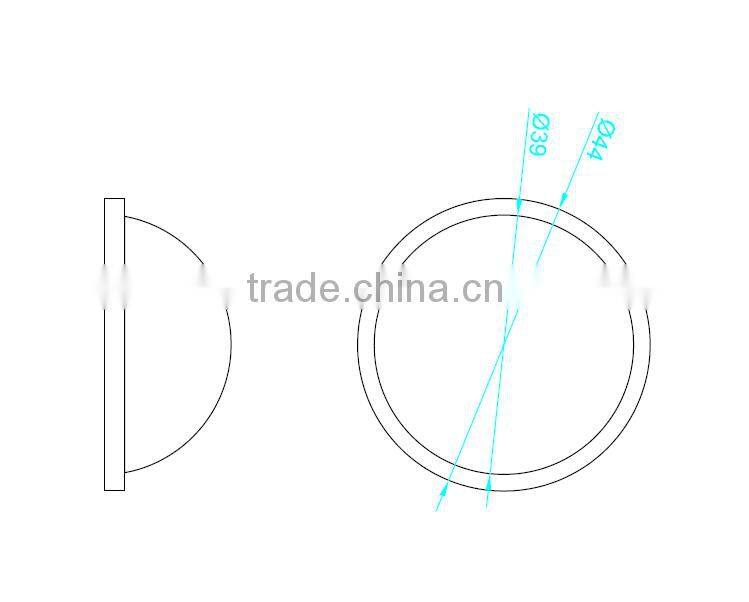

Lens Drawing
Take 44mm Led lens drawing for example:

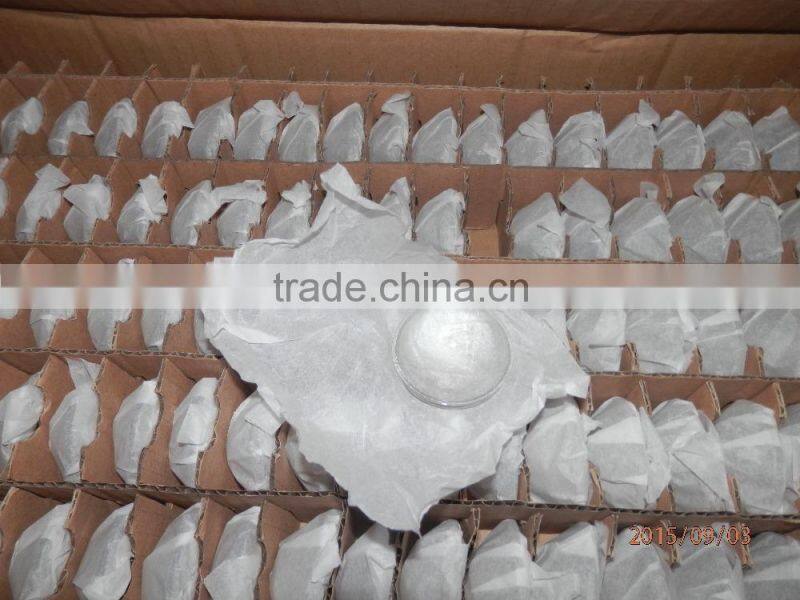

Packaging & Shipping
